A38

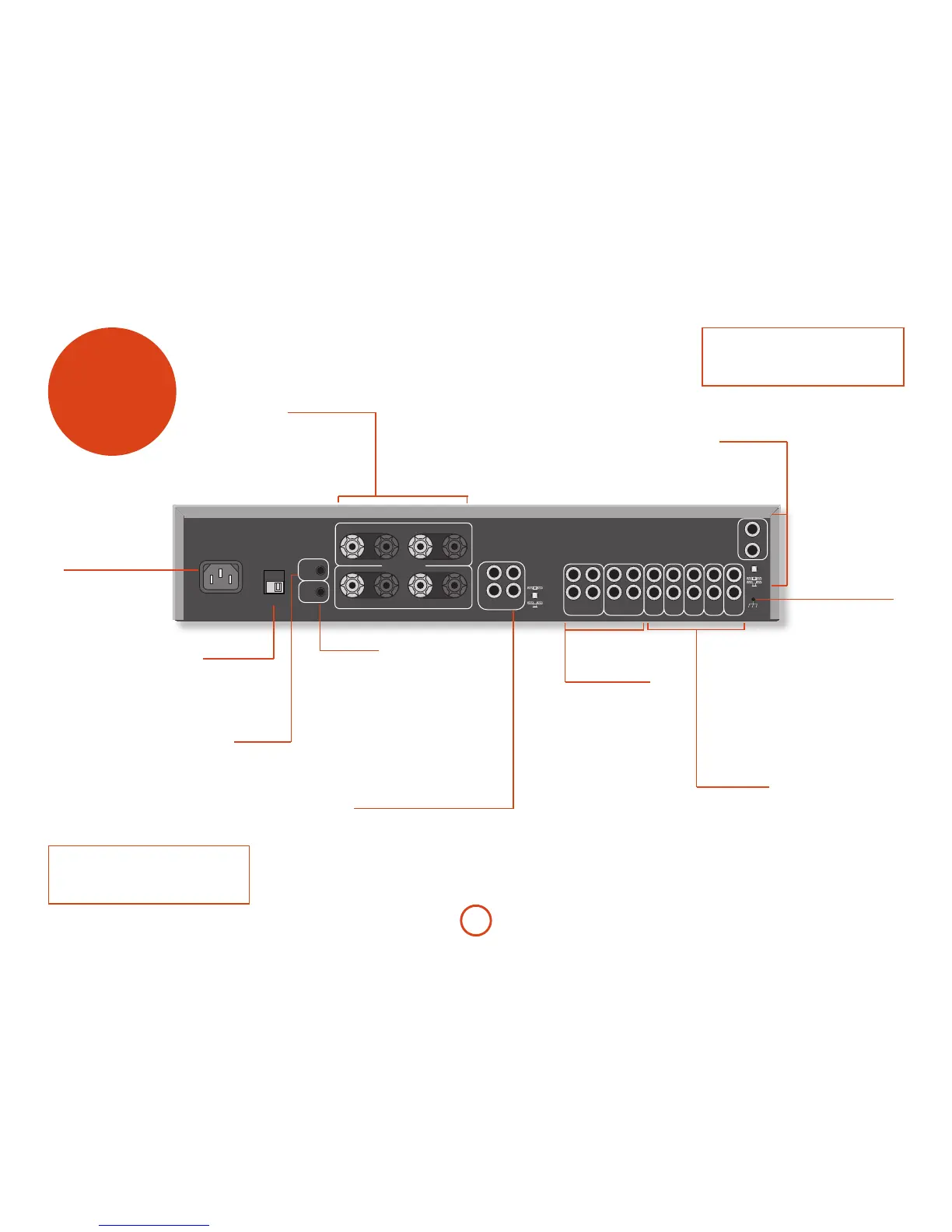

connections
Phono input
A high quality phono input is available
as an optional extra to the A38.
See page 7 for more information.
Audio inputs
ese inputs are intended for use with your audio
equipment. e labels above the inputs give suggested
uses, but all 5 inputs have the same characteristics (all
are line-level inputs) and any suitable device may be
connected to any input. (Note, however, that the name
of the input shown on the front-panel display cannot
be changed.)
See page 7 for more information.
Pre-/power-amplier connections
ese sockets are only used if you are using the A38
as a pre-amp, for example, when using the A38 in
conjunction with a P38 in a bi-amplied system.
See page 9 for more information.
NOTE
Please read the ‘Placing the unit’, ‘Power’ and
‘Interconnect cables’ sections on page 5 before
connecting up your A38 integrated amplier!
Speaker terminals
e A38 is equipped with two pairs of speaker
terminals. See page 8 for information on
connecting loudspeakers.
Recording loops
e A38 is equipped with two
recording loops, for use with
recording devices (cassette
decks, CD recorders, etc.).
See pages 7 and 10 for more
information.
Remote in
is allows remote-control signals to
be received by the A38 if the remote
sensor is covered (or otherwise not
‘visible’ to the remote-control).
See page 7 for more information.
Trig out
is output provides a 12V signal whenever
the unit is switched on (i.e., not ‘o ’ or in
‘stand-by’). is signal can be used to switch
on power ampliers (or other equipment)
connected to the A38.
NOTE
e TRIG OUT and REMOTE IN functions are only used
in multi-room systems. ey are not required for
normal use.
Power inlet
Connect the correct
mains cable here.
Voltage select
Ensure the voltage selected
matches the local power supply.
Phono earth terminal
For connecting your
turntable earth lead (if
required). Note that this
terminal must not be used as
a safety earth.
