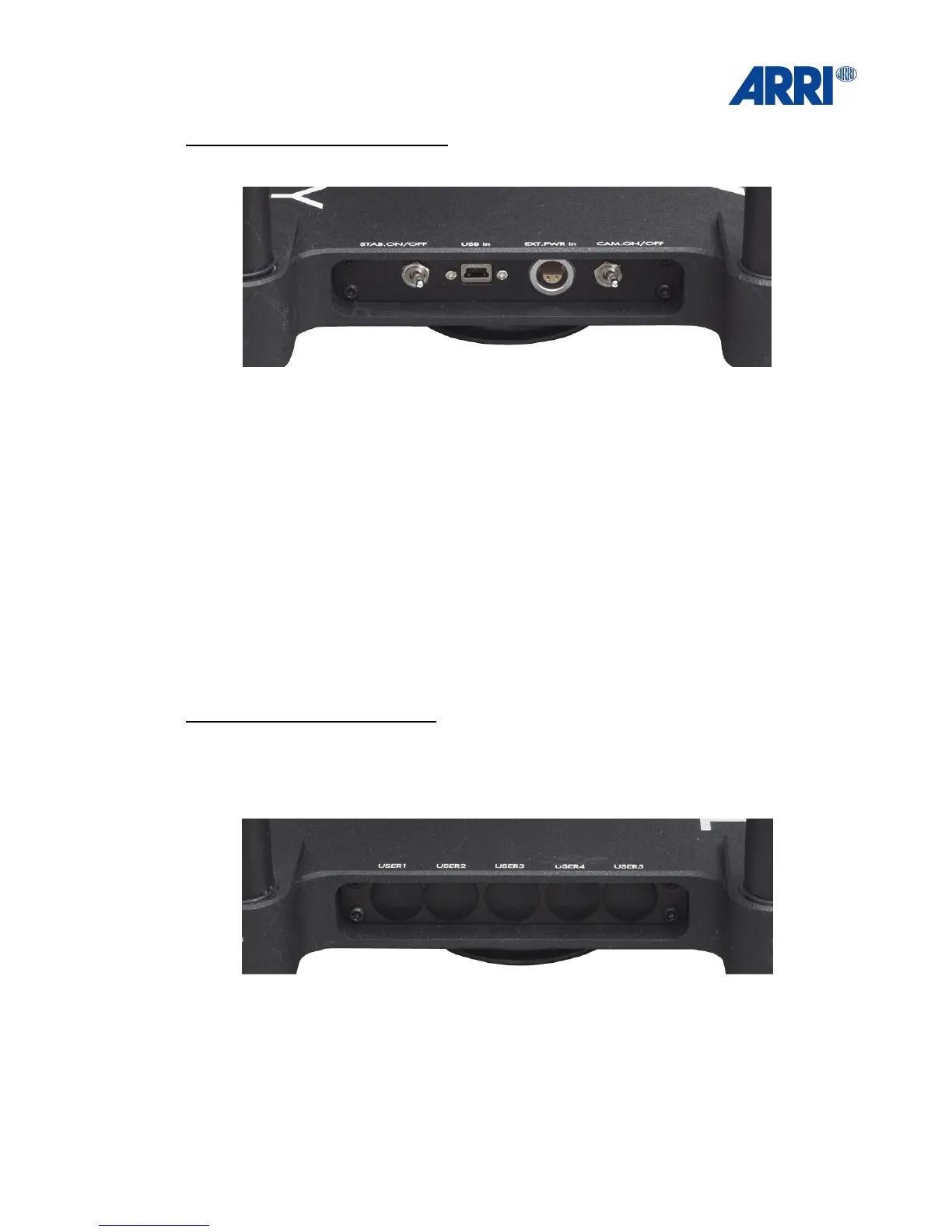

Connectors at the Base Right side
!
!
STAB ON/OFF: Power On/ Off switch for the TRINITY stabilizer system.
USB IN: Allows you to connect a PC via USB cable for software interface.
EXT PWR IN: When the TRINITY head is used as a handheld device, it can be externally
powered through this input
CAM PWR ON/OFF: Power On/ Off switch for the camera and all other units which are
powered by the TRINITY head.!
!
!
!
Connectors at the Base Left side
This area is reserved for later customization and future upgrades.
!
