• Low COG (center of gravity)!
!
Any accessories mounted to the camera should be attached
as low as possible.!
!
NOTICE!
Video Transmitters should be mounted to the rear Battery
Hanger. This uses the weight of the transmitter as
counterweight and the total weight of the system can be kept
low.!
The Battery Hanger provides a camera video signal, and
Video Power Out socket to supply a transmitter with 12V
power.!
!
• SYMMETRY!
!
Camera components and accessories that are mounted to the
camera have to be attached in symmetry and balance.!
!
For example:!

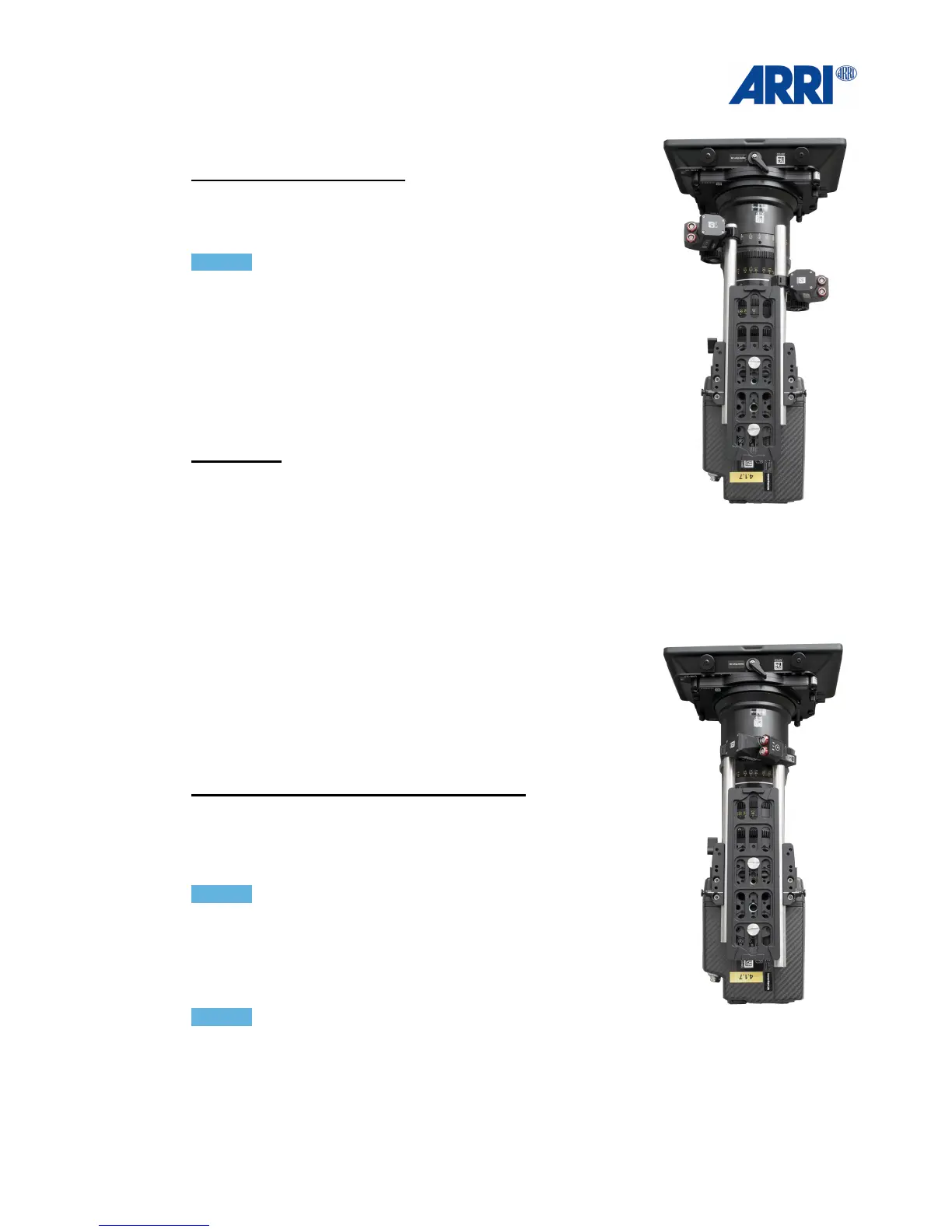

If two Focus Motors are needed, use two 15mm rods (equal
length and material) and mount them to the base of the camera.!
!
Now place one Focus Motor on each rod. Make sure that the
gears are facing the front of the lens and the motor housing
the camera body.!
!
If only one Focus Motor is required then still use two rods and
place the Focus Motors vertical below the lens. This way you
can achieve the need for a low COG and symmetry.!
!
• Secure Component / Accessory Attachment!
!
Keep in mind the TRINITY head is a fully stabilized Gimbal
with a payload capacity of 30kg / 66 lb. The amount of
available torque is very high.!
!
NOTICE!
Make sure that all components of the camera and accessories
in the setup are fully tightened. Ensure that none of the
components are loose or have any play to avoid vibration and
costly performance issues.!
!
!
NOTICE!
Please double check all clamps and the proper fit of all
components.!
!
