ARRI TRINITY - Battery Hanger Power Connections

!
NOTICE!
The TRINITY supplies only 12V High Capacity power to the entire system. !
All batteries inputs are HOT SWAPED to each other. The Hot Swap will provide maximum
power and run time to the camera and will ensure that the single batteries will be drained
evenly.!
!
DANGER!
Make sure only batteries with the same chemistry are used.!
Do not mix batteries!!
Only use batteries that are the same model from the same manufacturer. !
!
!
!

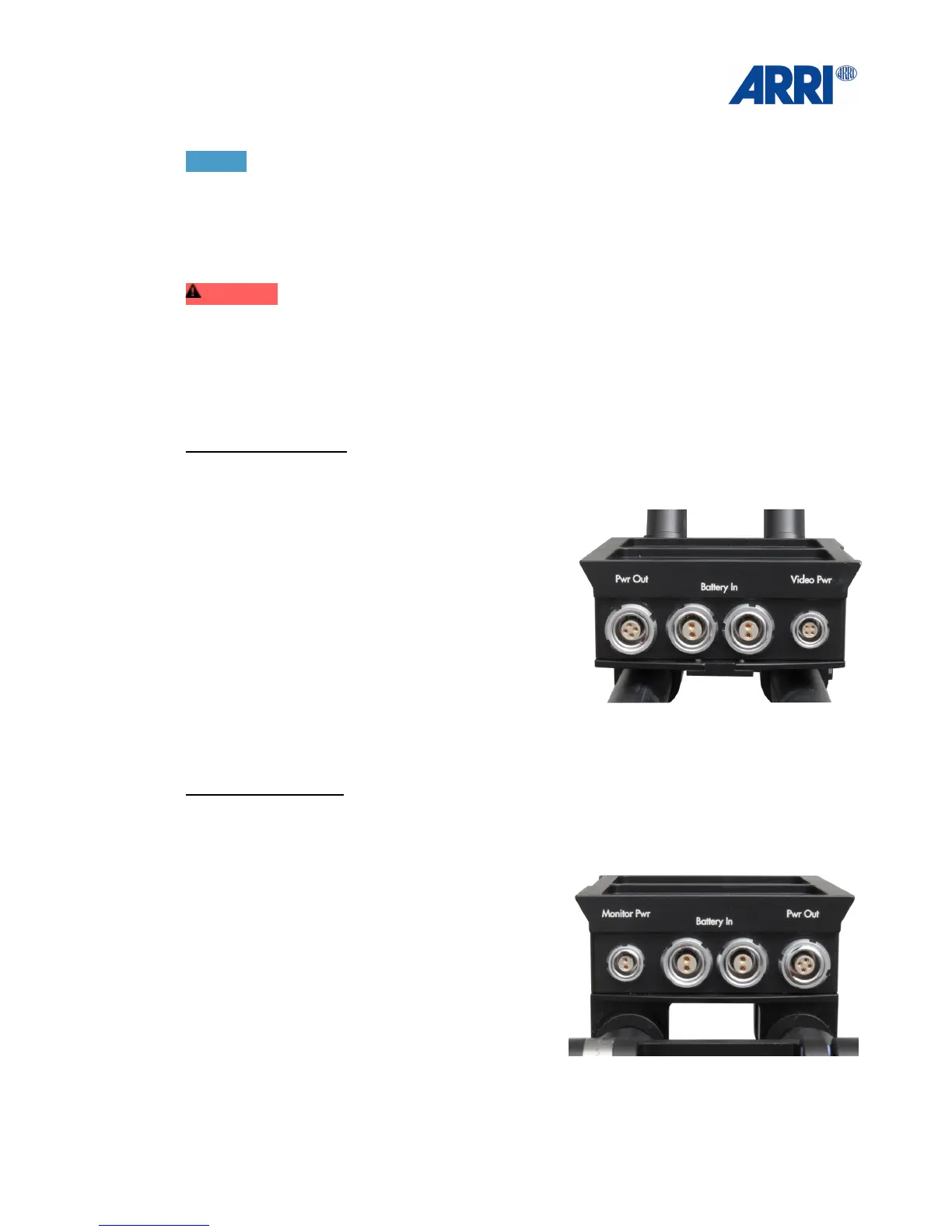

Battery Hanger Front
Pwr Out!
This socket will provide 12V High Capacity to power
the system reversed through the Top Stage.
Battery In!
This two sockets will take the power cables of the
Front Battery Mounts.
Video Pwr!
This socket provides 12V power to Video
Transmitters or other recording accessories.
!
!
!
Battery Hanger Back!
!
Monitor Pwr!
This socket provides 12V power to any monitor.
Different monitor power cables are available.
Battery In!
This two sockets will take the power cables of the
Back Battery Mounts.
Pwr Out!
This socket will provide 12V High Capacity to
power the system reversed through the Top Stage.!
!
!
!
