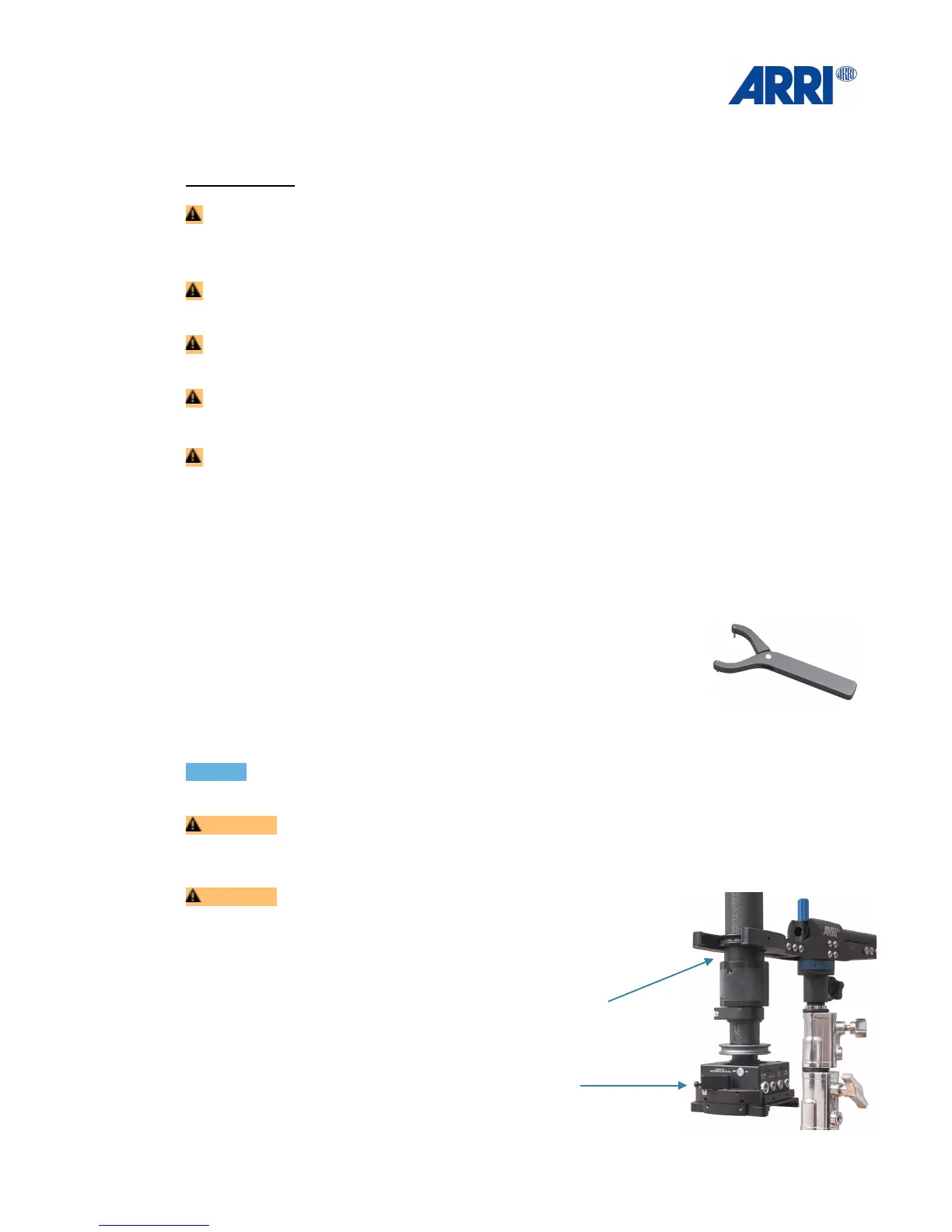

6.0 General Preparations
Safety Advice !
!
!
Always ensure that you are using a proper C-Stand, Steel Low Boy Stand or a another
suitable stand made of steel.!
!
!
Make sure the stand is set up on even ground.!
!
!
Make sure you are not exposed to strong wind or heavy rain.!
!
!
Make sure that the yoke of the Docking Bracket is over the longest leg of the stand. !
!
!
Securing the stand with sand bags greatly reduces the risk of the stand falling
!
!
6.1 Setting up the TRINITY Rig!
!
1.!
Remove the entire Monitor Bracket from the Center Post.!
!
2.!
Use the Post Tool for the following steps.!
• Remove the Sled from the Center Post of the artemis system.!
• Remove the Top Stage from the Center Post of the artemis system.!
!
3.!
Mount the Top Stage to the lower end of the Center Post. !
NOTICE!
The Bubble is aligned to the back.!
!
CAUTION!
Plug in the main cable connector carefully into the socket of the Top Stage when placing it on
the bottom of the post.!
!
CAUTION!
Use the Post Tool to ensure that the Docking Ring is fully tighten.!
!
4. !
Bring the C-Stand to the lowest position.!
!
5. !
Open up the Fine Trim Section to the maximum.!
!
6. !
Dock the post on the docking ring above the Fine Trim adjustment
as shown into the Docking Bracket."
