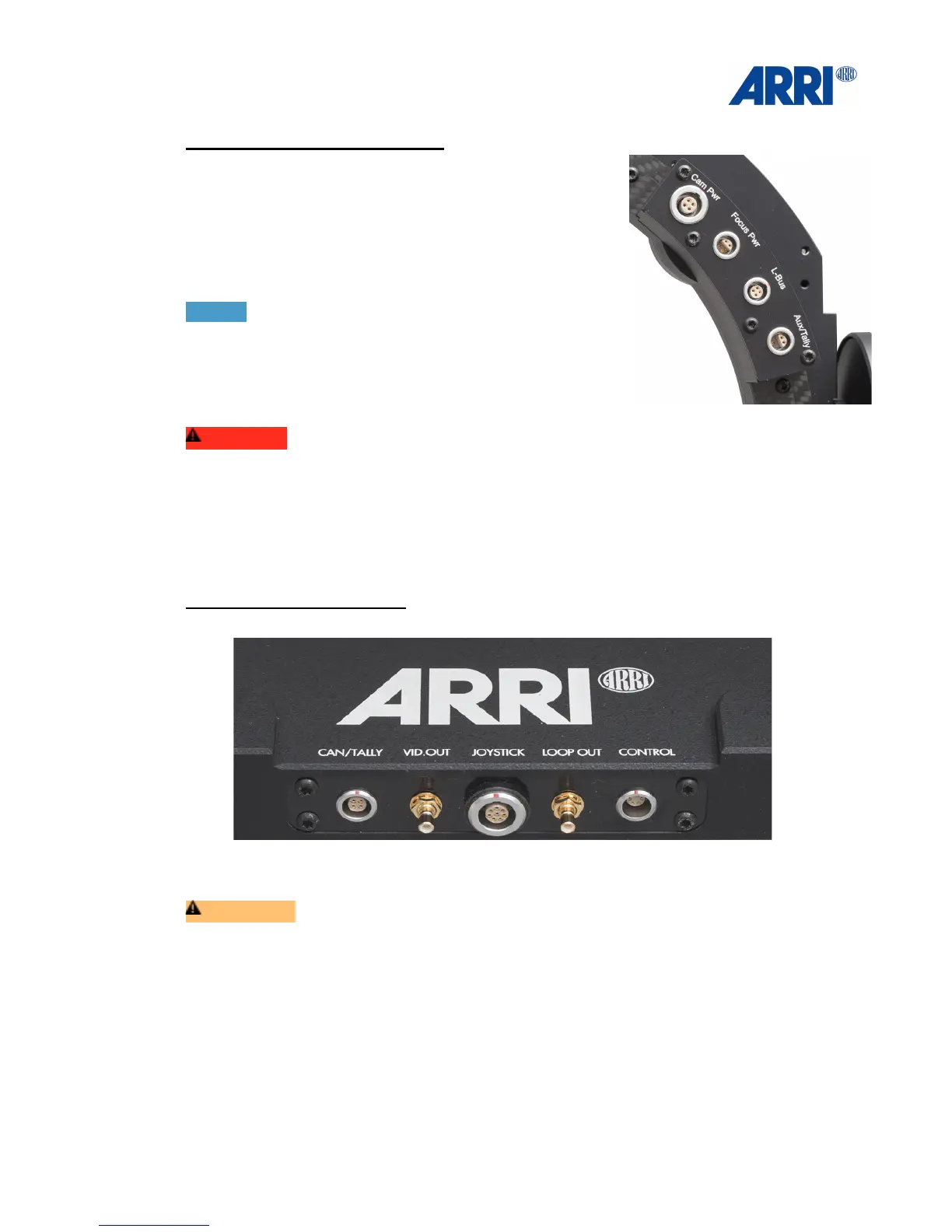

ARRI TRINITY - Connectors at the Ring (Right Side); Connectors at the Base Front

!
!
Connectors at the ring - right side!
!
Cam Pwr Out: High Capacity 12V power out for camera!
!
Focus Power Out: 12V power out to supply Focus
Receivers!
!
LBUS:!
NOTICE!
Not in uses in the moment.!
LBUS is a bus standard designed to allow multiple lens
motors and control devices to communicate with each
other. !
!
DANGER !!
Do not connect any L-Bus Motors, or other L-Bus products !
to this connector, till your TRINITY had been updated to L-Bus.!
!
Aux / Tally Out: 12V power to supply accessories. !
Or to connect the artemis external TALLY system.
!
Connectors a the Base Front
Can/Tally: Provides a Can Bus or the Tally Trigger Signal.!
CAUTION! !
Do not connect any L-Bus Motors, or other L-Bus products to this connector, !
till the TRINITY had been updated to L-Bus.
Vid Out: Video out of the HD2 video signal from the HD2 Video In BNC socket at the ring.
Joystick: Socket for the Joystick Main Cable !
!
Loop Out: Provides the HD1 video signal when it is looped back through the Top Stage HD2.!
!
Control: Provides the EXT Data looped through the ring.!
!
