3.0 The TRINITY Head
!
3.1 Connectors

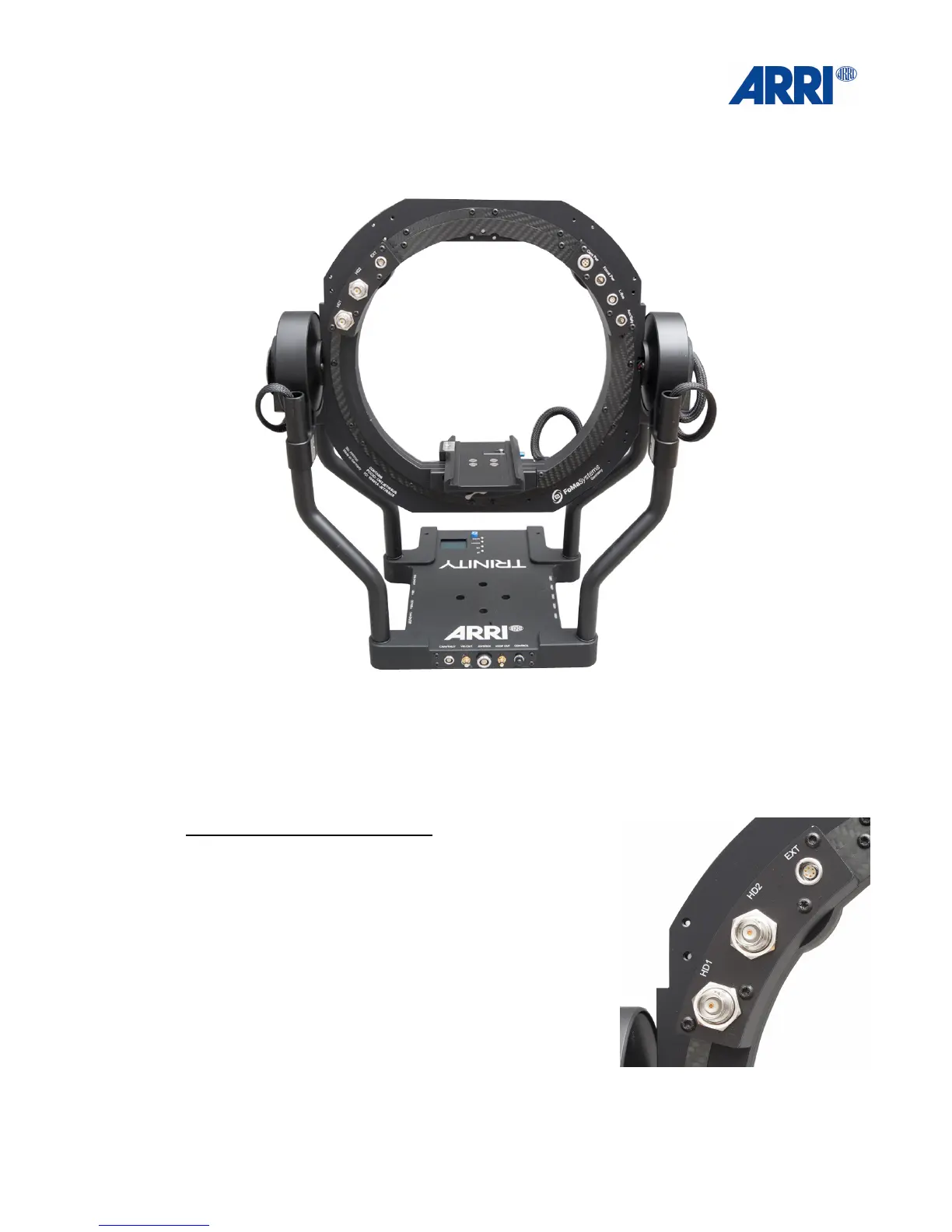

Connectors at the ring - left side
HD 1 is the Clean Feed Video line. !
This HD video signal goes directly down through the
Center Post to the HD1 BNC connector at the Top Stage
mounted at the bottom of the system.This video signal is
ideal for Video Transmitters.!
!
HD2 is indented for the use of the Starlight monitor, which
is mount to the Gimbal handle. !
!
EXT: The EXT connector is a multi-pin accessory
connector that carries signals for communication with
various accessories.
