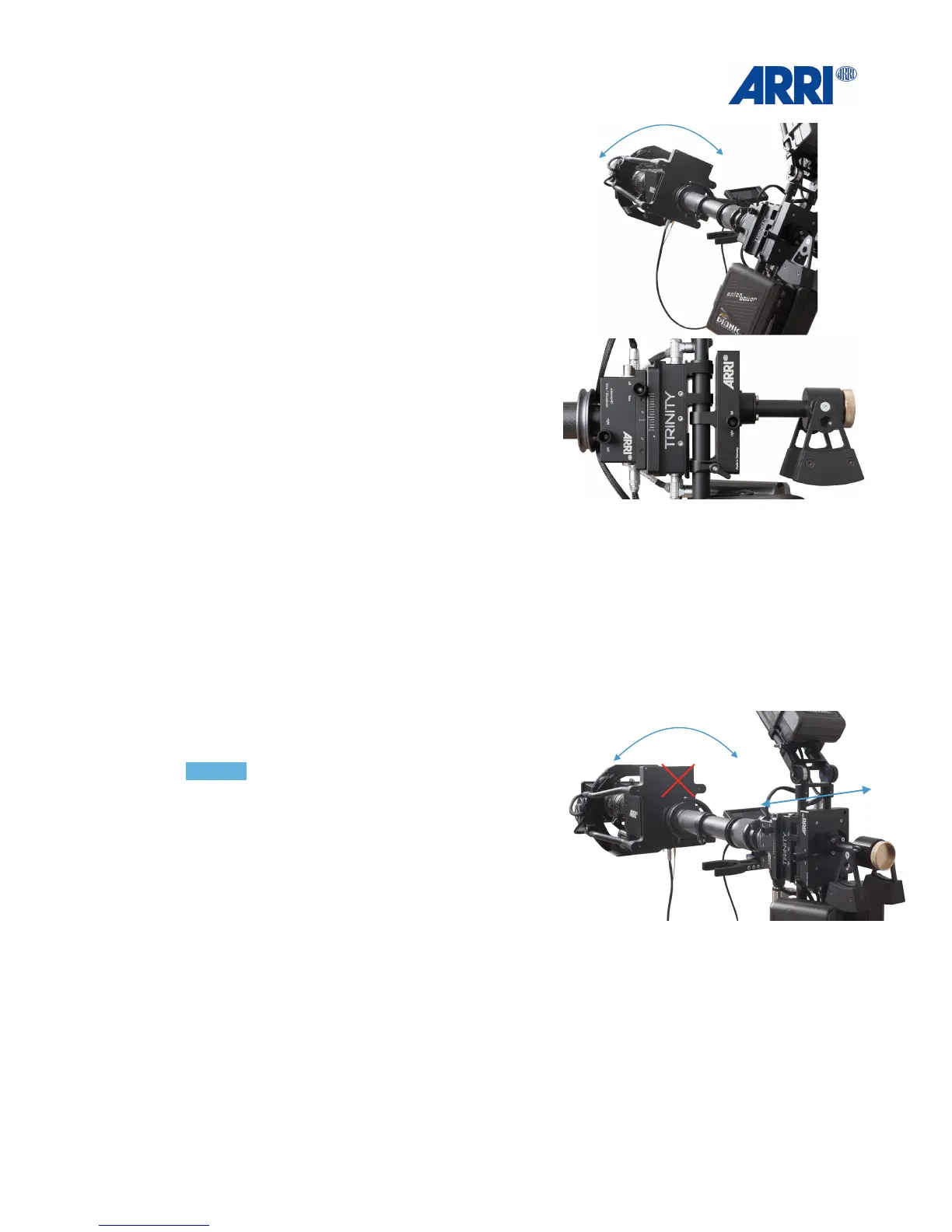

You will see that the rig will now have a tendency to roll
to one side or the other while in a horizontal position.
Using the pendulum right and left adjustment dial make
sure that the Pendulum is in the center position of the
carrier and below the post.!
!
!
!
!
!
Now use the Left and Right adjustment of the Top
Stage and bring the base of the TRINITY into a
horizontal position with the base of the rig level
side to side and the roll eliminated.!
!
!
!
With the base and the rig in a horizontal position, turn the post 5° to the right and let the Rig
find its way back to the level horizontal position.!
!
Do the same starting from the left side.!
Observe any difference in the speed of the correction from the right to the left. !
!
Using the Left and Right adjustment of the Top Stage and the Left and Right adjustment of the
Pendulum adjust the rig until the 5 rotation
correction from both sides is of equal speed. !
NOTICE!
Try to keep the Pendulum always in a line with the
Center Post. It might be useful to move the Top
Stage too far and to counteract this with the
Pendulum to keep it more centered.!
