P/N PM000223A • Rev. 1 • ISS 9 August 2017 40
Installation Manual
NU-Series Hardware
IP Devices
5.4 NUCD12IP Corridor Display
The Corridor Display (NUCD12IP) is suitable for use as a supplementary messaging display
in Ascom Telligence Systems. It contains a PoE interface and connects directly to the
Ethernet network.
Warning: This corridor display does not comply with the ANSI/UL 1069 standard for
Hospital Signaling and Nurse Call equipment and is not considered to be part of a listed
system configuration.
The corridor display has a large character (height 50mm (2.0in.)), white LED message
display with an RGB priority color (red/green/amber/blue/magenta/cyan/white) indicator
and a signaling buzzer. It is only available as a single-sided unit with a twelve-character
display (up to fifteen proportional characters); however, two displays can be mounted
back-to-back to create a double-sided display.

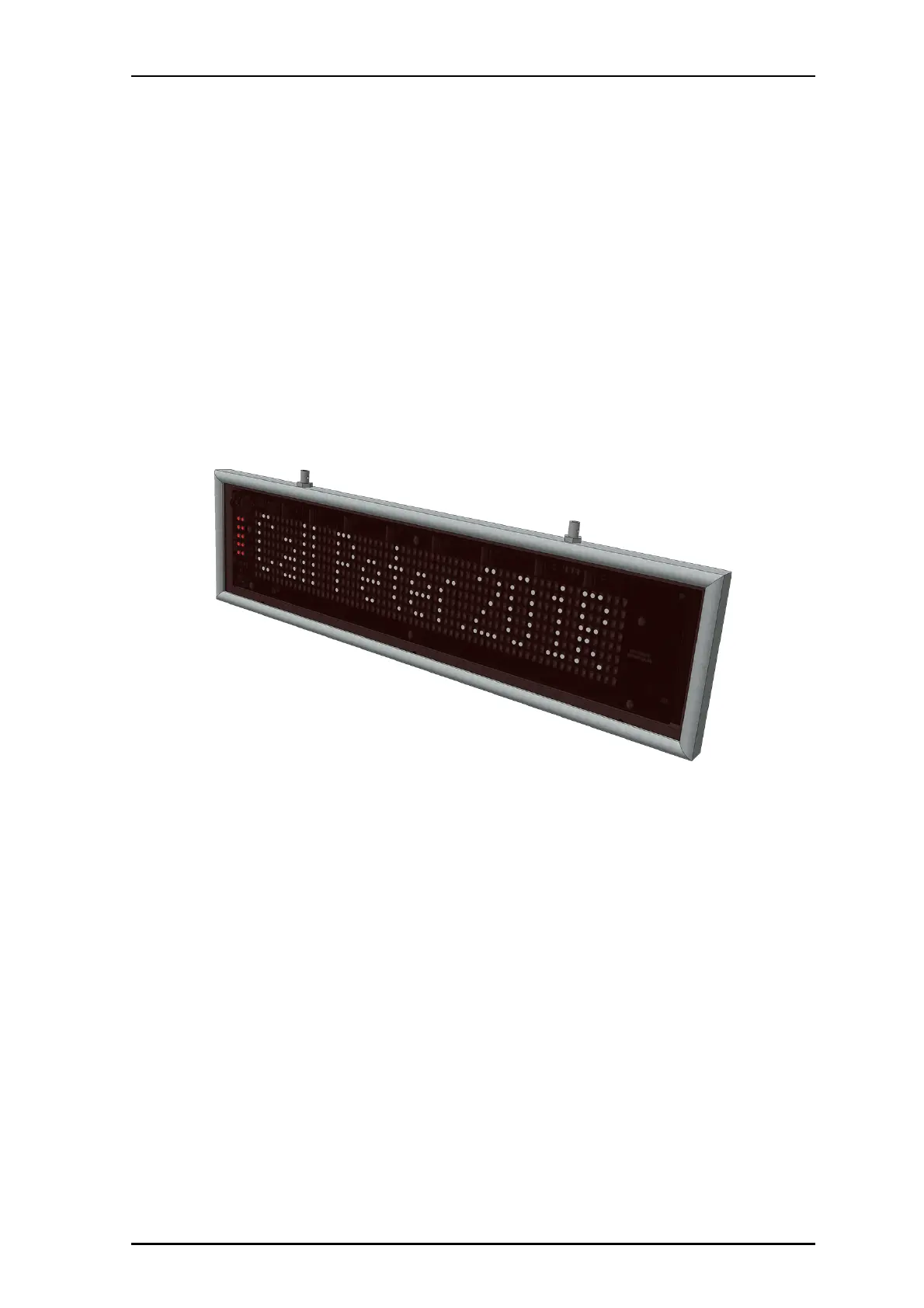

Figure 33 12-Character Corridor Display (NUCD12IP-H)
