5.4.2 Dimensions and Weights
• Weight of the corridor display, 0.9kg (32oz.)
The method used to fix the corridor display to the ceiling or wall must be capable of safely
supporting the display and the mounting accessories, such as the wall mounting bracket.
Caution: Do not mount the corridor display on ceiling tile rails or directly to ceiling
tiles.

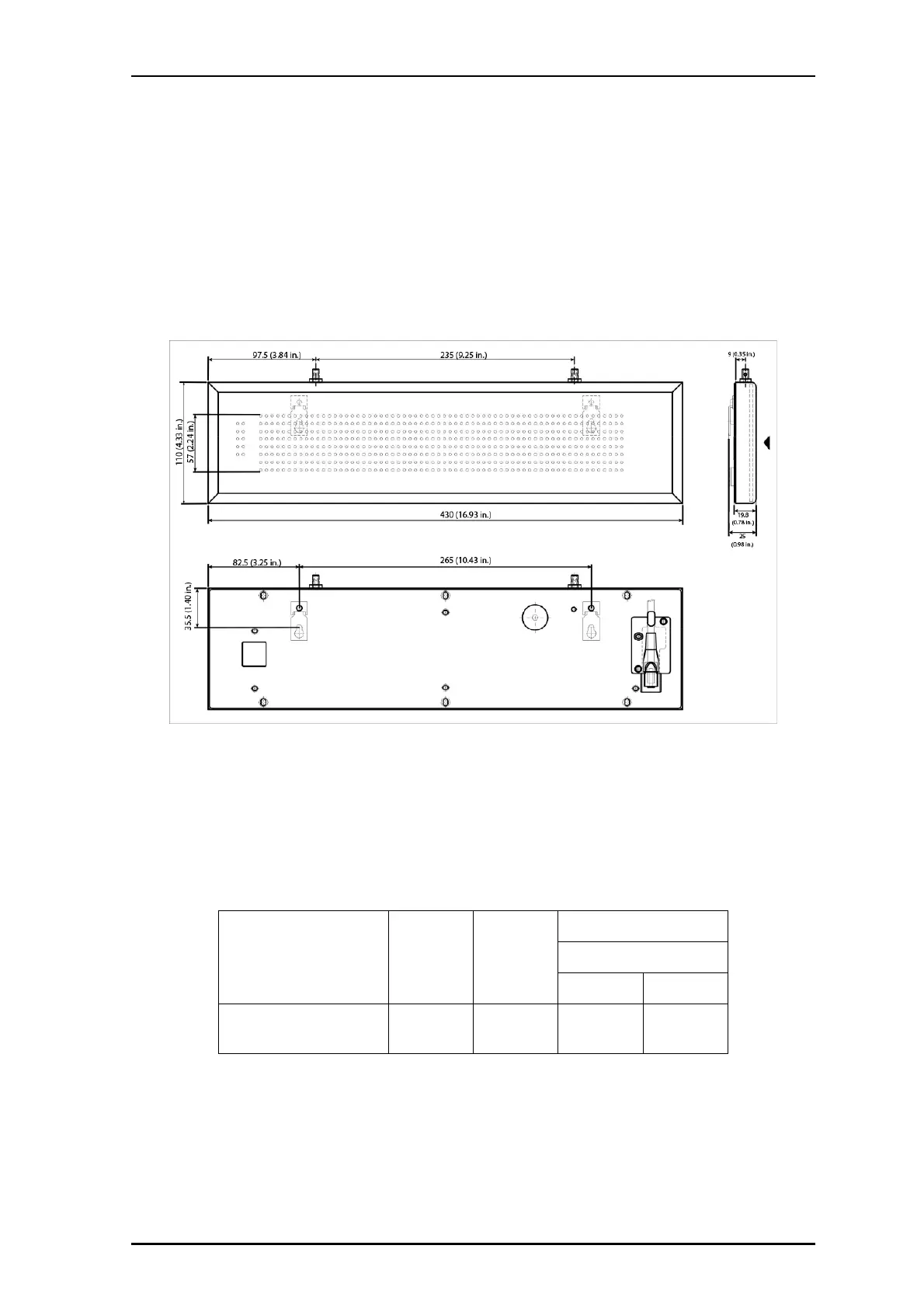

Figure 35 Corridor display dimensions
5.4.3 Corridor Display Power Requirements
Power the corridor display using Power over Ethernet (PoE) through a PoE switch.
Use shielded or unshielded Ethernet cables (Cat5e or higher) when connecting the
corridor display to the network.
The following table shows the power requirements for the corridor display.
Table 8 Corridor display power requirements
Display Type PoE type PoE Class
Power Consumption
PoE Supply
42VDC 57VDC
NUCD12IP
Single Sided
PoE
(802.3af)
Class 2
< 6.49W
6W
0.14A
6W
0.11A
