P/N PM000223A • Rev. 1 • ISS 9 August 2017 108
Installation Manual
NU-Series Hardware
Room Modules
7.16 NUBM3P Passive Bedside Module
P/N PM000120A • Rev. 1.0 • ISS 31MAY2017
ascom
1 of 3
© 2017 Ascom, Inc.
NUBM3P-HE Passive Bedside Module
Installation Sheet
Description
The Bedside module (NUBM3P) is a passive, wall-mounted
device suitable for general rooms. This module connects to
a passive room bus coming from the NUPBC-H Passive Bus
Concentrator. The module features three customizable
buttons and a magnetic Ascom SafeConnect socket for
connecting NUHS-series bedside handsets.
Installation
Note: Before beginning the installation, ensure all
the necessary cables are available and are properly
terminated.

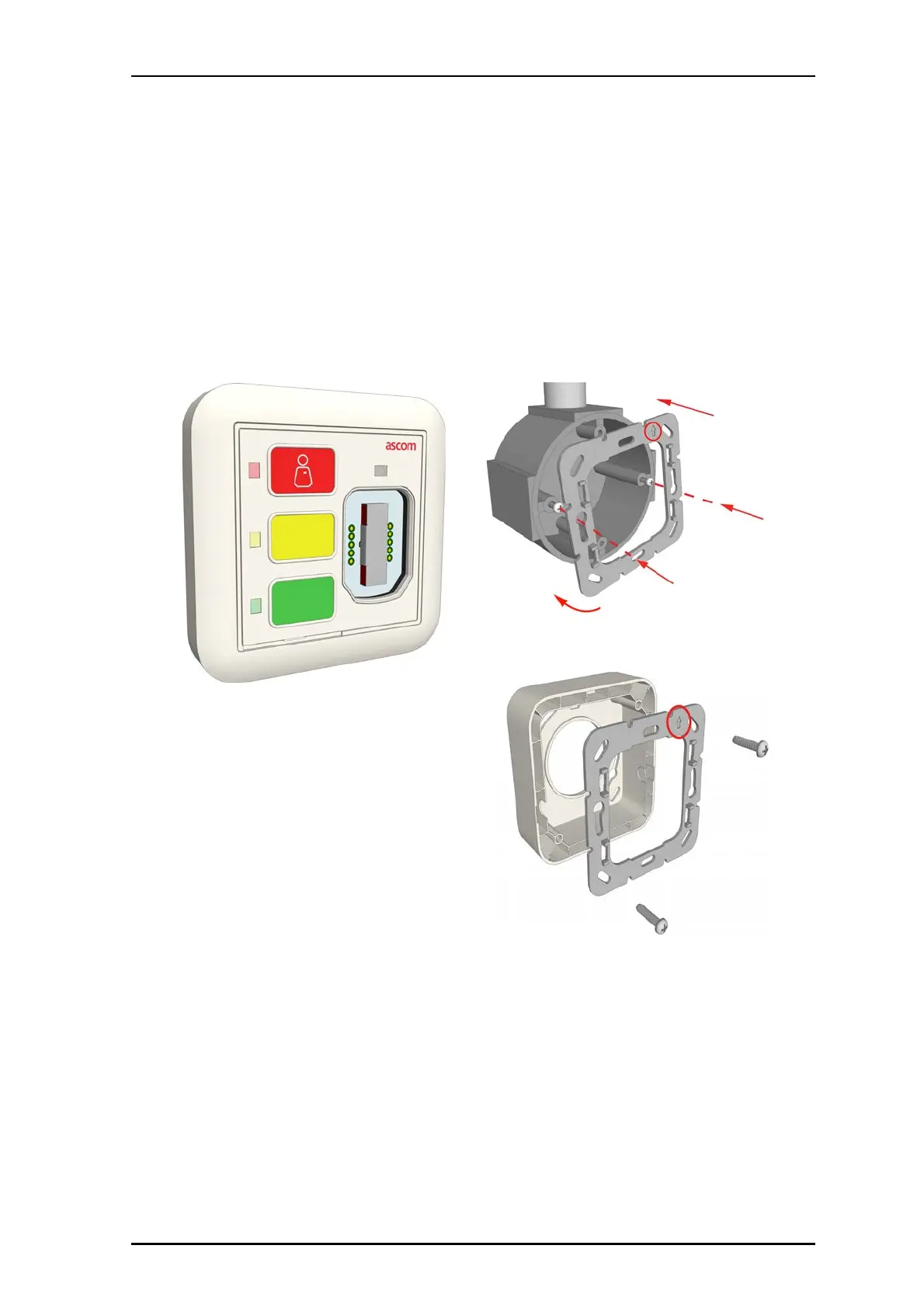

The module can mount to a backbox, or to a wall by using
a surface-mounting spacer (NUSP1-HE).
To mount the module on a backbox or spacer:
1. When using a backbox, loosen the screws on the
backbox so that approximately 5mm extend out from
the backbox and the heads of the screws can pass
though the key-hole slots of the adapter plate.
When using a spacer, ensure the spacer is properly mounted
to the wall and that the adapter screws are available.
2. Place the adapter (with the arrow facing up) over the
backbox or spacer and ensure that it is level.
3. Tighten the screws.
4. Pull the cables from the backbox or spacer though the
adapter.
