P/N PM000223A • Rev. 1 • ISS 9 August 2017 54
Installation Manual
NU-Series Hardware
IP Devices
Location of the Reset Button Hole

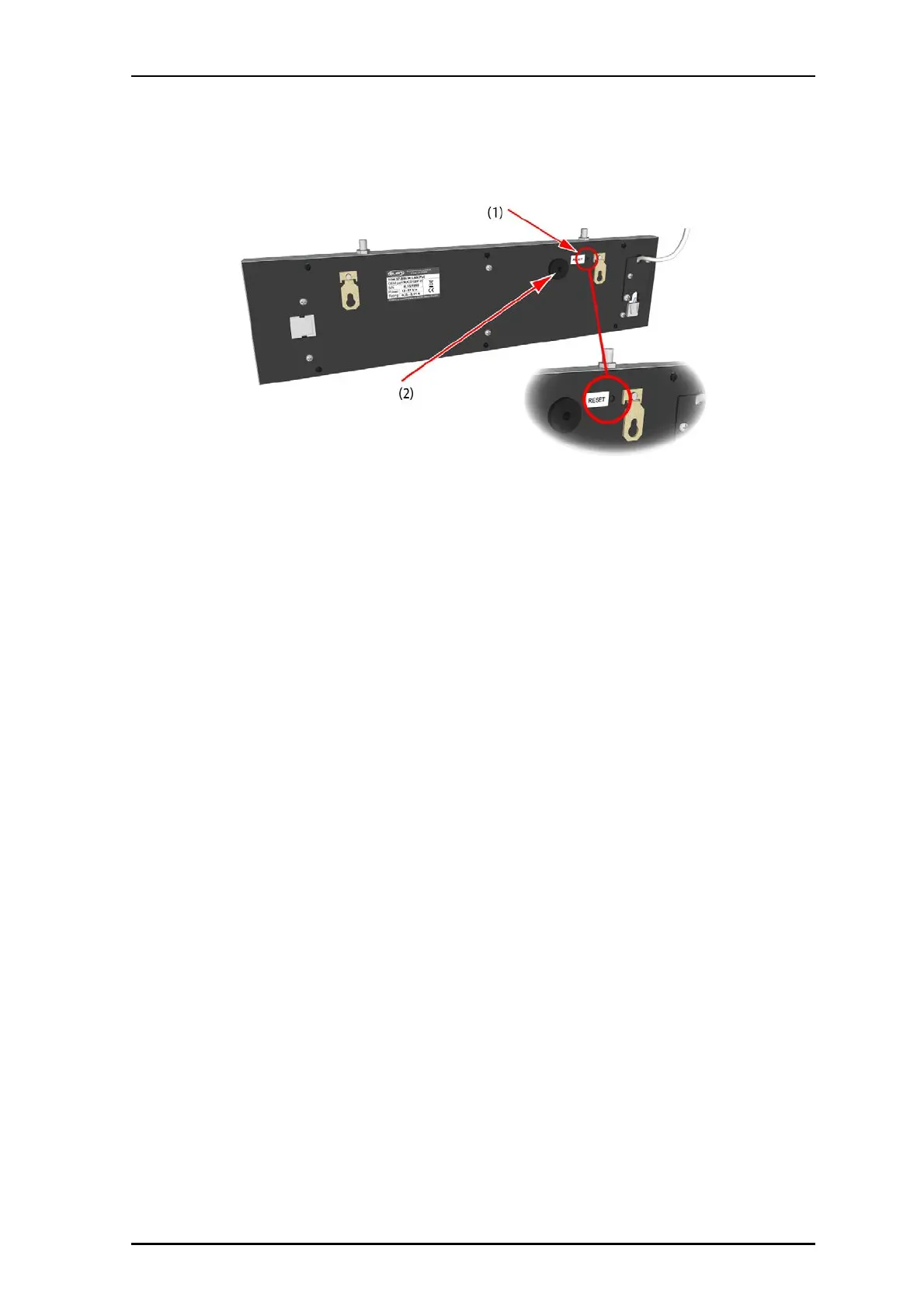

Figure 43 Reset button hole on the corridor display
Legend:
(1) Reset button hole (press for four seconds to reset to factory default)
(2) Buzzer hole (do no insert here)
