Sterilizer Overview 3
Rear Panel
Option
connector
Network
connector

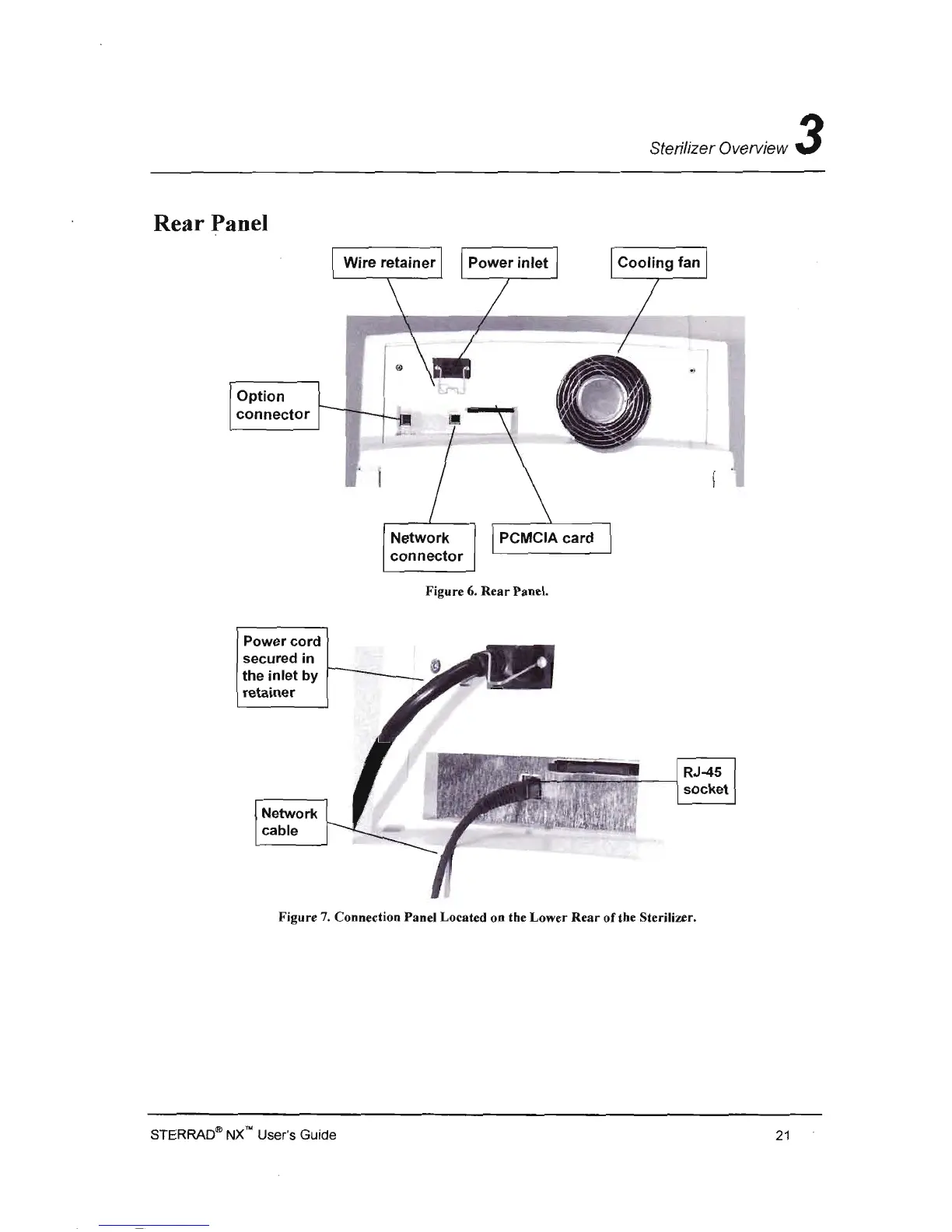

Figure 6. Rear Panel.
Power cord
secured in
the inlet by
retainer
RJ-45
,.,.- - ---i socket
Network
cable
Figure 7. Connection Panel Located on the Lower Rear of the Sterilizer.
STERRAO@NX'" User's Guide
21
