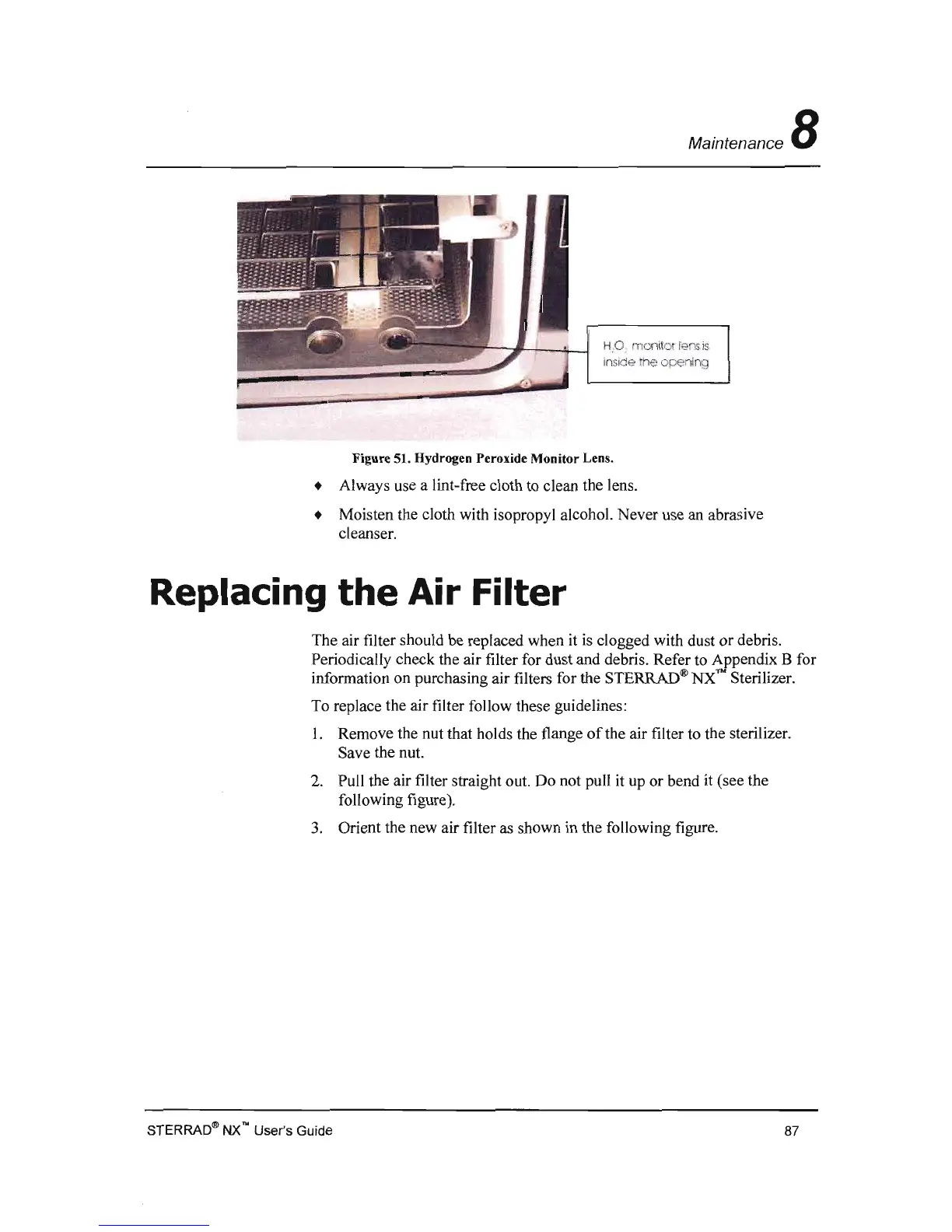

ASP sterrad NX - Replacing the Air Filter

Maintenance 8
H .o r an il lens is
in side ihe ope nin
Figure 51. Hydrogen Peroxide Monitor Lens.
• Always use a lint-free cloth to clean the lens.
• Moisten the cloth with isopropyl alcohol. Never use an abrasive
cleanser.
Replacing the Air Filter
The air filter should be replaced when it is clogged with dust or debris.
Periodically check the air filter for dust and debris. Refer to Appendix B for
information on purchasing air filters for the STERRAD®
NX™ Sterilizer.
To replace the air filter follow these guidelines:
1. Remove the nut that holds the flange of the air filter to the sterilizer.
Save the nut.
2. Pull the air filter straight out. Do not pull it up or bend it (see the
following figure).
3. Orient the new air filter as shown in the following figure.
STERRAD~ NX'" User's Guide
87
