3.3. Quickstart
This quick start guide assumes the operator has some familiarity with automated Electrical
Safety testing.
Locate a suitable testing area and be sure you have read all safety instructions
for the operation of the instrument and suggestions on the test area set-up in
the Safety section. Locate a three prong grounded outlet. Be sure the outlet has been tested for
proper wiring before connecting the instrument to it.
Check to be sure that the correct input line voltage has been selected on the
rear panel, either 115 volts AC or 230 volts AC. Connect the power-input
plug into its socket on the rear panel of the instrument. Connect the male
end of the plug to the outlet receptacle. Please be sure that the safety ground on the power line
cord is not defeated and that you are connecting to a grounded power source.

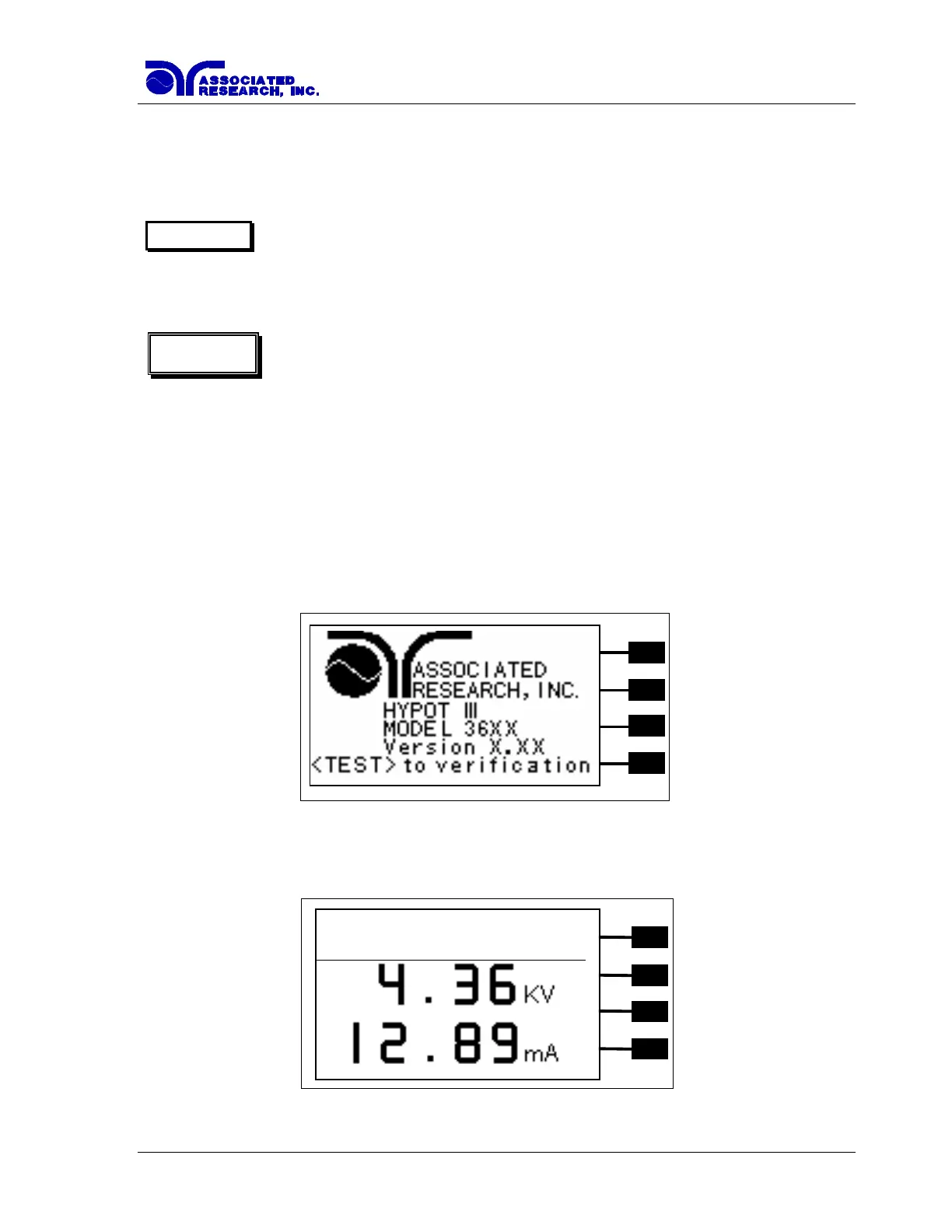

Turn on the POWER switch located on the lower left-hand side of the front panel. The
initialization screen will appear with a message at the bottom indicating <TEST> to
verification. You now have the option to press the TEST button and activate the Verification
Menu (Refer to the section Instrument Verification). The option to activate the Verification
expires approximately 3 seconds after power-up. If you do not press the TEST button with in
the 3-second window, the initialization screen will disappear. The initialization screen will
appear as follows:
After the initialization screen disappears, the Perform Tests screen will be displayed. The
Perform Tests screen will appear as follows:
WARNING
CAUTION
ACW Settings
M2-2_ 999.9s
Menu
To Next Page
