3.2. Instrument Controls

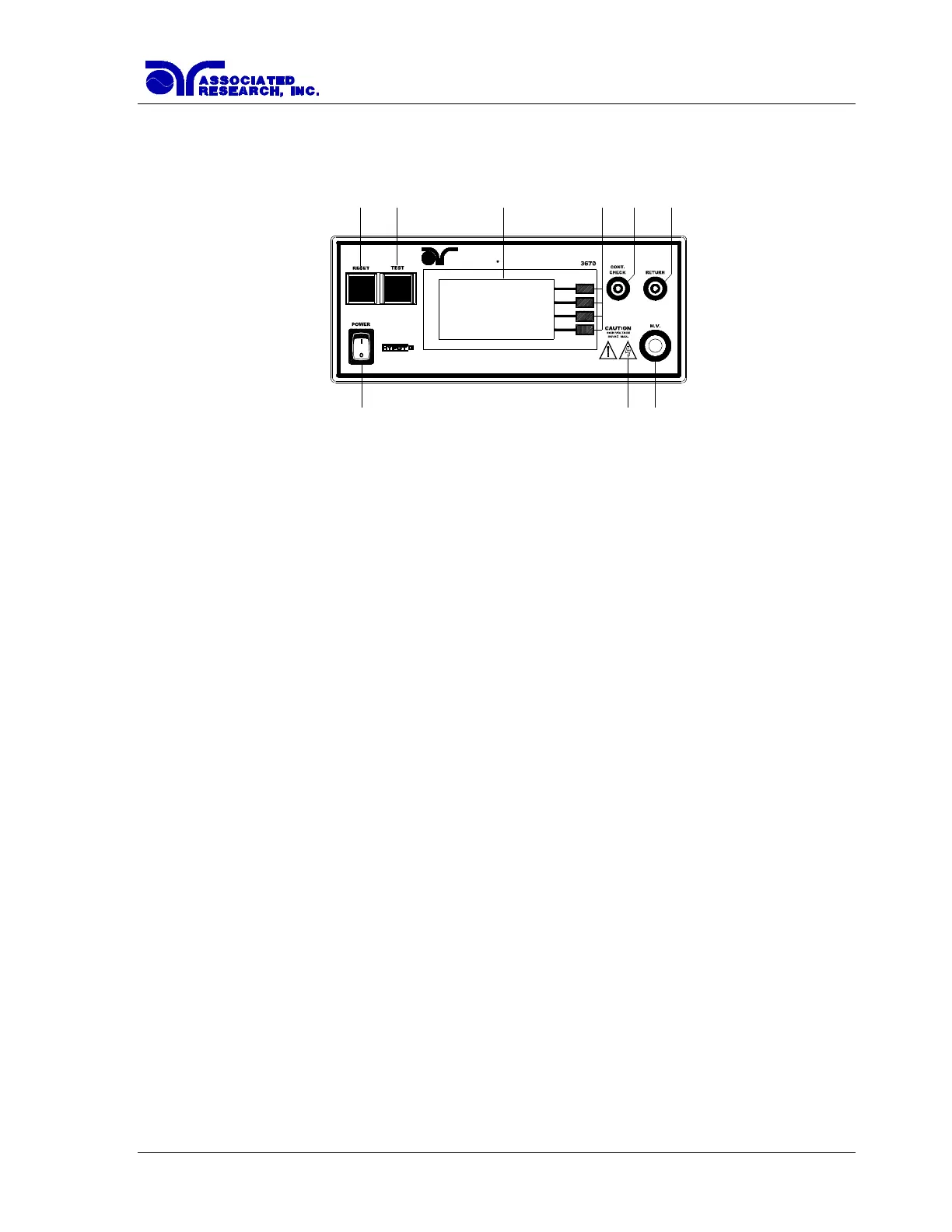

3.2.1. Front Panel Controls
1. RESET BUTTON: Momentary contact switch used to reset the instrument. If a failure
condition occurs during a test, you will need to reset the system to shut off the alarm and
signal the system that you are aware of a failure condition. The reset button must be
pressed before you can proceed to the next test or change any of the set-up parameters.
This switch also serves as an abort signal to stop any test in progress controlled by the
Hypot III.
2. TEST BUTTON: Momentary contact switch used to start tests. Press the green button to
activate the test that is set up in the test buffer shown on the display.
3. GRAPHIC LCD: 128 X 64 Monographic LCD.
4. SOFT KEYS: Multifunction parameter selection keys. Keys used to select screens and
change parameters.
5. CONTINUITY OUTPUT JACK: Connection for the low current return lead used for
continuity testing.
6. RETURN OUTPUT JACK: Connector used to attach the Return test lead, adapter box
return lead, or test fixture return lead to the instrument. This connections provides the
return current path for the high voltage and ground bond current.
7. POWER SWITCH: Rocker style power switch with international ON ( | ) and OFF (0)
markings.
8. HIGH VOLTAGE ON INDICATOR: This indicator flashes to warn the operator that
high voltage is present at the high voltage terminal.
9. HIGH VOLTAGE OUTPUT JACK: Connector used to attach the High Voltage test
lead, adapter box high voltage lead, or test fixture high voltage lead to the instrument. The
connector is recessed for safety when not being used.
