5. Operating Instructions
5.1. Instrument Connections
5.1.1. Adapter Box Connections

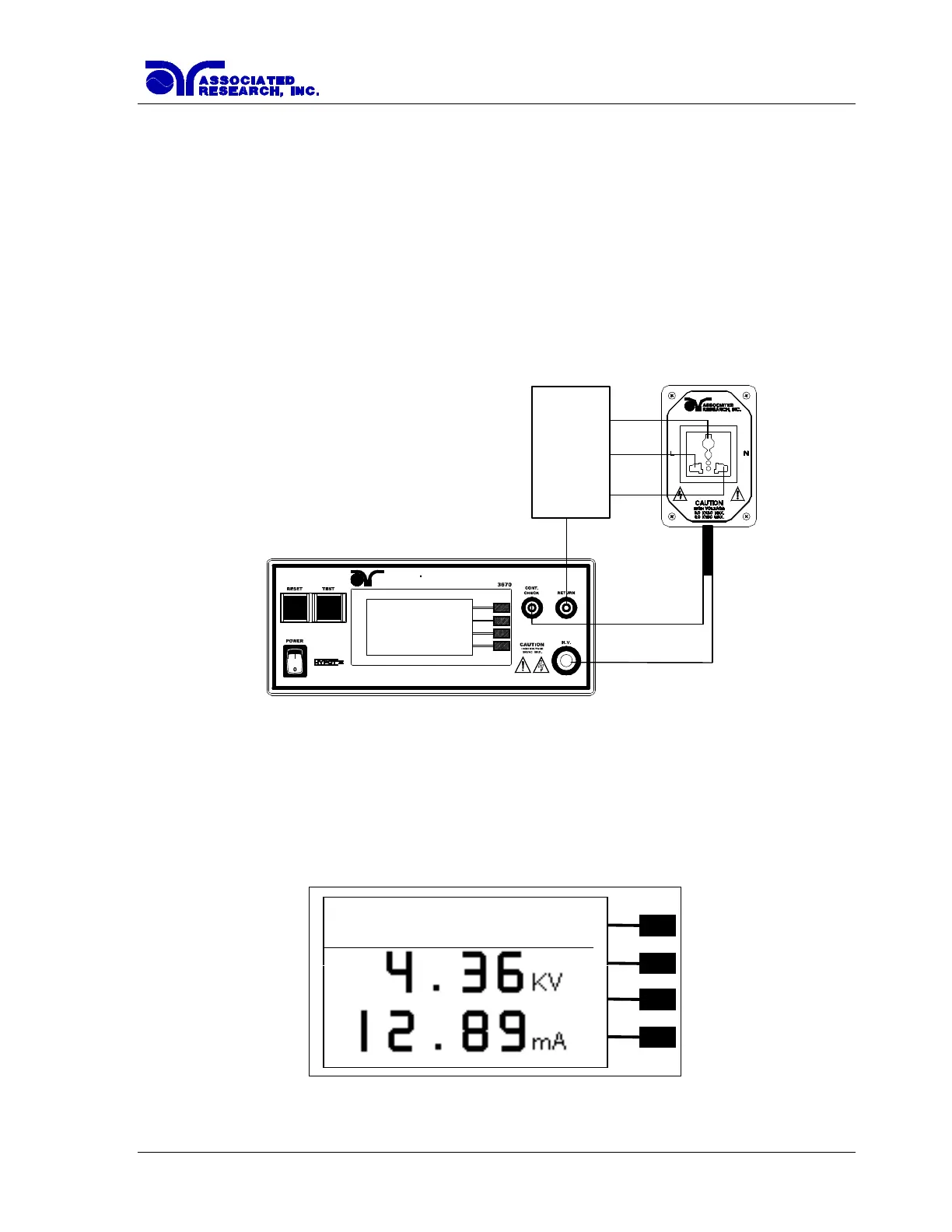

The adapter box provides an easy way to connect a DUT to the HYPOT III that is terminated
in a two or three-prong line cord. The following diagram shows how to connect the adapter
box to the Hypot III and to the device under test.
• The rear output connections on the Hypot III may be used as well.
5.2. Perform Tests, Main Menu, and Results Screens
The Hypot III automatically defaults to the Perform Tests screen upon power up. The Perform
Tests screen will appear as follows:
From the Perform Tests screen the Main Menu may be accessed by pressing the Menu softkey
`
Test Connections
CONT
36544
L
N
G
AC/DC WITHSTAND VOLTAGE TESTER
with IR Test
6KVDC MAX.
RESEARCH, INC.
ASSOCIATED
DUT
HV
CHASSIS
RTN
ACW Settings
M2-2_ 999.9s
Menu
