Associated Research hypot III 3670 User Manual

29
4. Programming Instructions
4.1. Setup System (Refer to FIG.1).
1. From the Perform Test screen, press the “Menu” soft key. The Main Menu will now be
displayed.
2. From the Main Menu screen, press the “Menu” soft key. The Results, Tests and System
selections will now be displayed.
3. From this screen, press the System soft key. The Setup System menu will now be displayed.
4. At the Setup System menu, scrolling from the PLC Remote parameter is restricted to down
only. Press the down arrow key to access system parameters.
5. Scrolling to <More> will display the second page of System Parameters.
From the Setup System screen, fourteen different Hardware and Software controls may be
accessed; PLC Remote, Single Step, Alarm, Contrast, Results, Lock, Mem Lock, Smart GFI,
Cal Alert, Cal Date, Cal Due, Alert, Date, and Time. Pressing the EXIT key at any time will
return you to the Perform Test screen.
M2-2
_
ACW
Settings
Menu
2000V
Memory
20.00mA
1.00mA
Step
999.9s
Exit
M2-2
_
ACW
Settings
Result
2000V
Test
20.00mA
1.00mA
System
999.9s
Exit
Press the Menu key.
Section 4.1, Step 1

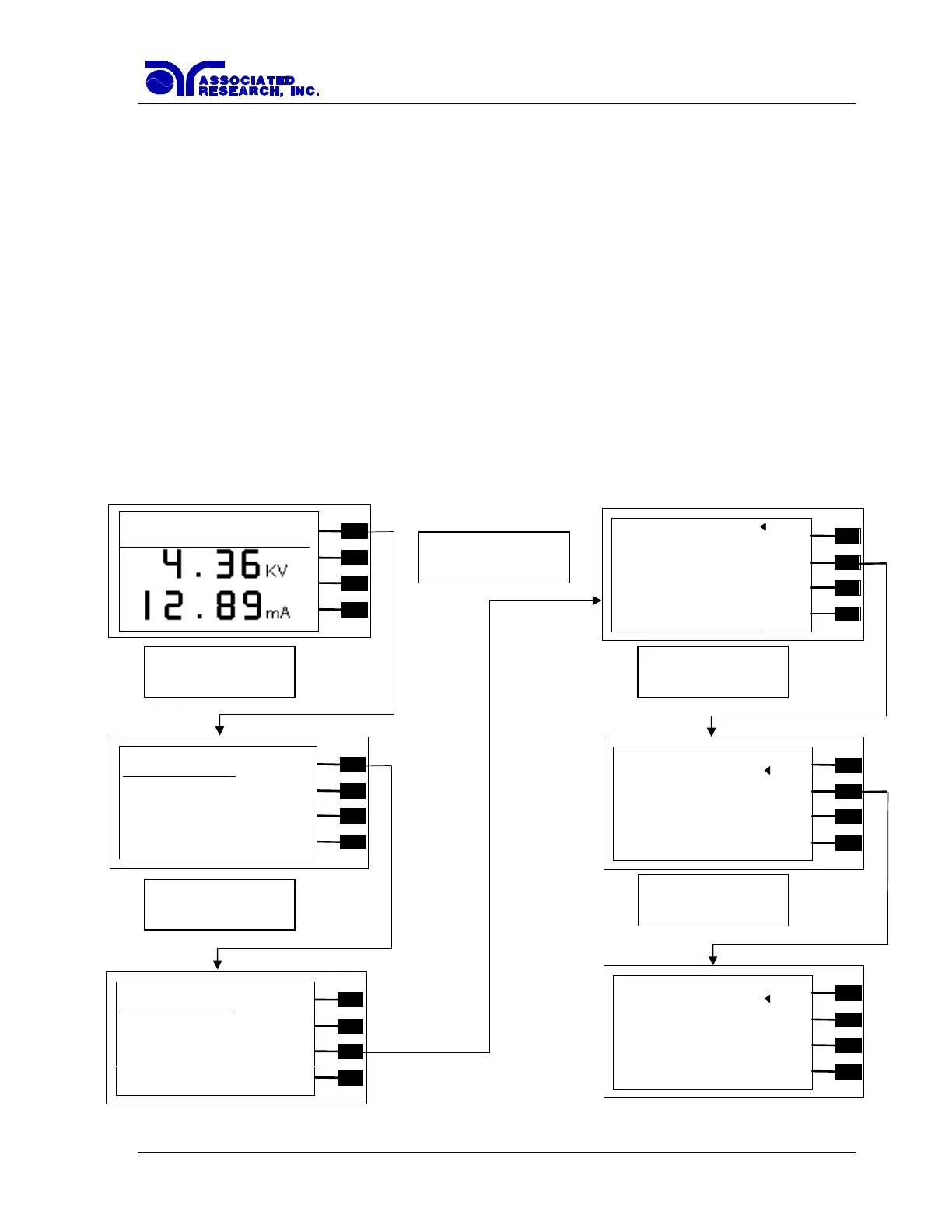

FIG.1
Press the System key.
Section 4.1, Step 3
ACW Settings
M2-2_ 999.9s
Menu
Press the Menu key.
Section 4.1, Step 2
Press the Arrow key.
Section 4.1, Step 4
Scroll to <More>.
Section 4.1, Step 5
PLC Remote ON
Single Step OFF
Alarm 5
Contrast 5
∨
Results Last
Lock OFF
+
Mem Lock OFF
<More>
Exit
PLC Remote ON
Single Step OFF
^
Alarm 5
Contrast 5
∨
Results Last
Lock OFF
+
Mem Lock OFF
<More>
Exit
Smart GFI
ON
Cal Alert OFF
^
Cal Date10/16/04
Cal Due 10/16/04
∨
Alert 09/16/05
Date mdy11/16/04
+
Time 02:14 PM
Exit
