Associated Research hypot III 3670 User Manual

36

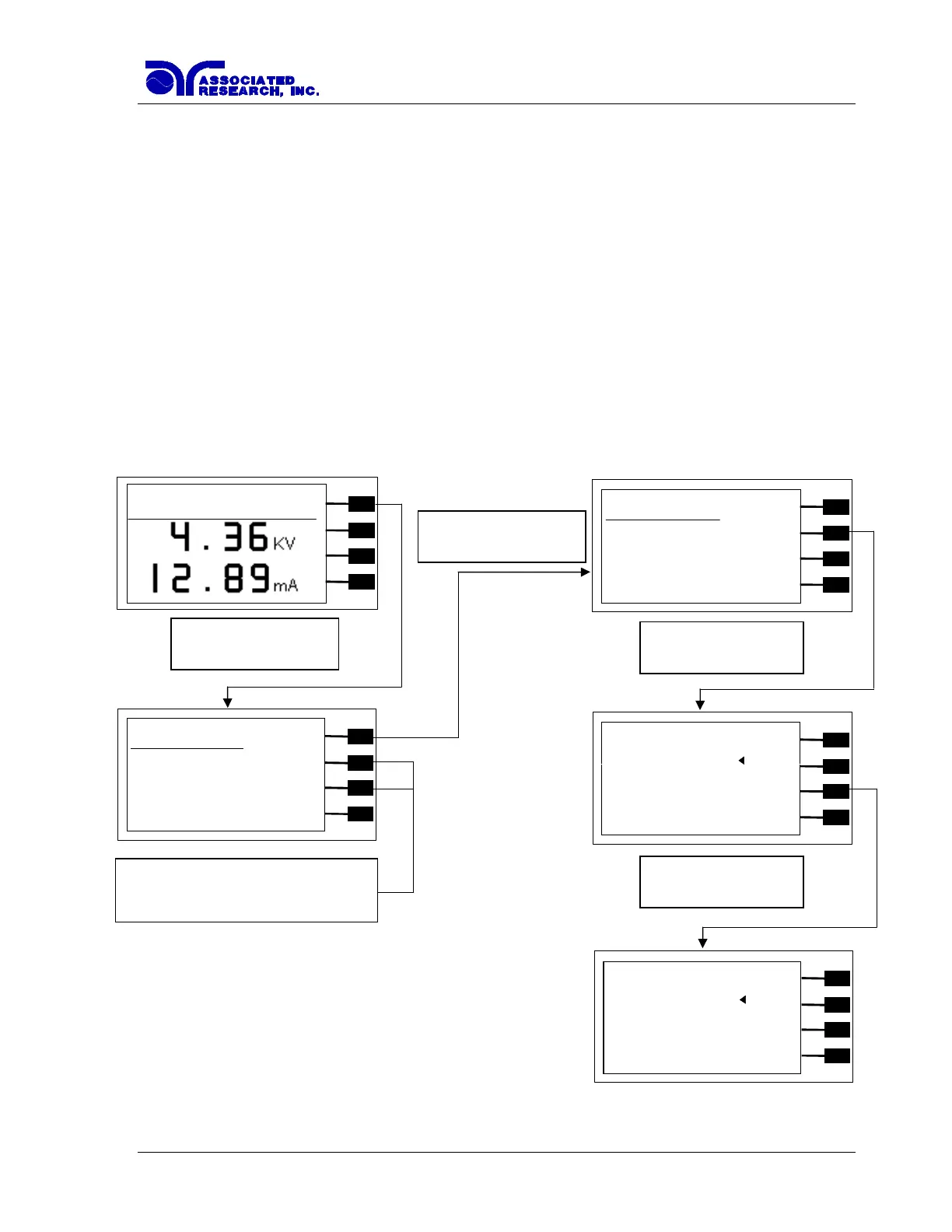

4.2. Setting up Tests (Refer to FIG.2).
4.2.1. Reviewing Test parameters
1. From the Perform Test screen, press the “Menu” soft key. The Main Menu will now be
displayed.
2. Select the memory and step location you want to review or edit using their corresponding
soft keys.
3. From the Main Menu screen, press the “Menu” soft key. The Results, Tests and System
selections will now be displayed.
4. From this screen, press the Test soft key. The Test parameter review screen will now be
displayed (For the example an AC withstand test is displayed). You may now review the test
parameters by scrolling the cursor with the up and down arrow keys. It is important to note
that there are two screens of parameters for AC and DC withstand tests.
M2-2
_
ACW
Settings
Menu
2000V
Memory
20.00mA
1.00mA
Step
999.9s
Exit
Press the Menu soft key.
Section 4.2.1, Step 1
Press the Menu soft key.
Section 4.2.1 Step 3
FIG.2
Press the Test soft key.
Section 4.2.1, Step 4
Select the memory and step number using
their corresponding softkeys
Section 4.2.1, Step 2
Press the Edit soft key.
Section 4.2.2, Step 2
Test Type ACW
Voltage 4360V
^
Max Lmt 20.00mA
Min Lmt 9.999mA
v
Ramp UP 999.9s
Dwell 999.9s
Edit
Ramp DN 999.9s
Arc Sense 9
Exit
M2-2
_
ACW
Settings
Result
2000V
Test
20.00mA
1.00mA
System
999.9s
Exit
Test Type ACW
Voltage 4360V
+
Max Lmt 20.00mA
Min Lmt 9.999mA
_
Ramp UP 999.9s
Dwell 999.9s
Enter
Ramp DN 999.9s
Arc Sense 9
Esc
ACW Settings
M2-2_ 999.9s
Menu
