SPECIFICATIONS
81 AU103170 H5B

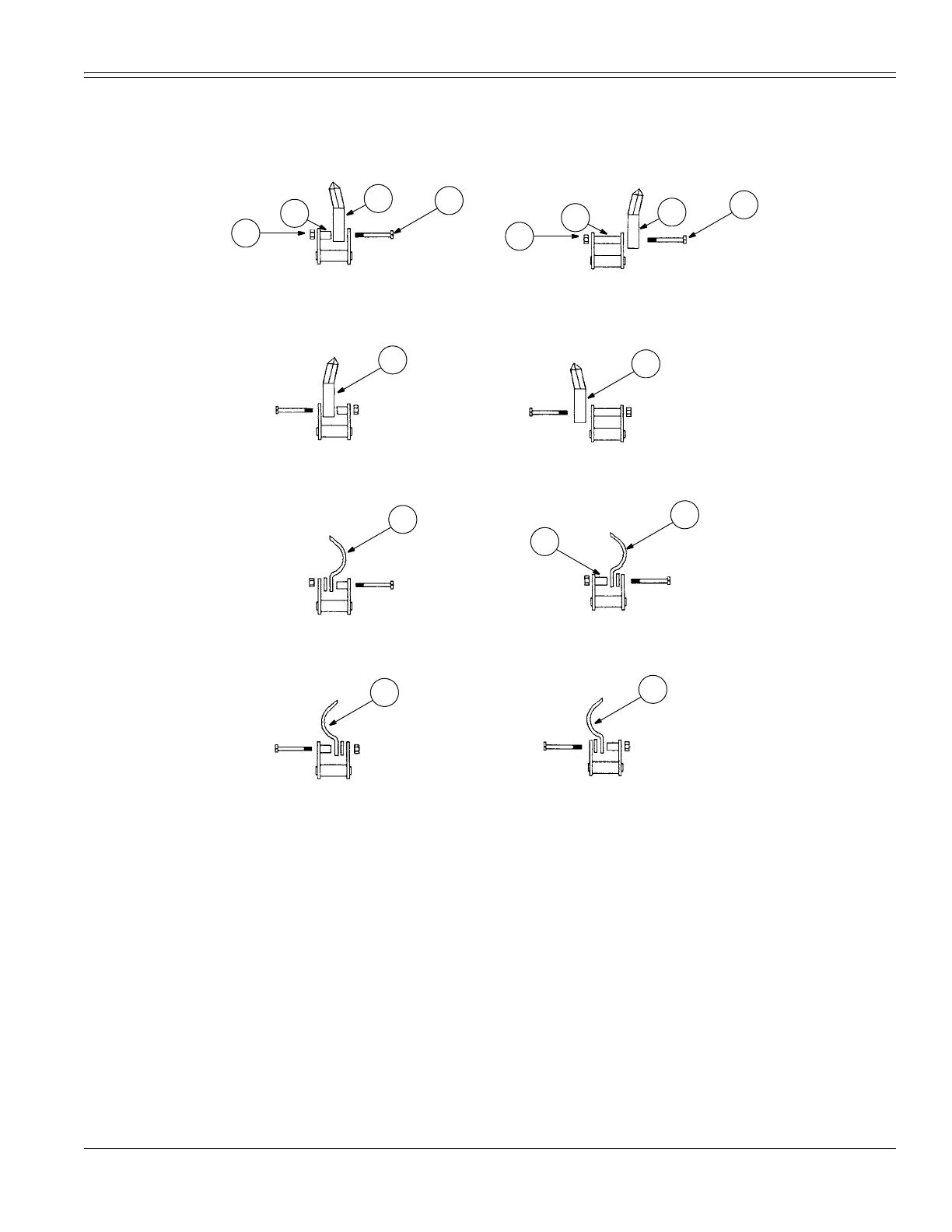

Standard 260 Digging Chain, 2 Pitch, 6” Digging Width (50,000 lb)
Terminator Carbide and Cutting Tooth Assembly
BS99G087
1. ADAPTER - TERMINATOR, RIGHT HAND, CENTER CUT
2. ADAPTER - TERMINATOR, LEFT HAND, CENTER CUT
3. CUTTING TOOTH - LEFT HAND
4. CUTTING TOOTH - RIGHT HAND
5. ADAPTER - TERMINATOR, LEFT HAND, 6 INCH CUT
6. ADAPTER - TERMINATOR, RIGHT HAND, 6 INCH CUT
7. SPACER - TUBE, INSIDE MOUNT, USED WITH TERMINATOR HOLDER
8. SPACER - TUBE, INSIDE MOUNT, USED WITH CUTTING TOOTH
9. SPACER - TUBE, OUTSIDE MOUNT
10. BOLT - HEX HEAD 5/8 X 3 INCH
11. BOLT - HEX HEAD 5/8 X 3-3/4 INCH, 6 INCH TERMINATOR CUT
12. LOCKNUT -5/8 INCH
NOTE:
Repeat the tooth sequence shown until the chain is complete.
NOTE:
If additional information is needed, see your Astec dealer for part numbers and quantities of items shown when
replacing worn or missing parts.
CENTER CUT
10.16 cm (4 INCH) CUT
12
3
10
1
CENTER CUT
10.16 cm (4 INCH) CUT
15.24 cm (6 INCH) CUT
6
4
7
2
3
4
5
15.24 cm (6 INCH) CUT
15.24 cm (6 INCH) CUT
15.24 cm (6 INCH) CUT
12
9
11
8
To Next Page
