Chapter 4: Motherboard Information
4-18

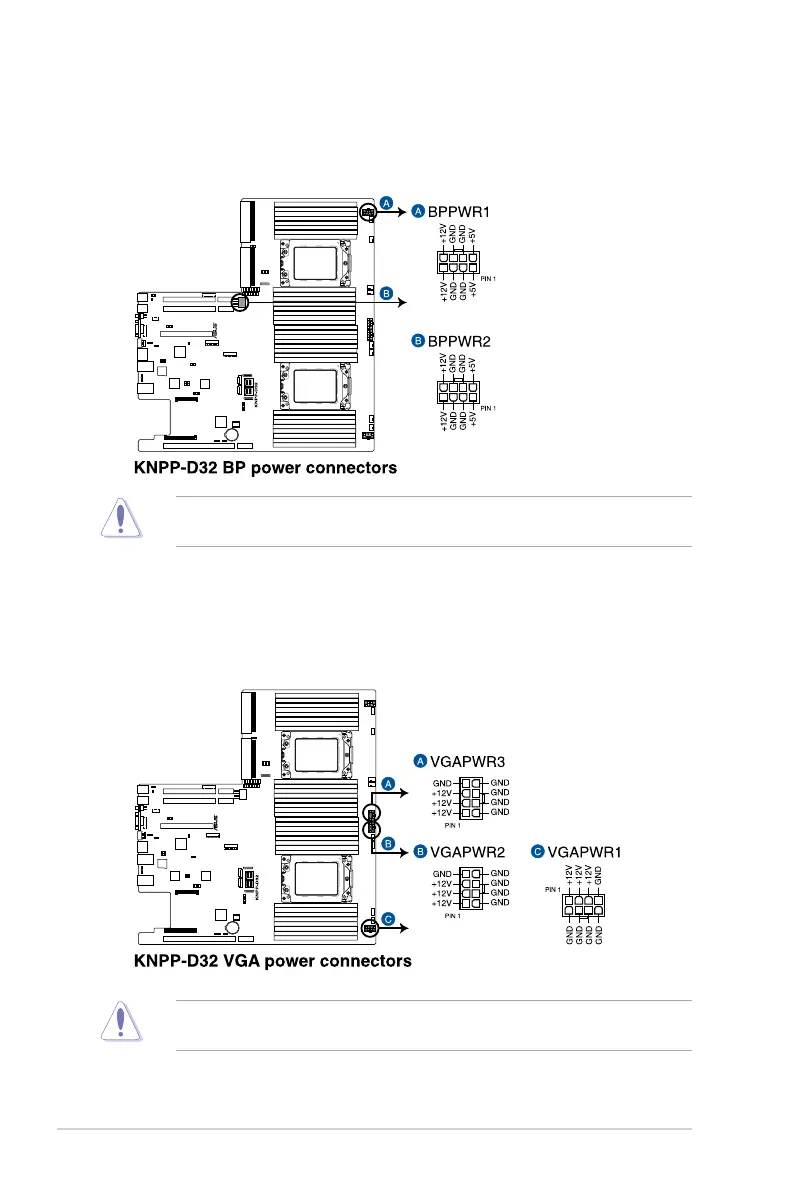

11. Back panel power connectors (8-pin BPPWR1-2)
These connectors are for the power supply plugs that connects to the back panel. The
power supply plugs are designed to t these connectors in only one orientation. Find
the proper orientation and push down rmly until the connectors completely t.
12. VGA power connectors (8-pin VGAPWR1-3)
These connectors are for the power supply plugs that connects to the VGA card. The
power supply plugs are designed to t these connectors in only one orientation. Find
the proper orientation and push down rmly until the connectors completely t.
DO NOT connect the back panel to these connectors. Doing so may cause system boot
errors and permanent damage to your motherboard or device.
DO NOT connect VGA cards to these connectors. Doing so may cause system boot errors
and permanent damage to your motherboard or device.
