Fiche # 656f – Synchro Test
Version 1.04a User guide ATEQ 6th series Page 1/2
SYNCHRO TEST
The "SYNCHRO TEST" (Synchronization test) function leave the choice to the user to go to the
test step, using the input configured for this function. This function is only available on the leak
test.

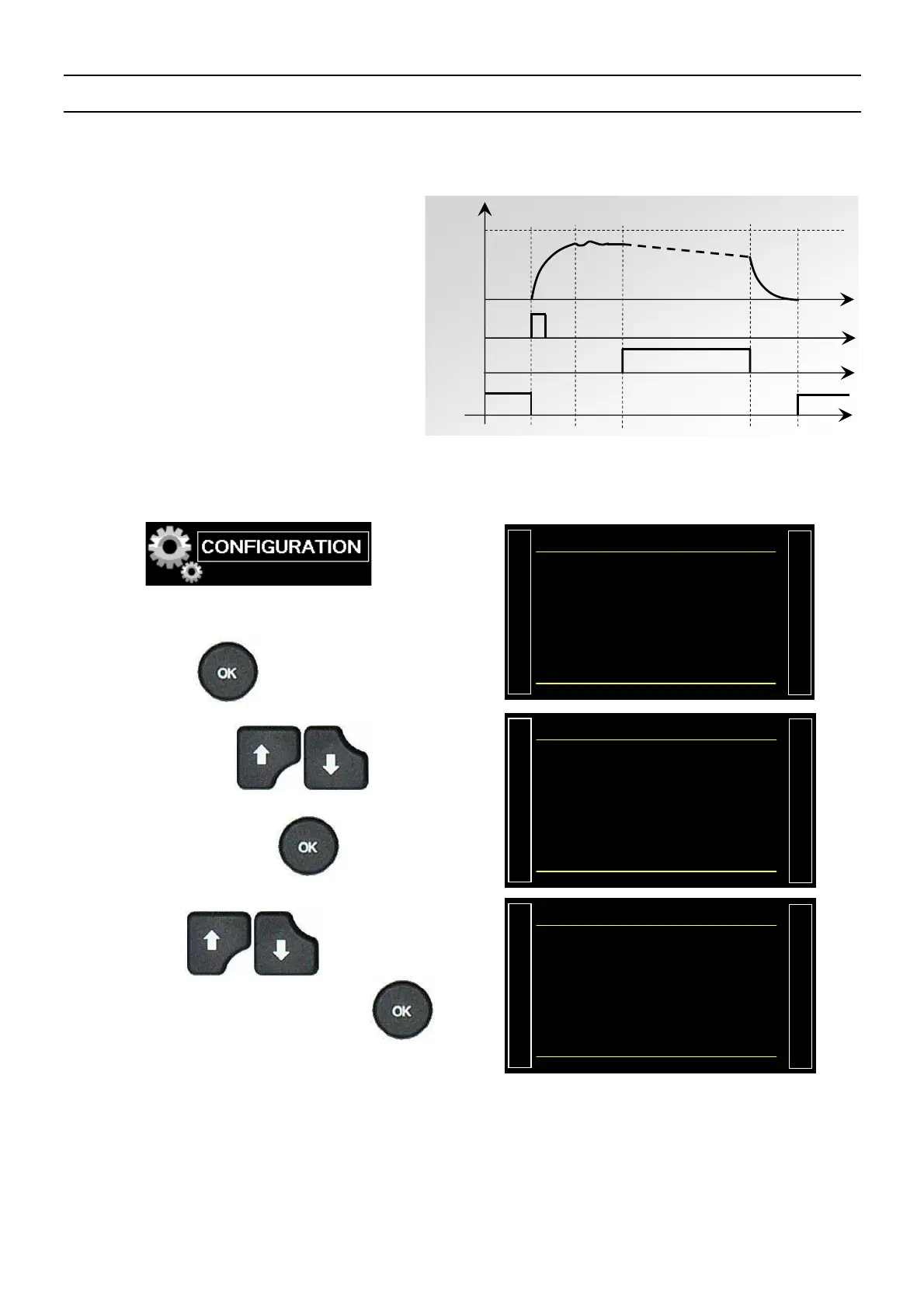

Cycle chart:
The jumps from "Stabilization" to "Test"
and "Test" to "Dump" are validated by
the input 7; the test time will be done by
the user or the PLC.
If a test time is programmed, this will
force the end of cycle if the
synchronization signal won't be down
before the end of the test time
(test time = time out).
Start
Fill Stab
Test
Dump
Sync.
Test
End of
cycle
Test time = time out
1. PROCEDURE
From the "CONFIGURATION" menu, select
the "AUTOMATISM" menu and then press the
button.
/#+0%10(+)74#6+10
LANGUAGE : English
PNEUMATIC
Ź AUTOMATISM
SECURITY
MISCELLANEOUS
Then by using the arrows,
select the "INPUTS CONFIG" menu and
validate with the
key.
#+0%10(+#761/#6+5
USB : SUPERVISION
RS232 : PRINTER
Date & Time
OUTPUTS CONFIG.
Ź INPUTS CONFIG.
By using the arrows, select
the I/O menu and validate with the
key.
#761/1762765%10(+)
Ź I/O
VALVES CODES
