ATEQ F670 - Configuration

Sheet #613u – Sealed components
Version 1.04a User guide ATEQ 6th series Page 6/8
3. CONFIGURATION

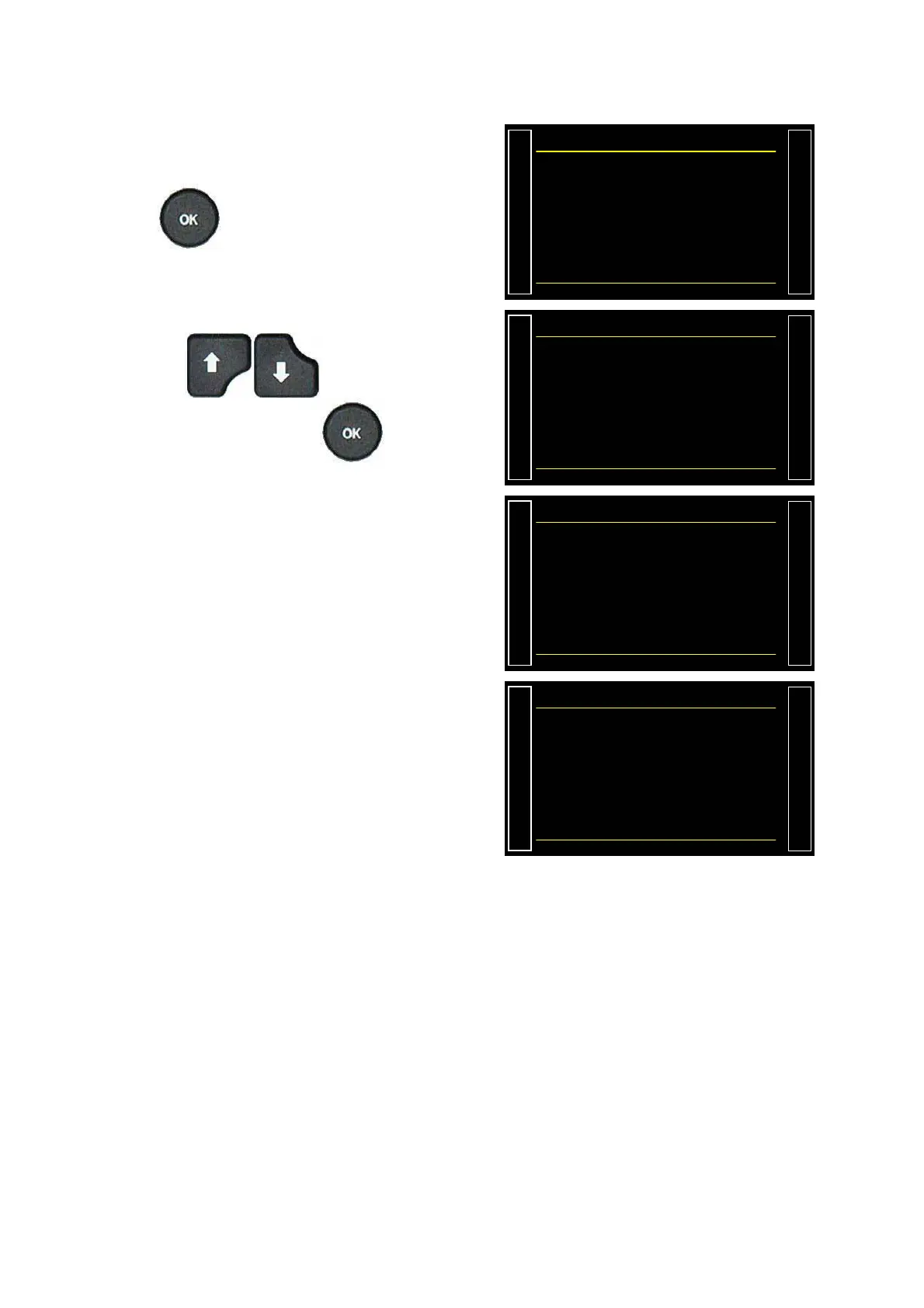

Activate the function or check if it checked.
Press the
key, the cursor slide to the
right hand.
2#4#/2T

(70%6+10
ŹSEALED PART : No
More functions…
By using the arrows, select
"Yes" and validate with the
key.
2#4#/2T(70%6+10
SEALED PART : Yes Ż
More functions…
Select the mode: "
STANDARD" or
"LARGE LEAK".


(70%6

5'#.'&%1/2
Ź STANDARD
LARGE LEAK
When selected, two parameters are added to
the program: "Fill volume time" and
"Transfer time" that you have to inform (the
transfer parameter can't be less than 0.5s).
2#4#/2T
Ź TYPE : LEAK TEST
COUPL. A : 0.0 s
FILL VOL : 0.5 s
TRANSFERT : 0.5 s
FILL TIME : 1.0 s
STAB TIME : 2.0 s
TEST TIME : 1.5 s
DUMP TIME : 0.5 s
