Calibrating tools and equipment ACTA 4000 User Guide
90 (136) 2008-12 9836 4171 01

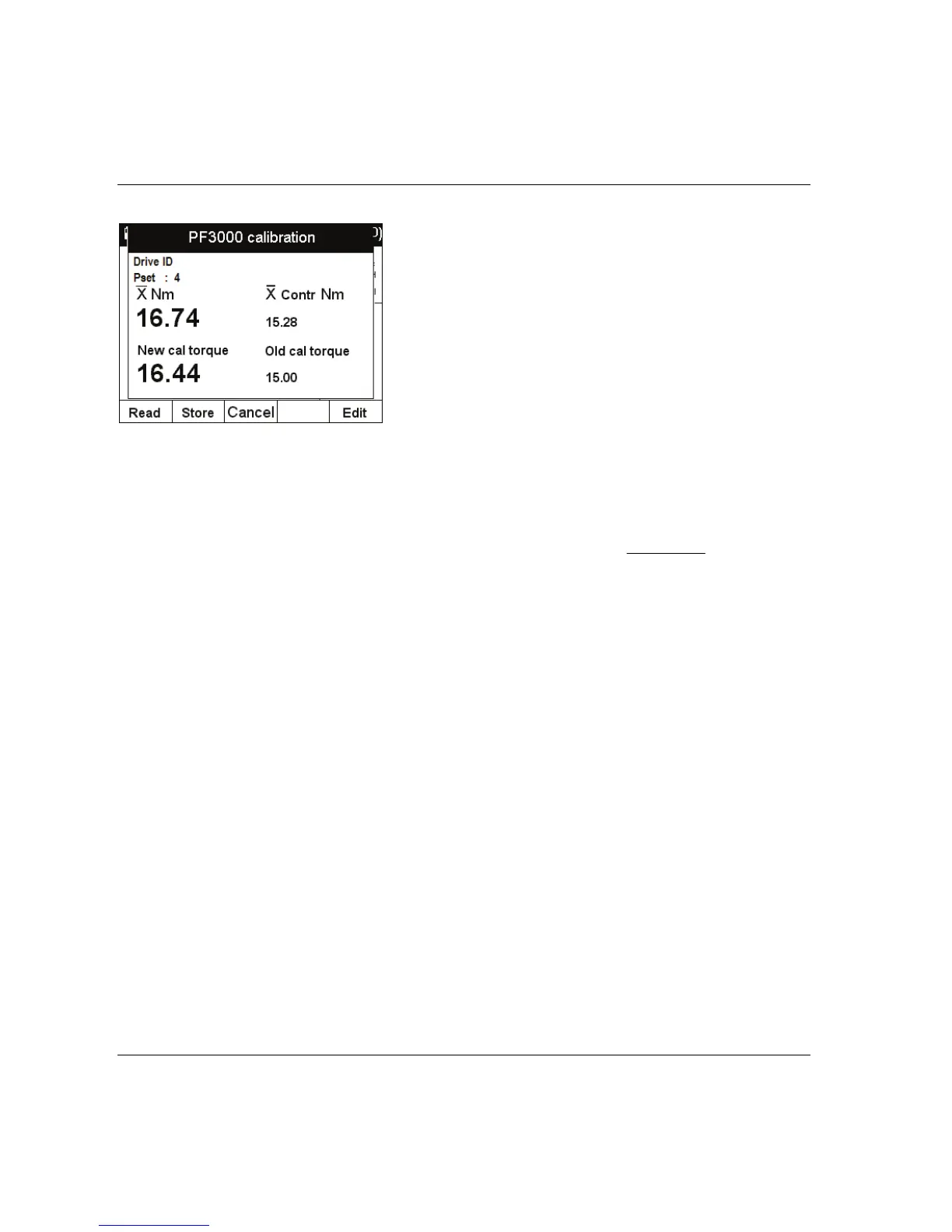

Display
text
Comments
Drive ID
Controller identification
P-Set
Parameter set used. Pset is created in
ToolsTalk QAT, otherwise not displayed
X bar
Mean torque value.
X bar Contr
Mean controller torque. Values are manually
entered or read from controller. Manually
entered if communication not set up to
controller.
New cal
torque
New calibration torque
XbarContr
Xbar
ueOldcaltorqueNewcaltorq =
Old cal
torque
Old calibration torque. (Automatically read
from PF)
Soft key Comments
Read
1
Read calibration value from controller.
Store
2
If confirmed, the tool is updated and calibration data is stored in a backup tool. If not
stored, the calibration data is saved in a backup tool, but the tool is not updated.
Printout question is asked.
Cancel
Close window.
Edit
Change the calibration torque.
1
Only if RS232 or Ethernet communication is selected. Not PF 2000
2
Only if Manual input communication is selected.
For PF 2000,
Done does not store in database or make backup tool.
