ACTA 4000 User Guide Calibrating tools and equipment
9836 4171 01 2008-12 91 (136)
Power MACS calibration

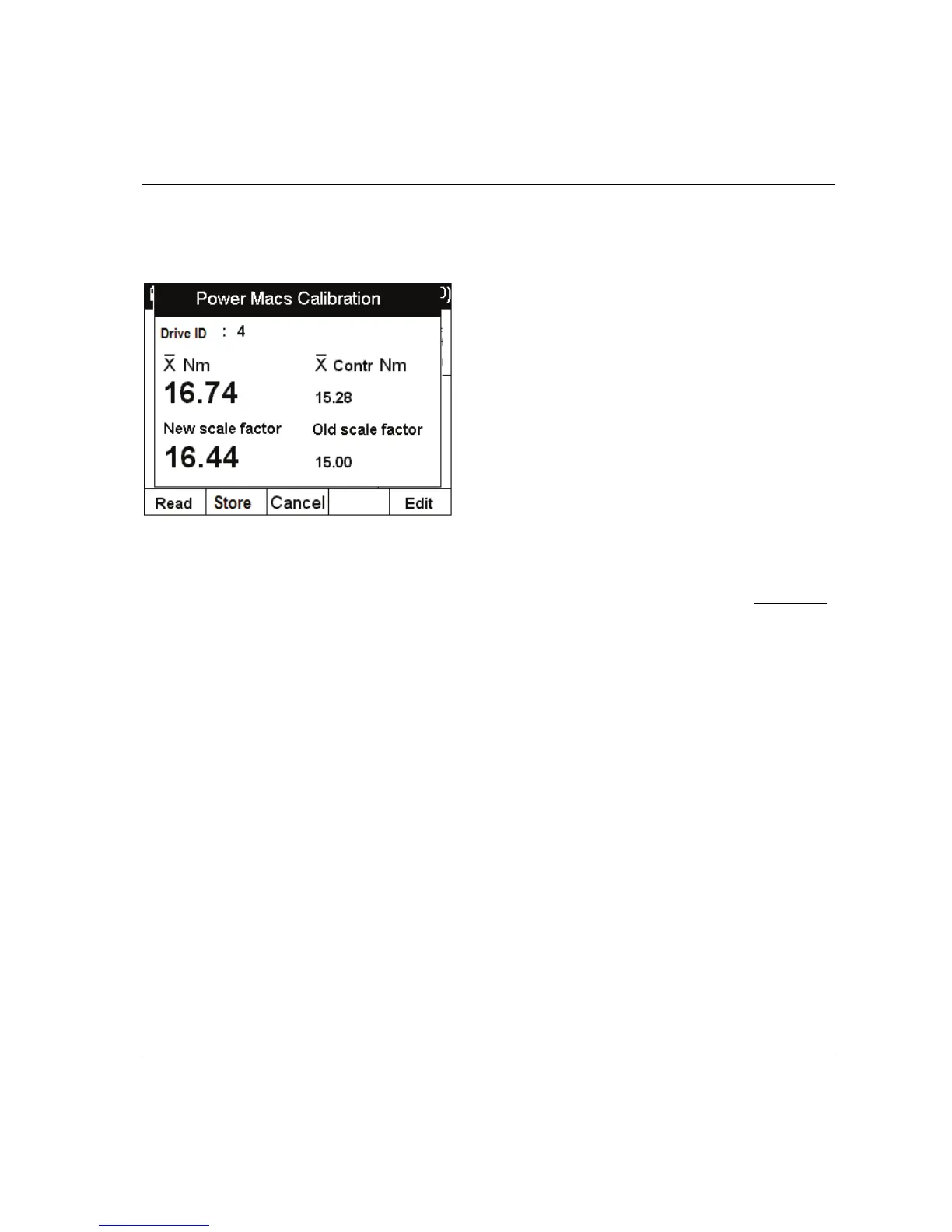

For tools controlled by PowerMACS controller, the following dialog box appears when calibrating.
Display text Comments
P-Set
Parameter set used. Pset is created
in ToolsTalk QAT, otherwise not
displayed
X bar
Mean torque value.
X bar Contr
Mean controller torque. Values are
manually entered or read from
controller. Manually
entered if communication not set up
to controller.
New scale factor
New calculated scale factor for
controller.
XbarCont
Xbar
ctorOldScaleFactorNewScaleFa ⋅=
Old scale factor
Old scale factor in controller. Read
from PowerMACS.
Soft key Comments
Read
1
Read scale factor from controller.
Store
Mark tightening operations as used in calibration. Save back-up tool question asked.
Printout question is asked.
Cancel
Close window.
Edit
Change the new scale factor.
1
Only if RS232 or Ethernet communication is selected.
