4.8 Installation instructions GSM alarm
Hardware installation

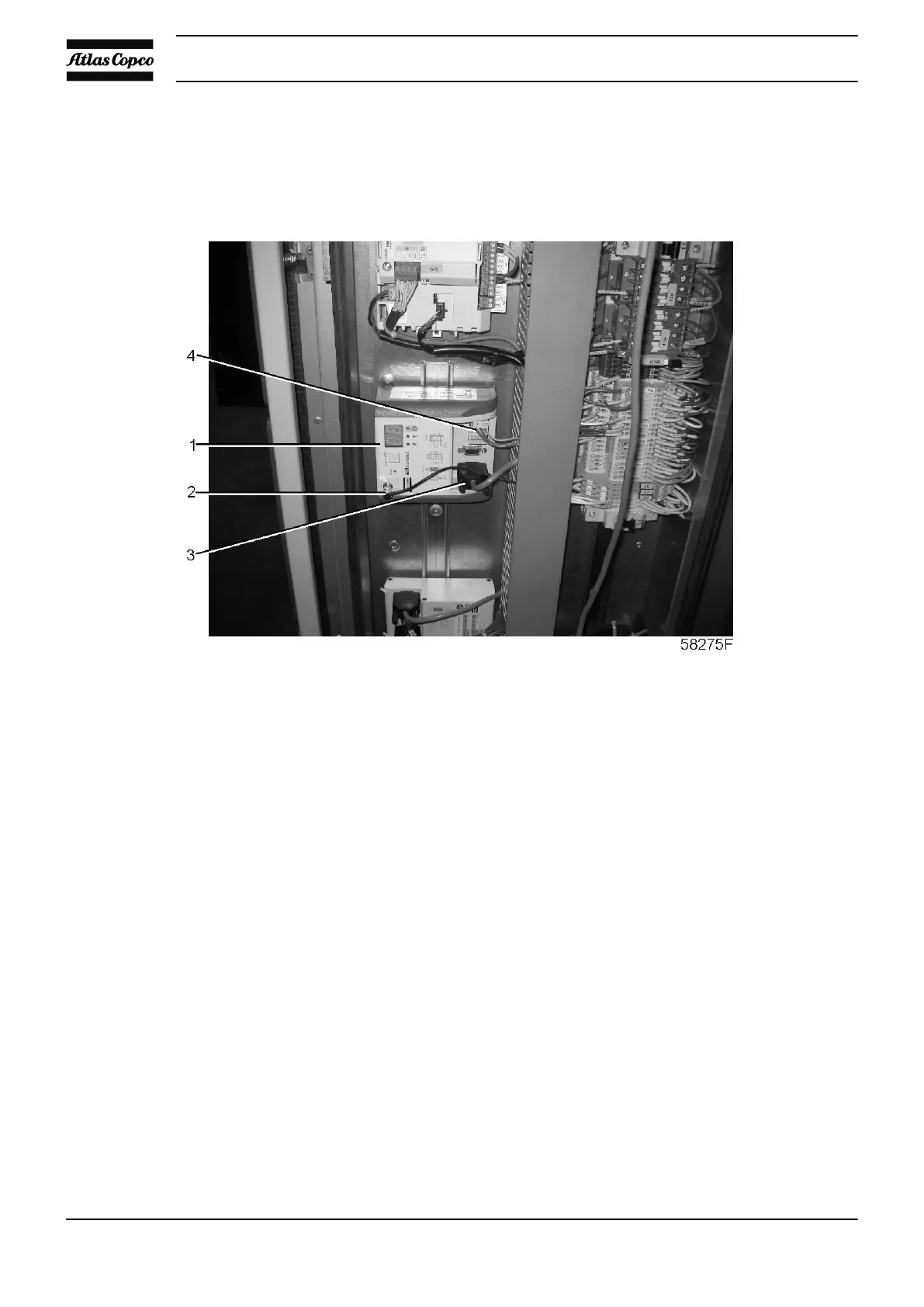

Fix the Air contact module (1) to the rail as shown below.
Assemble the power supply cable, using:
• connector X150.3 (ordering number 1088 0037 64)
• two power wires (ordering number 0017 2010 40)
• one earth wire (ordering number 0017 2070 40)
• connector 12X14 (ordering number 1088 0037 62; the connector is supplied loose with the Air contact
module)
Install the power supply cable, plug the 3 pole connector (12X14) (4) in the Air contact module.
Plug the LAN cable (1622 0676 20) (3) into the Elektronikon (Mk4) and in the Aircontact module (5).
Instruction book
108 2920 1728 05
