On air-cooled compressors with energy recovery or water-cooled compressors, the oil temperature is
controlled by a thermostatic or electronic valve to avoid overcooling and consequently condensation in the
air receiver (AR).
In the air receiver (AR) most of the oil is removed from the air centrifugally. Almost all of the remaining oil
is removed by the separator element.
2.3 Cooling and condensate system
Condensate drain system

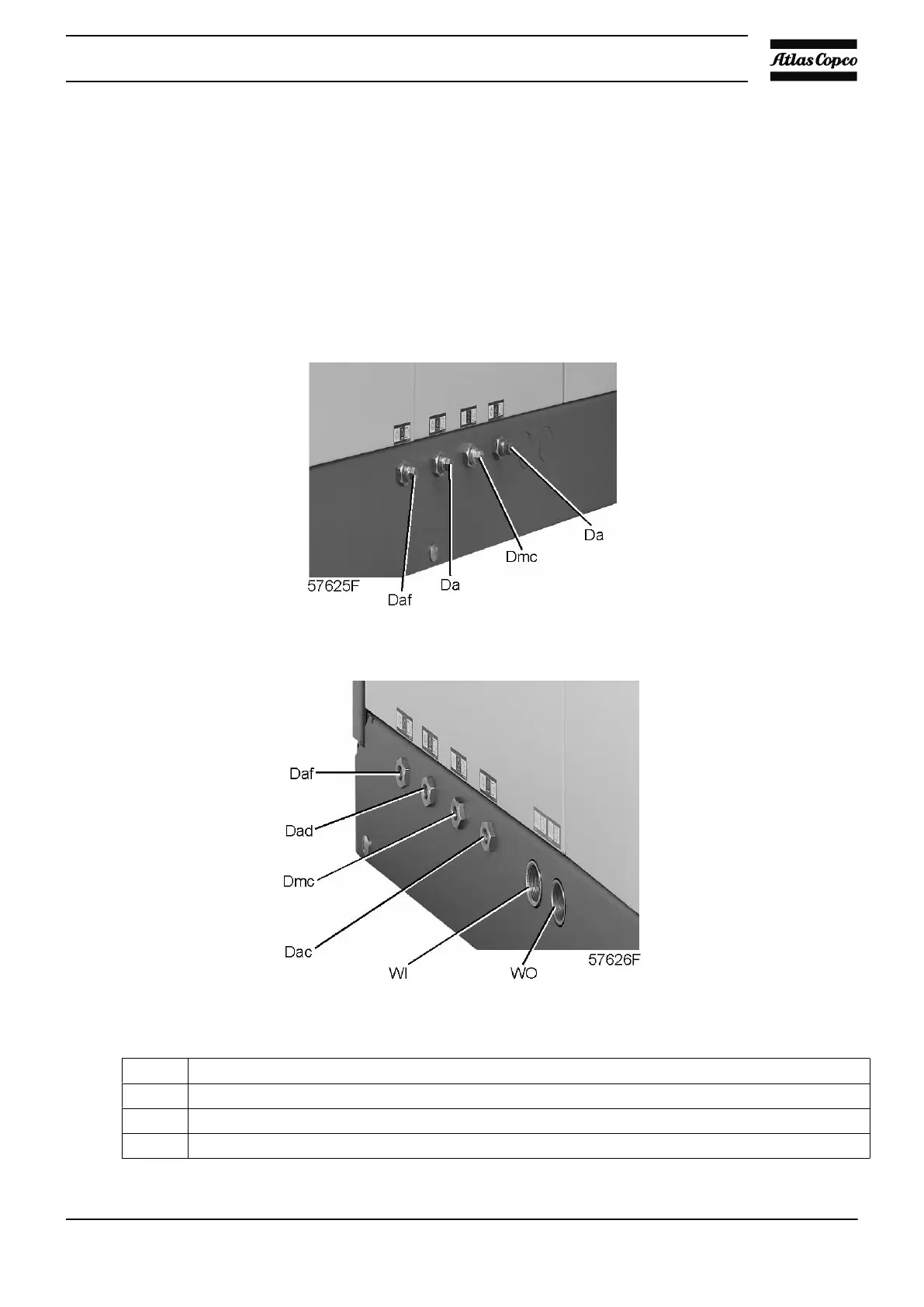

Condensate drains of air-cooled GA
Condensate drains of water-cooled GA
Dac Automatic condensate drain, compressor
Dad Automatic condensate drain, dryer (Full-Feature compressors only)
Daf Automatic condensate drain, DD filter (option)
Dmc Manual condensate drain
