Ref Qty Partnumber Name Extra info
1 0663 2109 68 O-ring Valve to hose assembly
16 1 1623 1255 00 Hose assembly
1 0663 2109 68 O-ring Hose assembly to vessel
2 0147 1365 03 Bolt, M10 x 40 Hose assembly to vessel
2 0301 2344 00 Washer Hose assembly to vessel
1 2250 2528 00 Plug screw, 1 1/4" In hose assembly
1 0661 1000 31 Seal washer In hose assembly
1 0574 8235 11 Hose assembly Drain cooler
1 1614 9252 00 Plug End of hose assembly
1 1079 5840 15 Nipple Between cooler & hose assembly
1 0661 1000 27 Seal washer Between cooler & hose assembly
17 2 1089 0574 70 Temperarure sensor

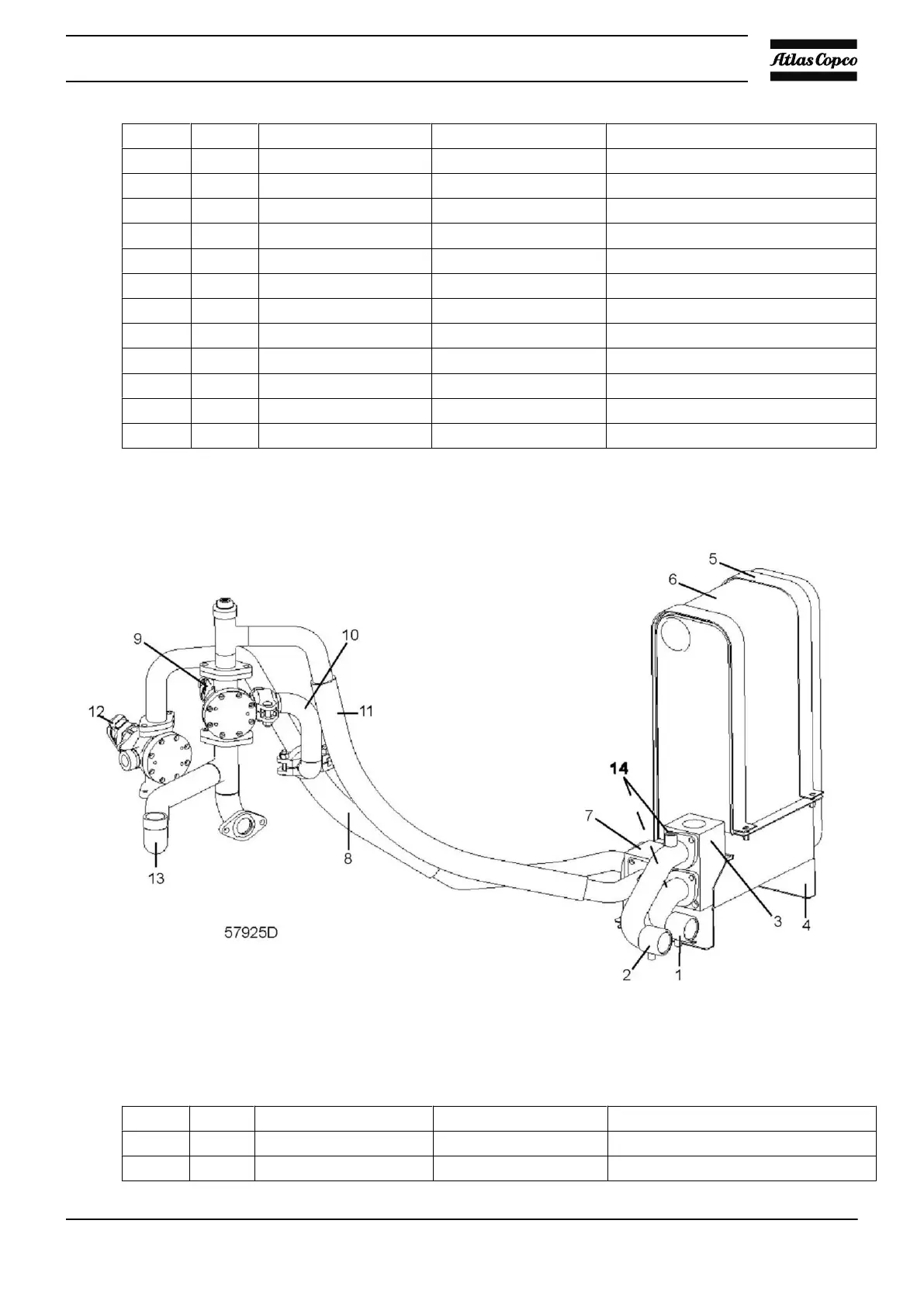

Water-cooled compressors
Ref Qty Partnumber Name Extra info
1 1 1623 2823 00 Pipe
1 0147 1322 03 Bolt, M8 x 16 Pipe to frame
Instruction book
2920 1728 05 37
