6. Remove the plug and add oil until the level reaches the filler opening.
7. Fit and tighten the plug (FC).
Unlock the emergency stop button, select the STOP icon and press reset before starting.
Air filter

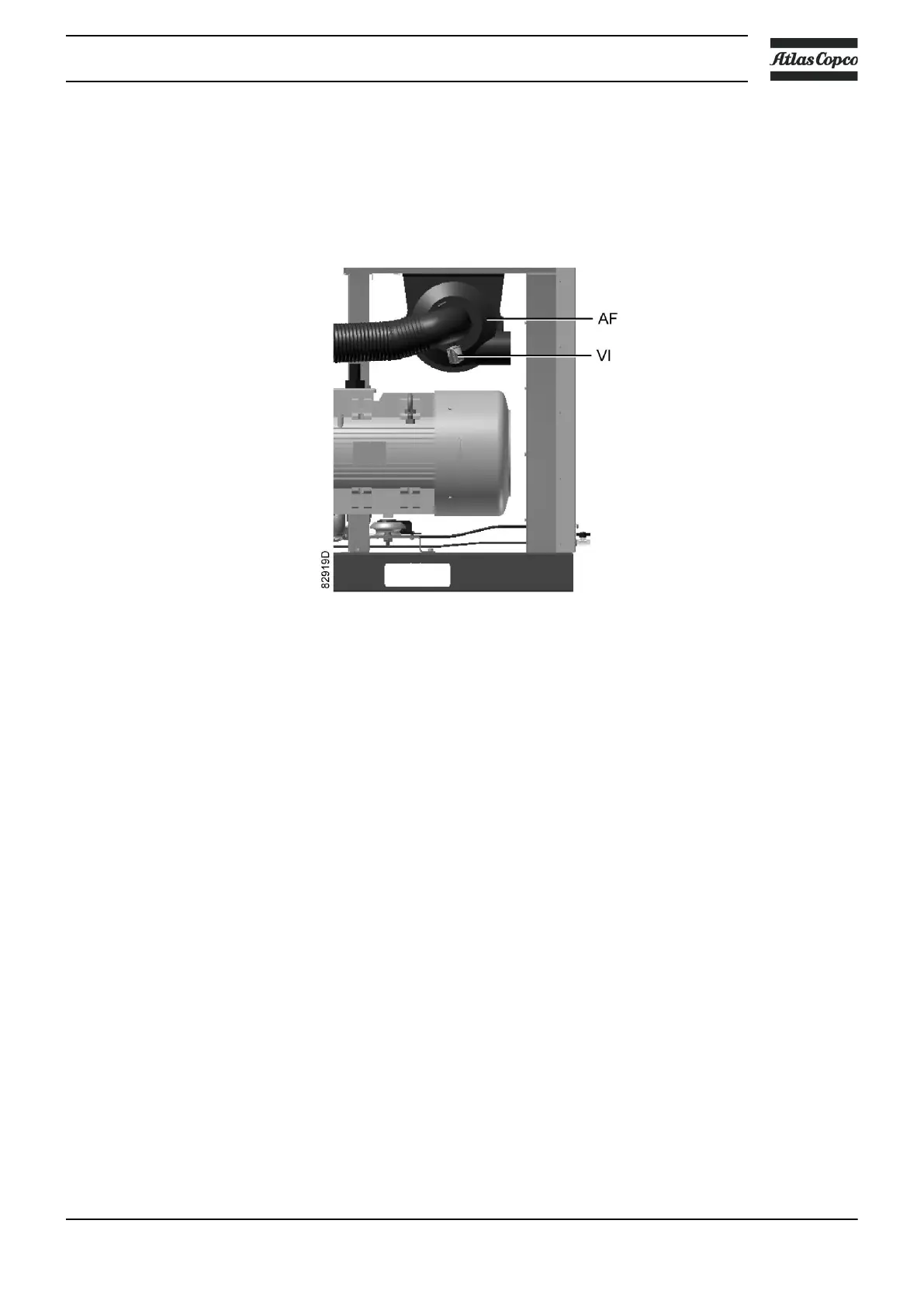

Position of the service indicator
Regularly check the service indicator. If the colored part of service indicator (VI) shows full out,
replace the air filter element. Reset the service indicator by pushing the knob in the extremity of
the indicator body.
Drains
Regularly check that condensate is discharged during operation. See section Condensate
system. The amount of condensate depends on environmental and working conditions.
If an OSCi is installed, also check the level in the oil collector. See section Maintenance OSCi.
Cooling water flow
On water-cooled compressors, check regularly the cooling water flow, as indicated in section
Starting.
8.5 Checking the display
Compressors with Elektronikon™ Swipe controller:
Instruction book
2920 7109 51 137
