Water-cooled air cooler and oil cooler
2.5 Condensate system
Drain connections

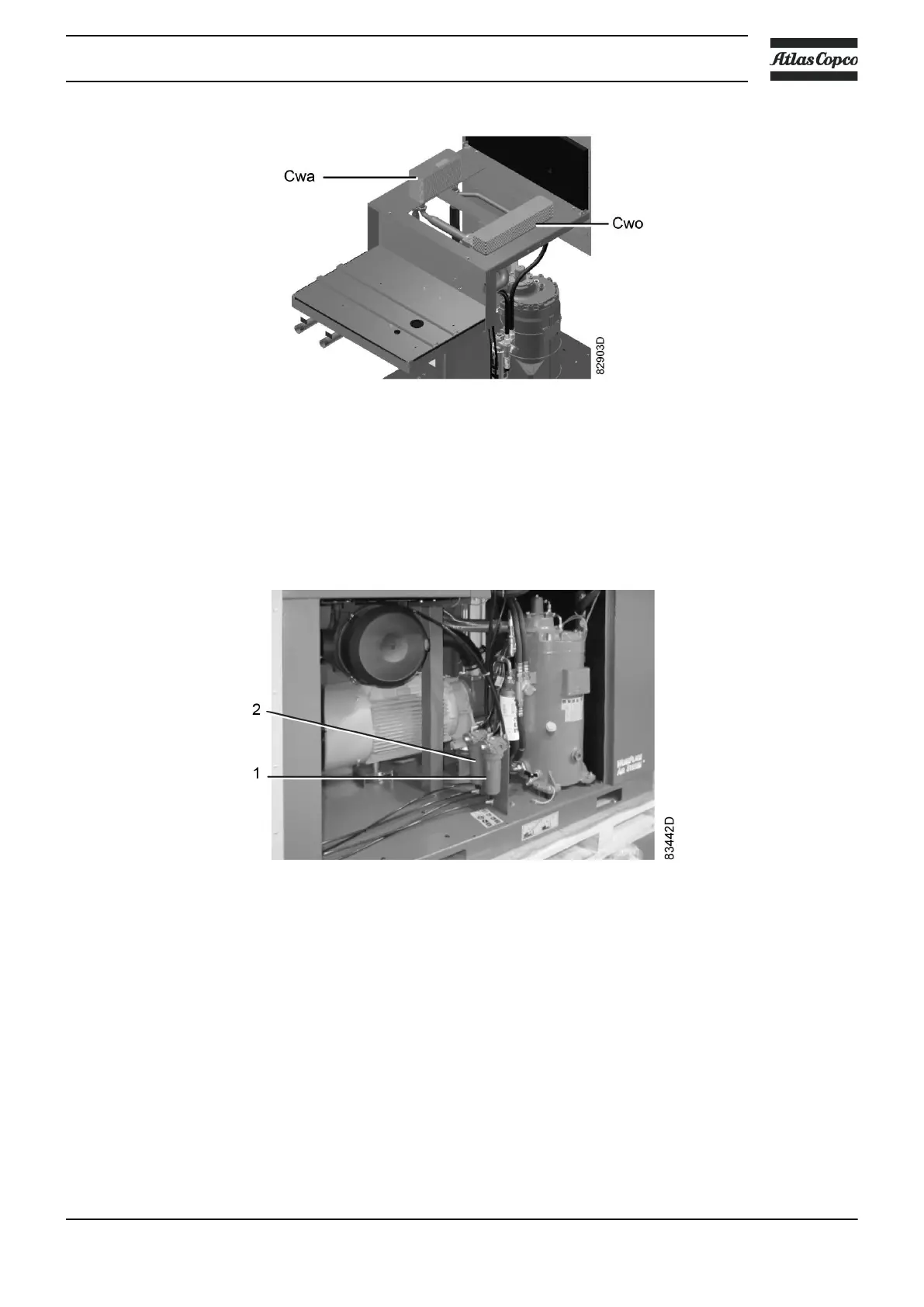

The compressors have an centrifugal water separator WSD25 (1). The condensate formed in the
air cooler accumulates in the collector. When the condensate reaches a certain level, it is
discharged through the automatic drain outlet (Da). Also, the condensate water can be
discharged manually through the manual drain outlet (Dm).
On Full-Feature compressors, an additional centrifugal water drain WSD25 (2) is provided. The
condensate trap of the heat exchanger is drained by WSD25 and discharged through automatic
drain outlet (Da1). Also, the condensate water can be discharged manually through the manual
drain outlet (Dm1).
