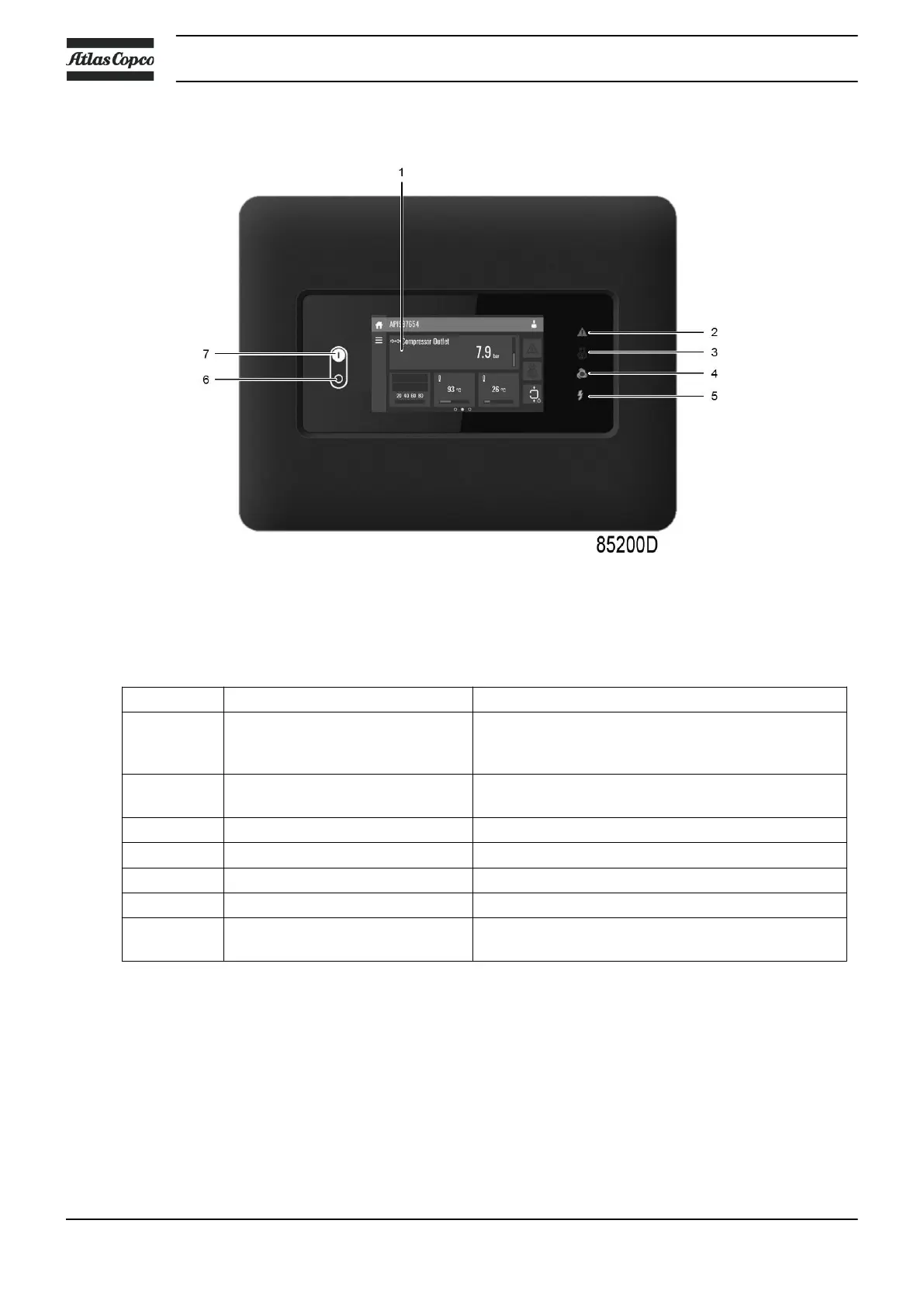

4.2 Control panel
Control panel
Parts and functions
Reference Designation Function
1 Touchscreen Shows the unit operating condition and a number of
icons to navigate through the menu.
The screen can be operated by touch.
2 Warning sign Flashes in case of a shut-down, is lit in case of a
warning condition.
3 Service sign Is lit when service is needed.
4 Operation sign Is lit when the unit is running in automatic operation.
5 Voltage sign Indicates that the voltage is switched on.
6 Stop button This button stops the unit.
7 Start button This button starts the unit. The operation sign (4)
lights up. The controller is operative.
Instruction book
58 2920 7109 51
