contact with other components of the compressor. Use the cable holder on vessel 2 to fix
the redundant parts of the tubes and wires. See to it that the outlet tube and the test tube
are nowhere higher than the respective outlet connections on vessel 3 (View of OSCi outlet).
11. Pour clean water along the inner edge of vessel 1 until water flows out of the outlet tube (1-
View of OSCi outlet), or until the water reaches the bottom of the sensor chamber (visible
through the sight-glass). The oleophilic filter will start to float. Do not push the filter down.
12. Put the cover back on the vessel and tighten the clamping ring.
13. Close/reposition the compressor bodywork.
5.9 Service kits
Atlas Copco has a complete range of service kits available. Service kits comprise all parts
needed for servicing components and offer the benefits of using genuine Atlas Copco parts while
keeping the maintenance budget low.

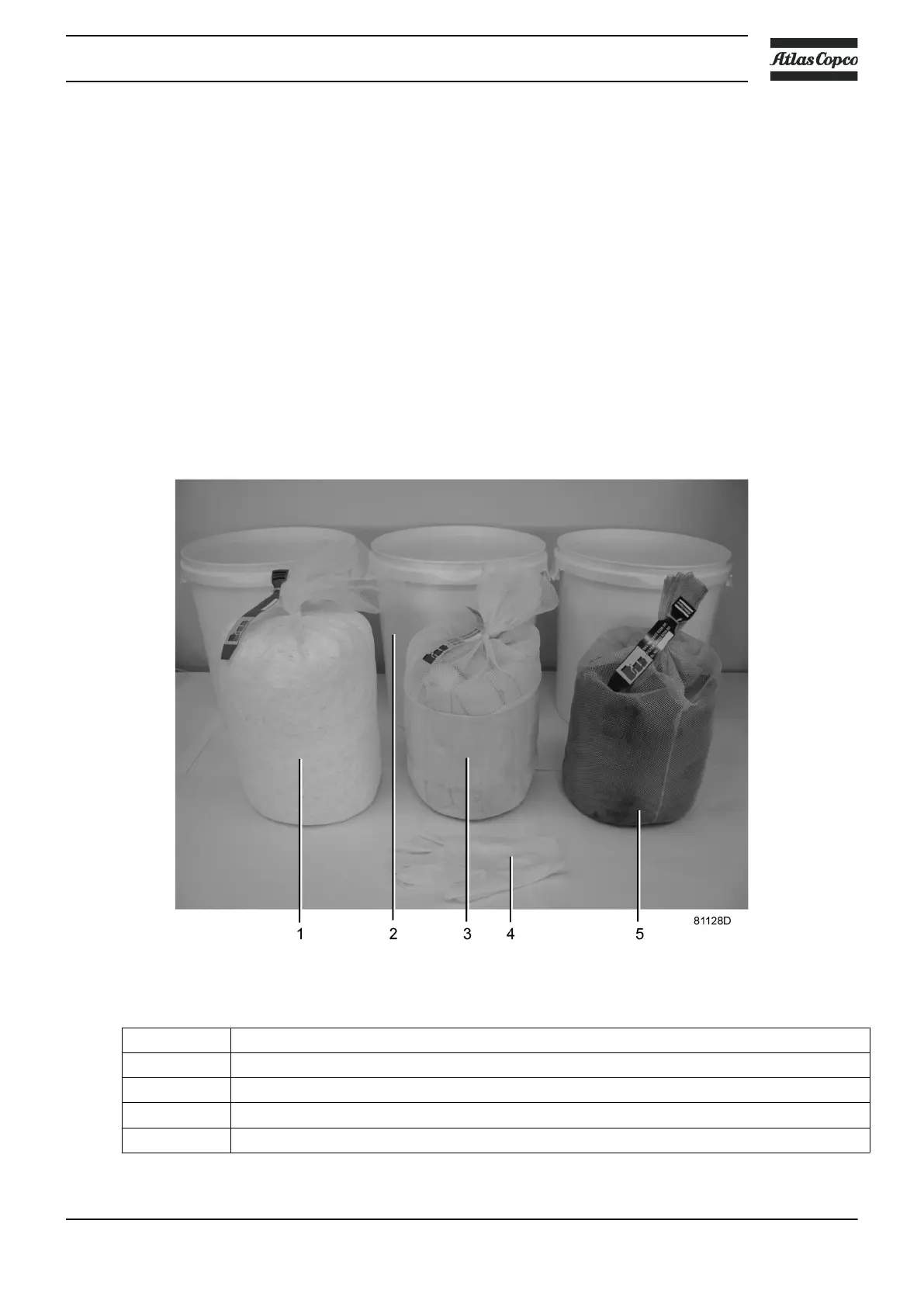

OSCi service kit
1 Oleophilic filter
2 Buckets (can be used to receive the used filters after maintenance)
3 OGC filter
4 Gloves
5 Activated carbon filter
Instruction book
2920 7109 51 103
