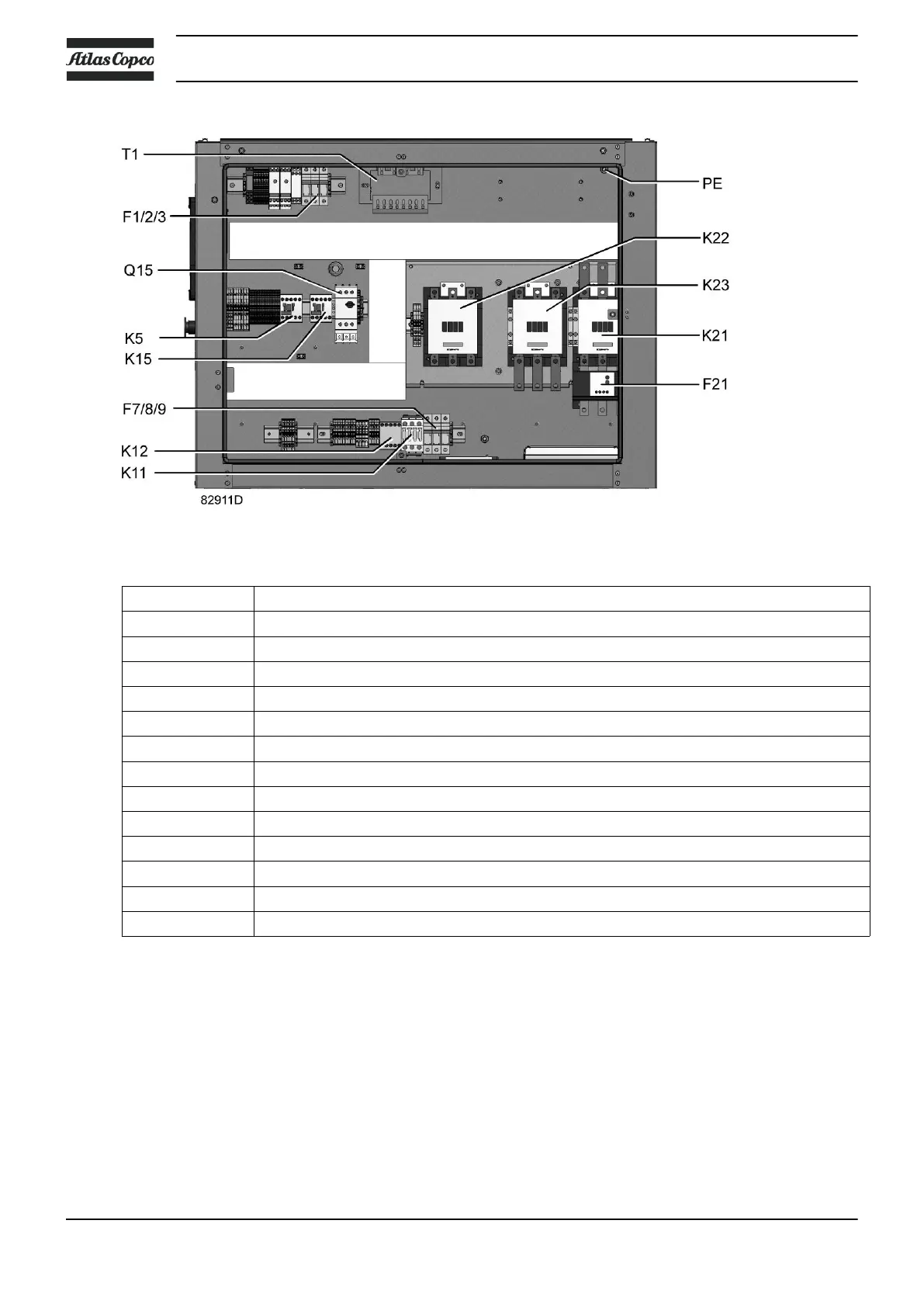

Typical Example of electric cubicle on GA 30
+
up to GA 45
+
Reference Designation
F1/2/3 Fuses
F7/F8/F9 Fuses (only on Full-Feature)
F21 Overload relay, compressor motor
Q15 Circuit breaker, fan motor (on air-cooled compressors)
K5 Auxiliary relay
K11 Auxiliary contactor
K12 Auxiliary contactor
K15 Auxiliary contactor, fan motor (on air-cooled compressors)
K21 Line contactor
K22 Star contactor
K23 Delta contactor
T1 Transformer
PE Earth terminal
Electrical diagram
The complete electrical diagram can be found in the electric cubicle.
2.8 Air dryer
(On compressors with integrated dryer only)
Instruction book
24 2920 7109 51
