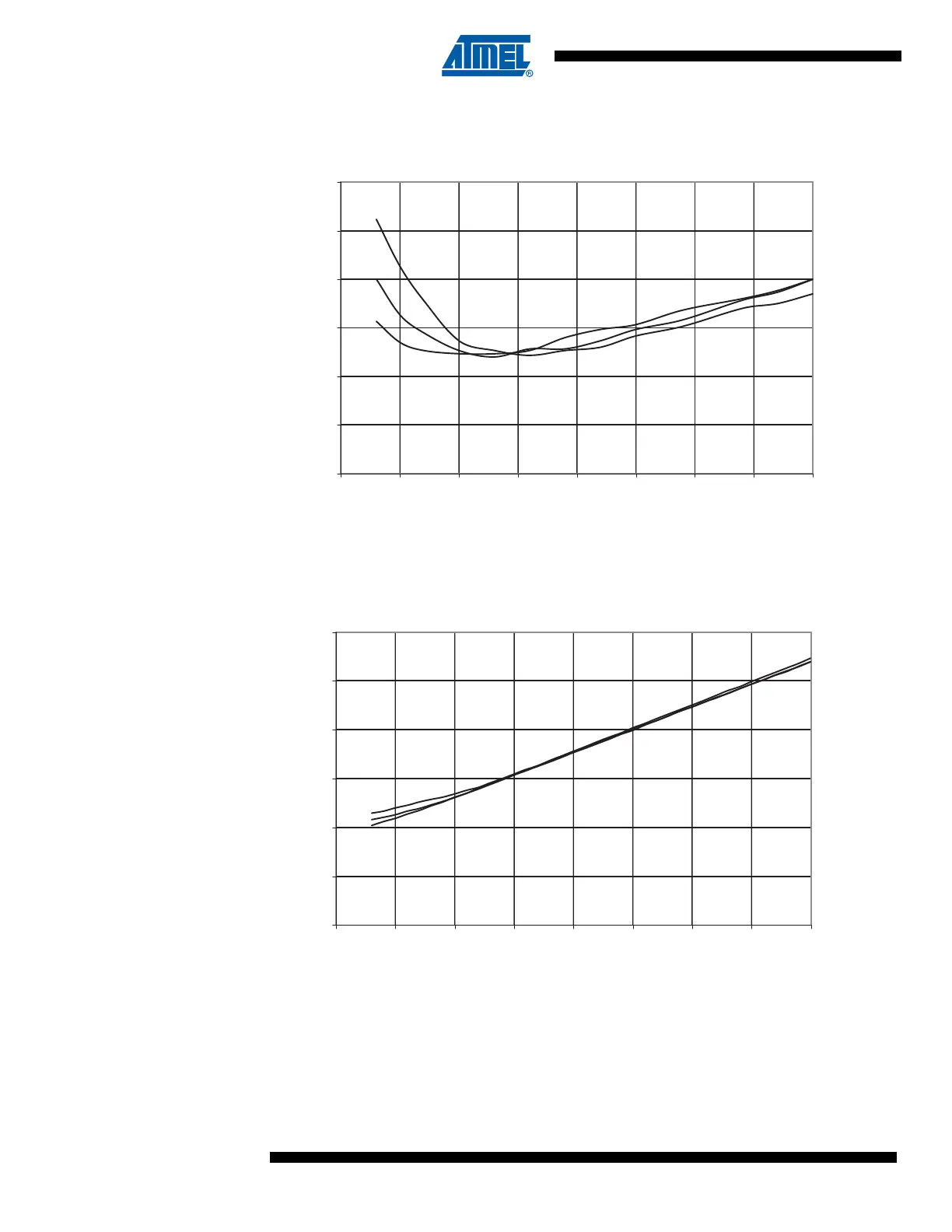

Figure 19-47. V
IH
-V
IL
: Input Hysteresis vs. V
CC
(I/O Pin)
Figure 19-48. V
IH
: Input Threshold Voltage vs. V
CC
(Reset Pin as I/O, Read as '1')
I/O PIN INPUT HYSTERESIS vs. V
CC
85 °C
25 °C
-40 °C
0
0.1
0.2
0.3
0.4
0.5
0.6
1.5 2 2.5 3 3.5 4 4.5 5 5.5
V
CC
(V)
Input Hysteresis (V)
RESET PIN AS I/O THRESHOLD VOLTAGE vs. VCC
V
IH
, RESET READ AS '1'
85 °C
25 °C
-40 °C
0
0.5
1
1.5
2
2.5
3
1.5 2 2.5 3 3.5 4 4.5 5 5.5
V
CC
(V)
Threshold (V)
