151
8126F–AVR–05/12
ATtiny13A

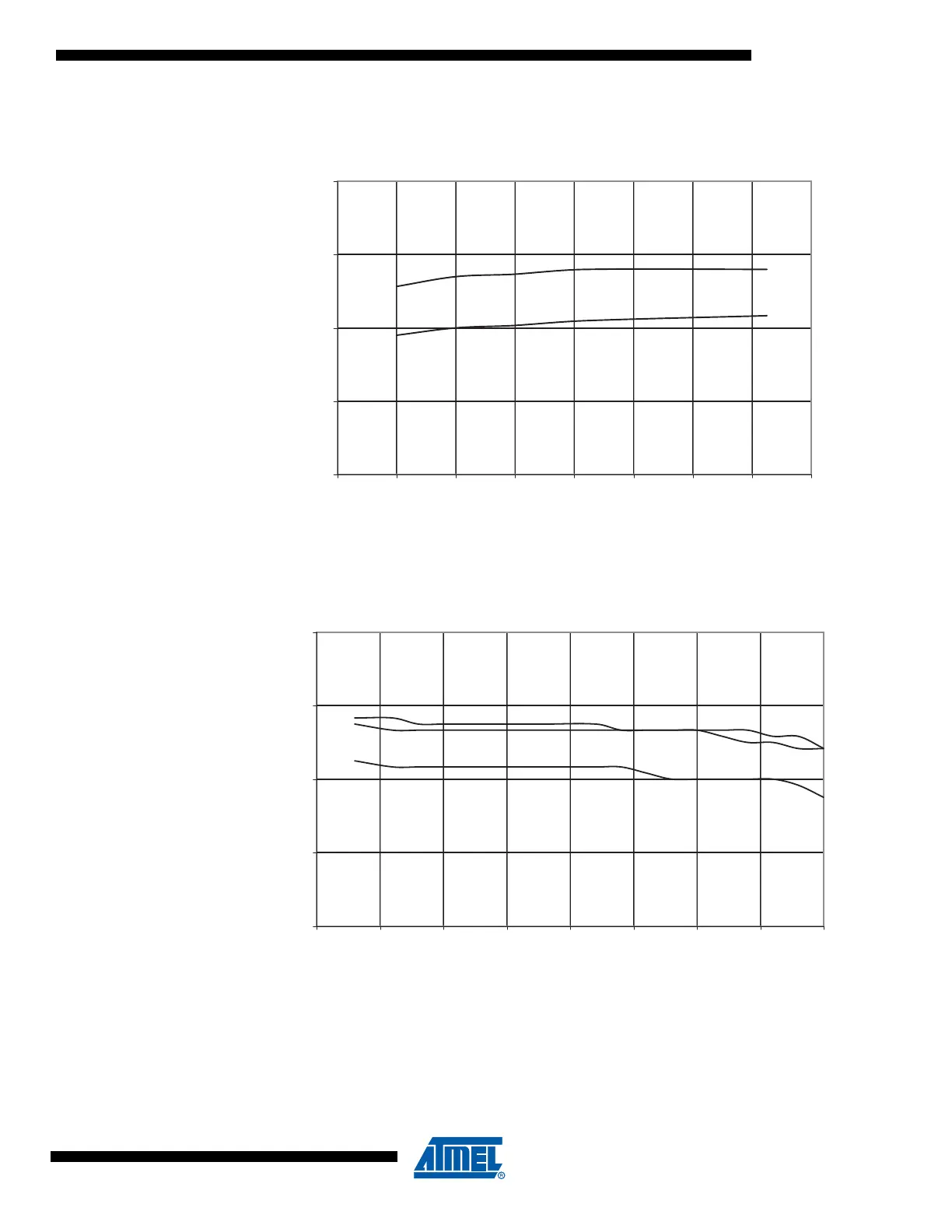

Figure 19-53.
BOD Thresholds vs. Temper
ature (BODLEVEL is 1.8V)
Figure 19-54.
Bandgap Voltage vs. V
CC
V
CC
RISING
V
CC
FALLING
BOD THRESHOLDS vs. TEMPERATURE
BODLEVEL = 1.8V
1.7
1.75
1.8
1.85
1.9
-60
-40
-20
0
20
40
60
80
100
Temperature (C)
Threshold (V)
BANDGAP VOLTAGE vs. V
CC
85 °C
25 °C
-40 °C
1.06
1.08
1.1
1.12
1.14
1.5
2
2.5
3
3.5
4
4.5
5
5.5
Vcc (V)
Bandgap Voltage (V)
150
152
