Atmel ATtiny26 User Manual

132
ATtiny26(L)
1477G–AVR–03/05

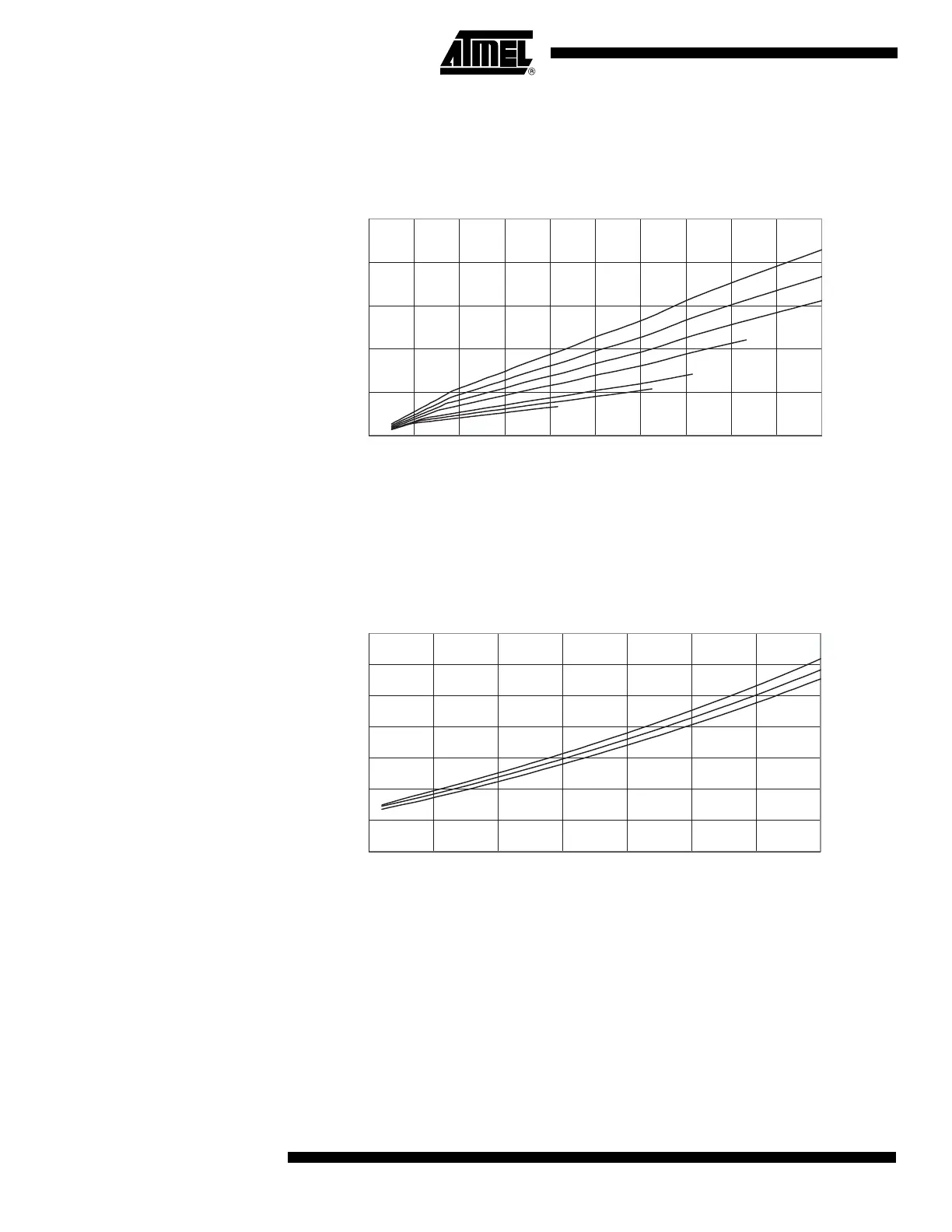

Figure 72. Active Supply Current vs. Frequency (1 - 20 MHz)
Figure 73. Active Supply Current vs. V
CC
(Internal RC Oscillator, 8 MHz)
ACTIVE SUPPLY CURRENT vs. FREQUENCY
1 - 20 MHz
0
5
10
15
20
25
0 2 4 6 8 101214161820
Frequency (MHz)
I
CC
(mA)
5.5V
4.5V
4.0V
3.3V
2.7V
3.0V
5.0V
ACTIVE SUPPLY CURRENT vs. V
CC
INTERNAL RC OSCILLATOR, 8 MHz
0
2
4
6
8
10
12
14
2 2.5 3 3.5 4 4.5 5 5.5
V
CC
(V)
I
CC
(mA)
85°C
25°C
-40°C
