Timer/Counters The ATtiny26(L) provides two general purpose 8-bit Timer/Counters. The
Timer/Counters have separate prescaling selection from the separate prescaler. The
Timer/Counter0 clock (CK) as the clock timebase. The Timer/Counter1 has two clocking
modes, a synchronous mode and an asynchronous mode. The synchronous mode uses
the system clock (CK) as the clock timebase and asynchronous mode uses the fast
peripheral clock (PCK) as the clock time base.
Timer/Counter0
Prescaler
Figure 36 below shows the Timer/Counter prescaler.

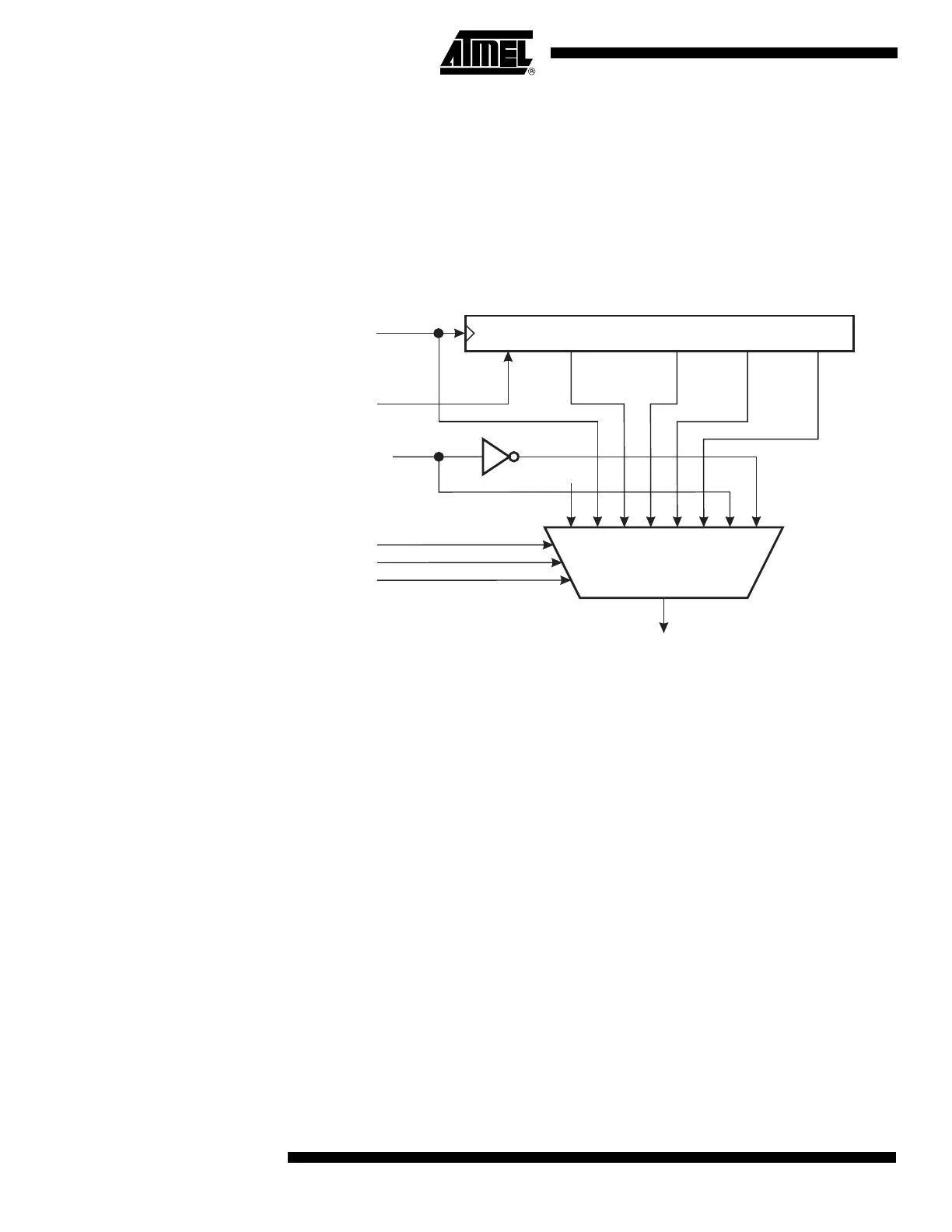

Figure 36. Timer/Counter0 Prescaler
The four prescaled selections are: CK/8, CK/64, CK/256, and CK/1024 where CK is the
oscillator clock. CK, external source, and stop, can also be selected as clock sources.
10-BIT T/C PRESCALER
0
TIMER/COUNTER0 CLOCK SOURCE
CK
T0(PB6)
PSR0
CLEAR
CS00
CS01
CS02
CK/8
CK/256
CK/1024
CK/64
To Next Page
