Packaging Information

20P3

2325 Orchard Parkway

San Jose, CA 95131

TITLE

DRAWING NO.

REV.

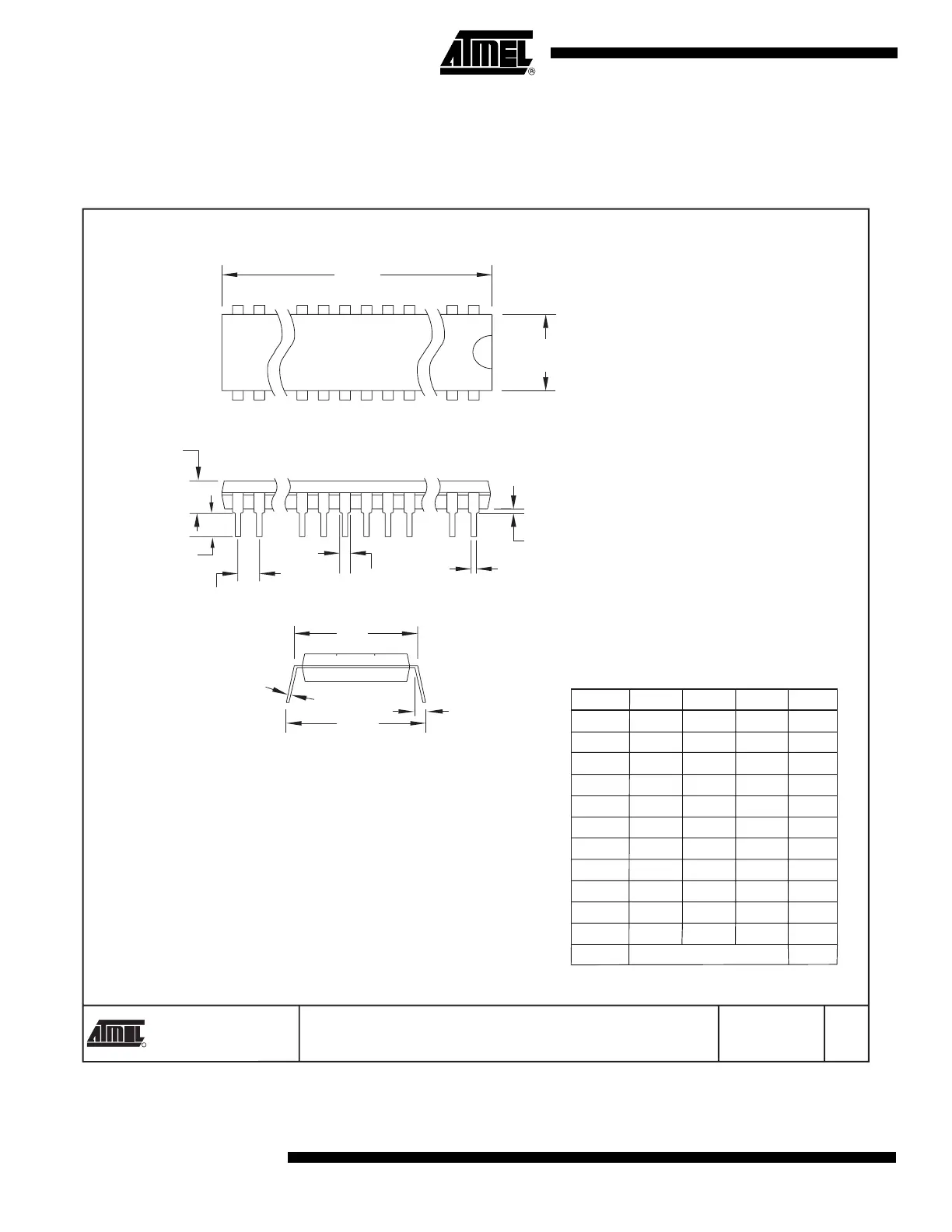

20P3, 20-lead (0.300"/7.62 mm Wide) Plastic Dual

Inline Package (PDIP)

20P3

1/12/04

SEATING PLANE

COMMON DIMENSIONS

(Unit of Measure = mm)

SYMBOL

MIN

NOM

MAX

NOTE

A – – 5.334

A1 0.381 – –

D 25.493 – 25.984 Note 2

E 7.620 – 8.255

E1 6.096 – 7.112 Note 2

B 0.356 – 0.559

B1 1.270 – 1.551

L 2.921 – 3.810

C 0.203 – 0.356

eB – – 10.922

eC 0.000 – 1.524

e 2.540 TYP

Notes: 1. This package conforms to JEDEC reference MS-001, Variation AD.

2. Dimensions D and E1 do not include mold Flash or Protrusion.

Mold Flash or Protrusion shall not exceed 0.25 mm (0.010").
