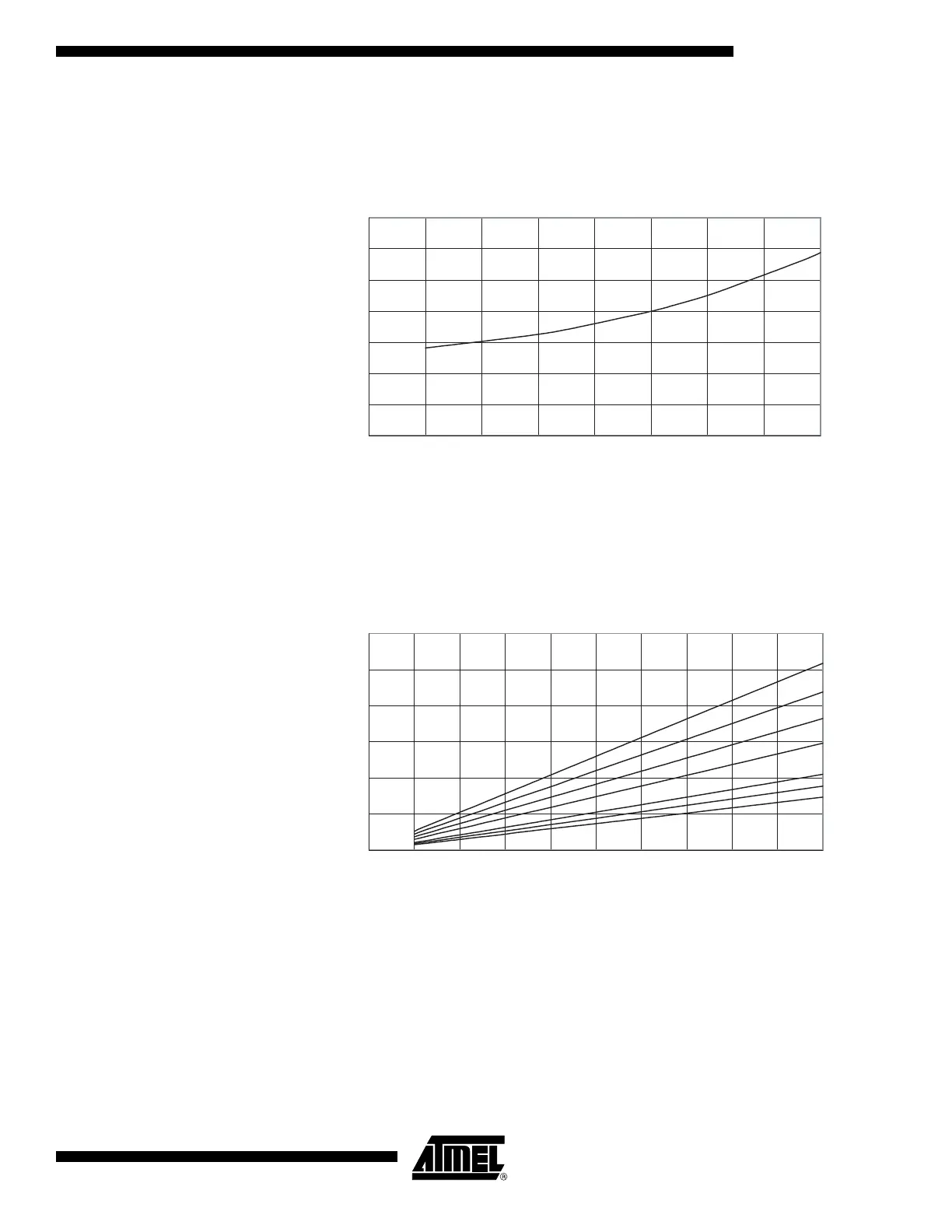

Figure 78. Active Supply Current vs. V
CC
(32 kHz External Oscillator)
Idle Supply Current Figure 79. Idle Supply Current vs. Frequency (0.1 - 1.0 MHz)
ACTIVE SUPPLY CURRENT vs. V
CC
32kHz EXTERNAL OSCILLATOR
0
10
20
30
40
50
60
70
1.5 2 2.5 3 3.5 4 4.5 5 5.5
V
CC
(V)
I
CC
(uA)
25°C
IDLE SUPPLY CURRENT vs. FREQUENCY
0.1 - 1.0 MHz
0
0.1
0.2
0.3
0.4
0.5
0.6
0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1
Frequency (MHz)
I
CC
(mA)
5.5V
4.5V
4.0V
3.3V
2.7V
3.0V
5.0V
