Atmel ATtiny26 User Manual

145
ATtiny26(L)
1477G–AVR–03/05

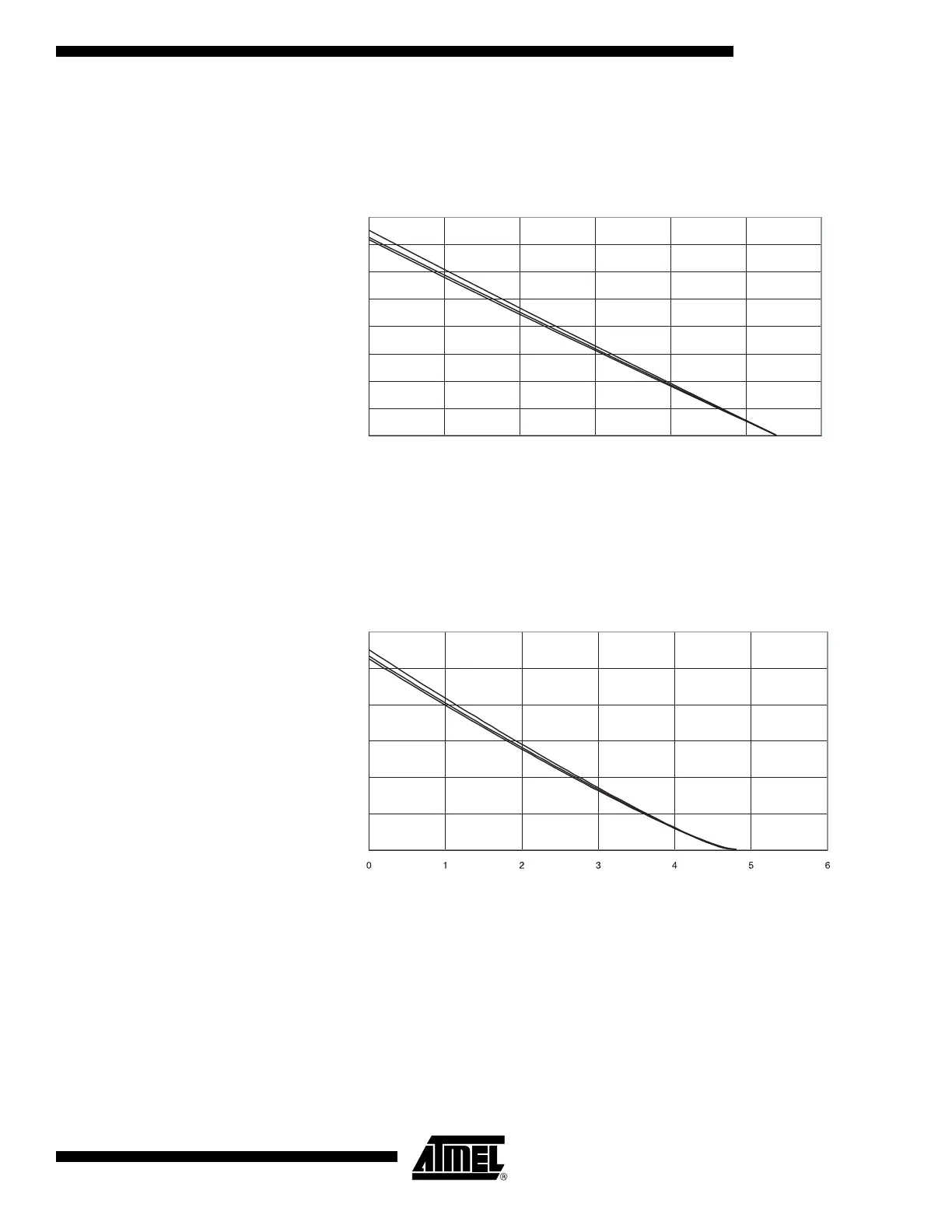

Figure 98. I/O Pin Pull-up Resistor Current vs. Input Voltage (V
CC
= 2.7V)
Figure 99. Reset Pull-up Resistor Current vs. Reset Pin Voltage (V
CC
= 5V)
I/O PIN PULL-UP RESISTOR CURRENT vs. INPUT VOLTAGE
Vcc = 2.7V
0
10
20
30
40
50
60
70
80
0 0.5 1 1.5 2 2.5 3
V
OP
(V)
I
OP
(uA)
85°C
25°C
-40°C
RESET PULL-UP RESISTOR CURRENT vs. RESET PIN VOLTAGE
Vcc = 5V
0
20
40
60
80
100
120
V
RESET
(V)
I
RESET
(uA)
-40°C
25°C
85°C
