AudioCodes MP-124 Fast Track Guide

MediaPack
Analog Fast Track Guide 12 Document #: LTRT-59805

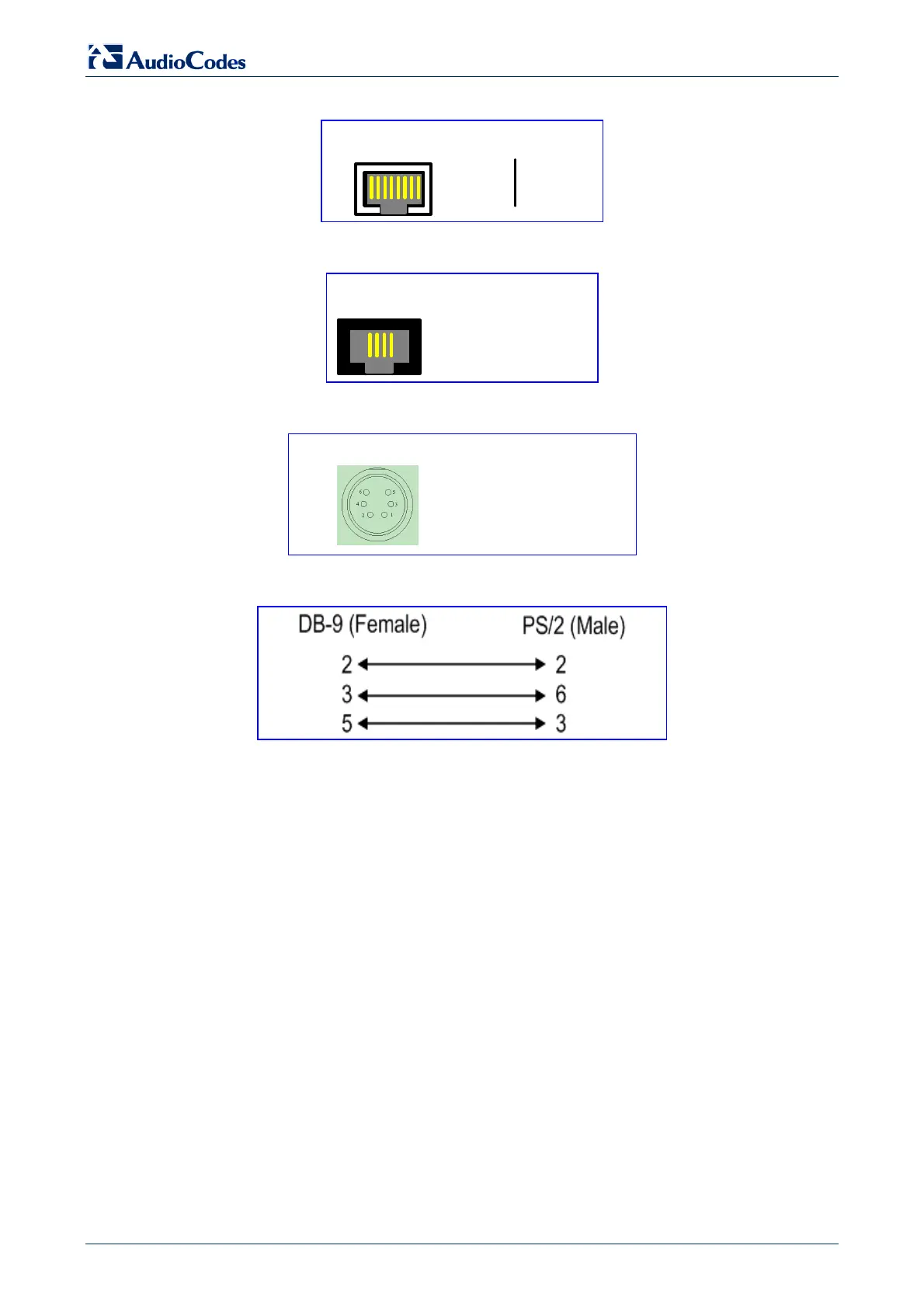

Figure 2-5: RJ-45 Ethernet Connector Pinouts
1 2 3 4 5 6 7 8
RJ-45 Connector and Pinout
4, 5, 7, 8
not
connected
1 - Tx+
2 - Tx-
3 - Rx+
6 - Rx-
Figure 2-6: RJ-11 Phone Connector Pinouts
1 2 3 4
1 -
2 -
3 -
4 -
Not connected
RJ-11 Connector and Pinout
Not connected
Tip
Ring
Figure 2-7: PS/2 Pinouts
2
3
6
PS/2 Female Connector and Pinout
(TD) - Transmit Data
(RD) - Receive Data
(GND) - Ground for Voltage
Figure 2-8: PS/2 to DB-9 Adaptor Pinouts
http://ArtTel.ru

AudioCodes MP-124 Specifications

General

Model	MP-124
Category	Gateway
Analog Ports	24 FXS
Ethernet Ports	2
Protocol Support	SIP, H.323
Fax Support	T.38, G.711 pass-through
Power Supply	100-240VAC, 50-60Hz
Operating Temperature	0°C to 40°C
Voice Codecs	G.711, G.729, G.723.1, G.726
Management	SNMP
Storage Temperature	-20°C to 70°C
Humidity	10% to 90%, non-condensing
Network Interface	10/100Base-T Ethernet
