Analog Fast Track Guide 2. Installing the MediaPack
Version 5.0 13 October 2006
2.2 Installing the MP-124
¾ To install the MP-124, take these 4 steps:
1. Unpack the MP-124 (refer to Section 2.2.1 below).
2. Check the package contents (refer to Section 2.2.2 below).
3. Mount the MP-124 (refer to Section 2.2.3 on page 13).
4. Cable the MP-124 (refer to Section 2.2.4 on page 15).
After connecting the MP-124 to the power source, the Ready and LAN LEDs on the front panel
turn to green (after a self-testing period of about one minute). Any malfunction changes the
Ready LED to red.
When you have completed the above relevant sections you are then ready to start configuring the
gateway (Section 3 on page 18).
2.2.1 Unpacking
¾ To unpack the MP-124, take these 6 steps:
1. Open the carton and remove packing materials.
2. Remove the MP-124 gateway from the carton.
3. Check that there is no equipment damage.
4. Check, retain and process any documents.
5. Notify AudioCodes or your local supplier of any damage or discrepancies.
6. Retain any diskettes or CDs.
2.2.2 Package Contents
Ensure that in addition to the MP-124, the package contains:
AC power cable.
2 short equal-length brackets and bracket-to-device screws for the 19-inch rack installation.
A CD with software and documentation may be included.
This MediaPack Fast Track Installation Guide.
2.2.3 Mounting the MP-124
The MP-124 can be mounted on a desktop or installed in a standard 19-inch rack. Refer to
Section 2.2.4 on page 15 for cabling the MP-124.
2.2.3.1 Mounting the MP-124 on a Desktop
No brackets are required. Simply place the MP-124 on the desktop in the position you require.

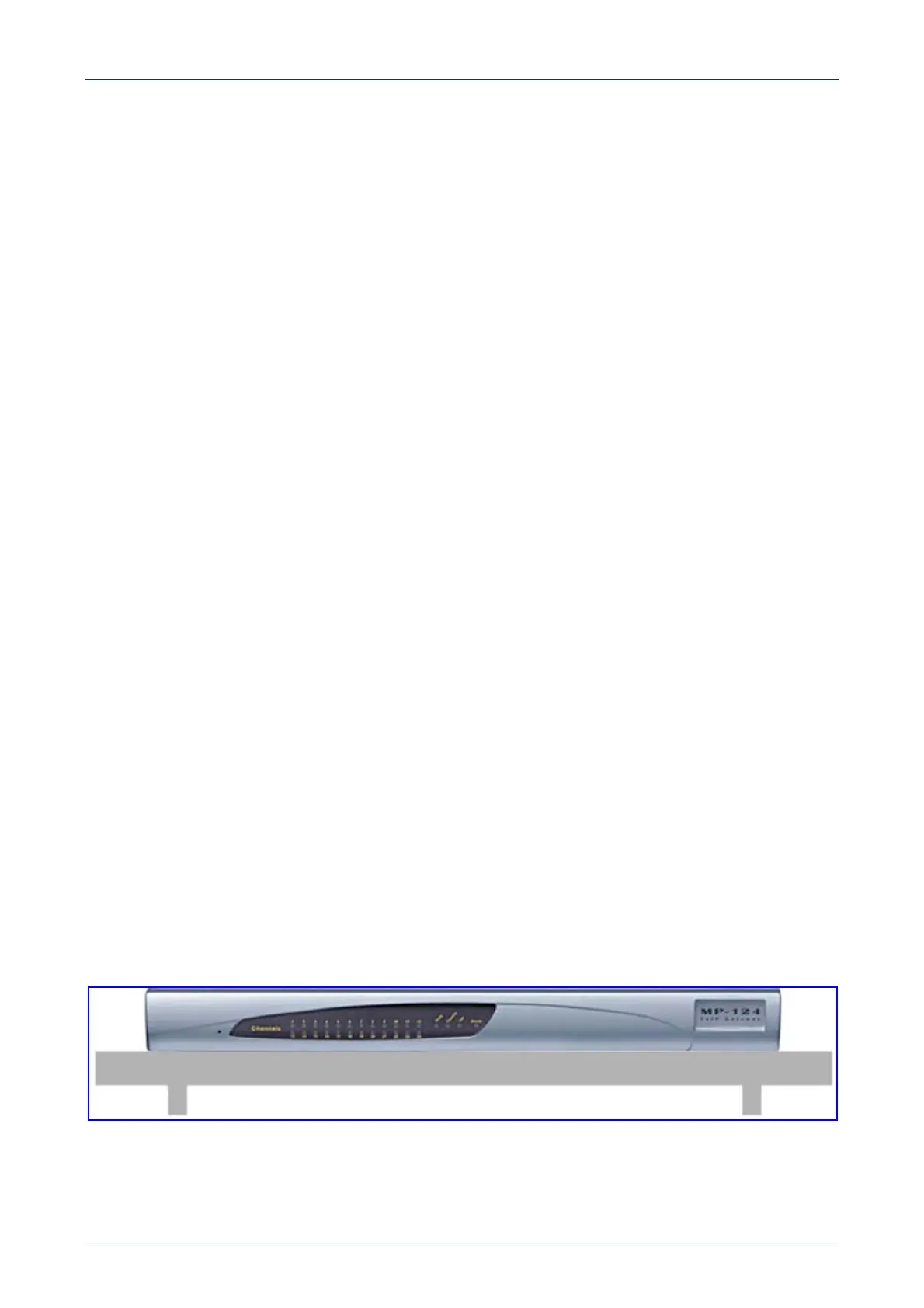

Figure 2-9: Desktop or Shelf Mounting
