Analog Fast Track Guide 2. Installing the MediaPack
Version 5.0 9 October 2006
2.1.3 19-inch Rack Installation Package
An additional option is available for installing the MP-11x in a 19-inch rack. The 19-inch rack
installation package contains a single shelf (shown in Figure 2-1 below) and eight shelf-to-device
screws.

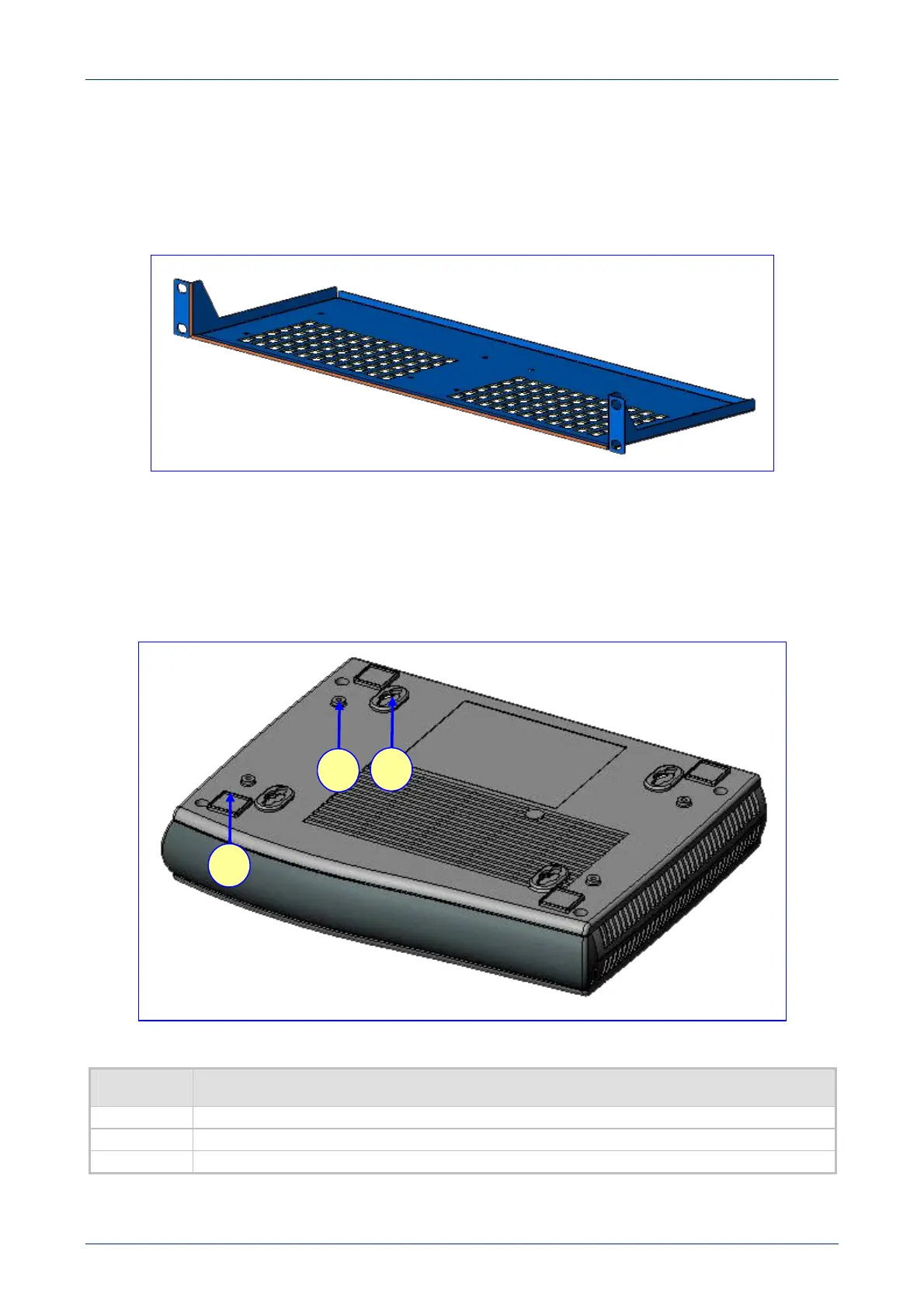

Figure 2-1: 19-inch Rack Shelf
2.1.4 Mounting the MP-11x
The MP-11x can be mounted on a desktop (refer to Section 2.1.4.1 below), on a wall (refer to
Section 2.1.4.2) or installed in a standard 19-inch rack (refer to Section 2.1.4.3).
Figure 2-2 below describes the MP-11x base.
Figure 2-2: Underside of MP-11x Showing Parts for Wall and Desktop Mounting
Table 2-1: View of the MP-11x Base
Item # Functionality
1 Square slot used to attach anti-slide bumpers (for desktop mounting)
2 Oval notch used to attach the MP-11x to a wall
3 Screw opening used to attach the MP-11x to a 19-inch shelf rack
1
3
2
