Analog Fast Track Guide 6. Monitoring the MediaPack
Version 5.0 33 October 2006
Table 6-2: Description of MP-124 Front Panel LED Indicators
Label Type Color State Function
Offhook / Ringing for FXS Phone Port
Green ON
FXO Line-Seize/Ringing State for Line Port
Green Blinking
There’s an incoming call, before answering
Red ON
Line Malfunction
Channels
Telephone
Interface
Blank -
Normal
6.2 Monitoring the MediaPack Channels
¾ To monitor the status of the channels:
Open the 'Channel Status' screen by clicking the Home button ; the Channel Status
screen is displayed.

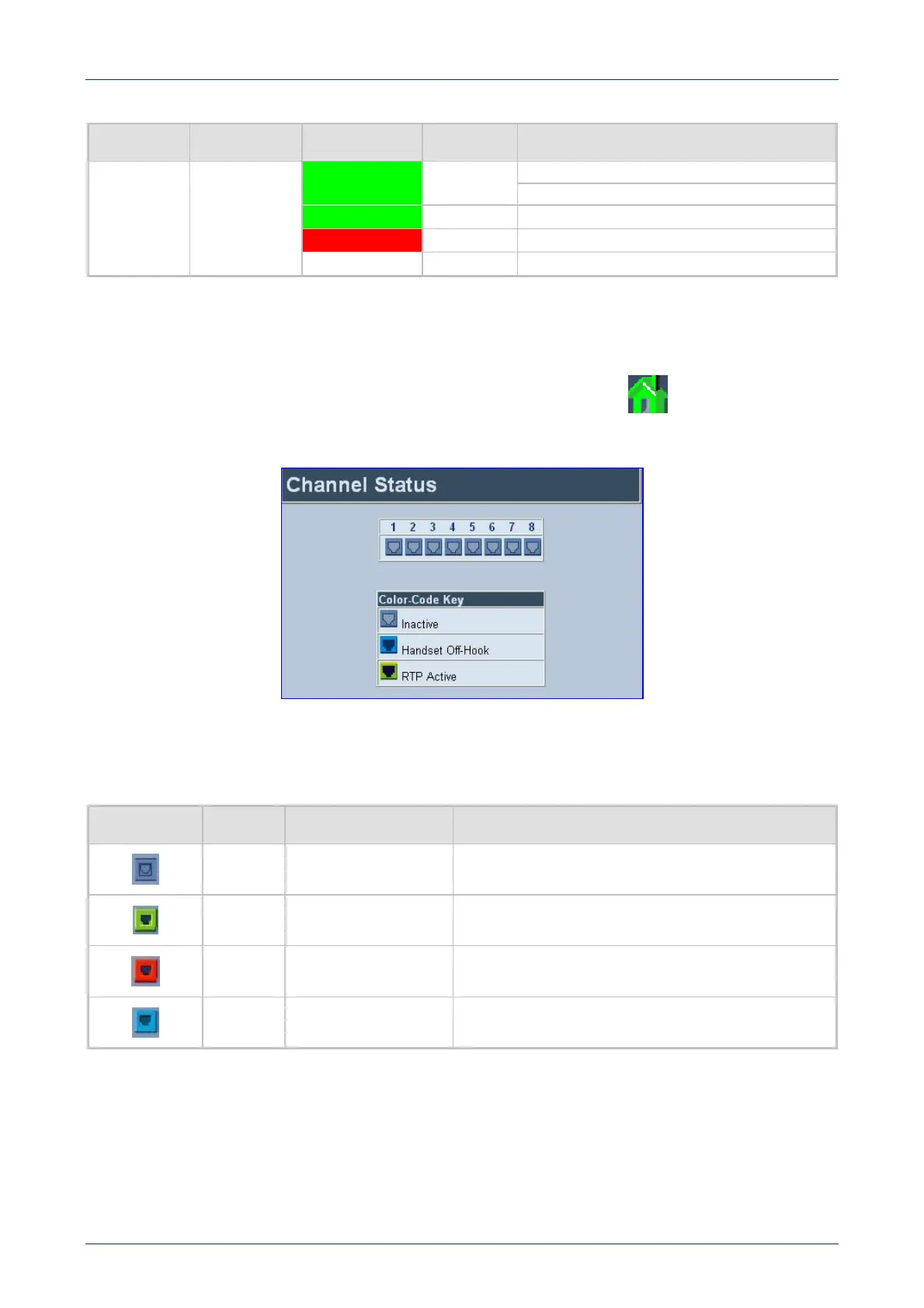

Figure 6-1: MediaPack/FXS Channel Status Screen
The color of each channel shows the call status of that channel. Refer to Table 6-3 below for
information on the different statuses a call can have.
Table 6-3: Channel Status Color Indicators
Indicator Color Label Description
Gray Inactive
Indicates this channel is currently onhook
Lime Green RTP Active
Indicates an active RTP stream.
Red Not Connected (FXO only)
Indicates that no analog line is connected to this port.
Blue Handset Offhook
Indicates this channel is offhook, but there is no active RTP
session.
¾ To monitor the details of a channel, take these 3 steps:
1. In the 'Channel Status' screen, double-click the numbered icon of the specific channel whose
detailed status you need to monitor; a shortcut menu appears.
2. From the shortcut menu, choose Port Settings; channel-specific Channel Status screen
appears.
3. Click the submenu links to view a specific channel’s parameter settings.
