AUTOFLAME Mk8 MM Installation And Commissioning Guide

5 Bottom Blowdown
04.09.2016 Mk8 MM Expansion Features Installation and Set-Up Guide Page 93
5.4.2 Setting Servomotor
When the bottom blowdown module is first enabled, the red and greed LEDs will flash on the modulate
indicating a fault; there is fault because the module has not seen the servomotor go to the closed
position yet. The warning ‘Bottom Blowdown Servo Not Commissioned’ will appear. The servomotor
closed position can be set in password protected Commissioning mode or Online Changes.

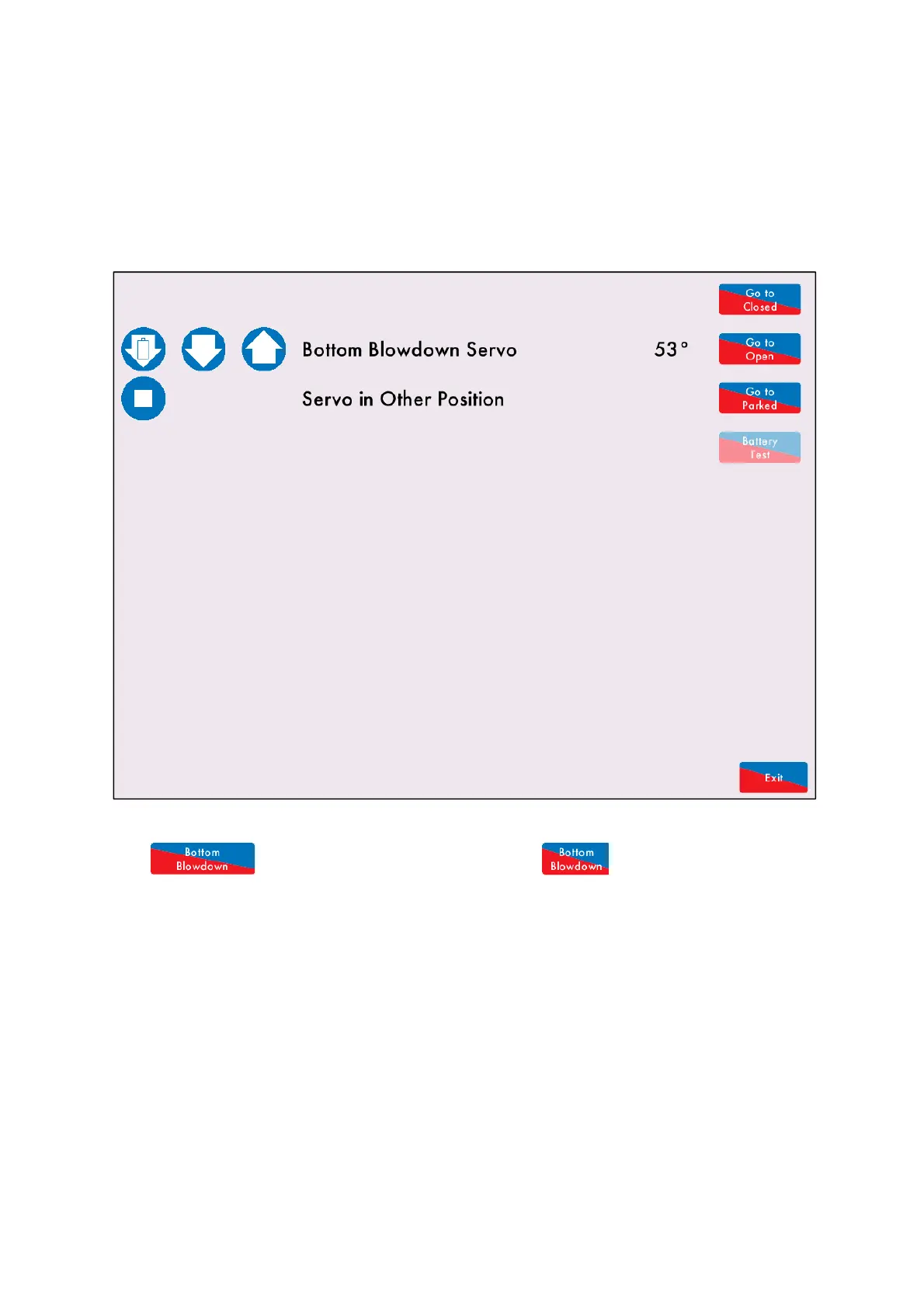

Figure 5.4.2.i Servo in Other Position
Press in the Commission Mode screen or press in Online Changes and enter
the password.
The screen will show the current bottom blowdown servomotor angle. If the servomotor is not at the
closed position, the message ‘Servo in Other Position’ will appear.
