AUTOFLAME Mk8 MM Installation And Commissioning Guide

3 Water Level Control
04.09.2016 Mk8 MM Expansion Features Installation and Set-Up Guide Page 57
3.8.4 Setting 2
nd
Low Level

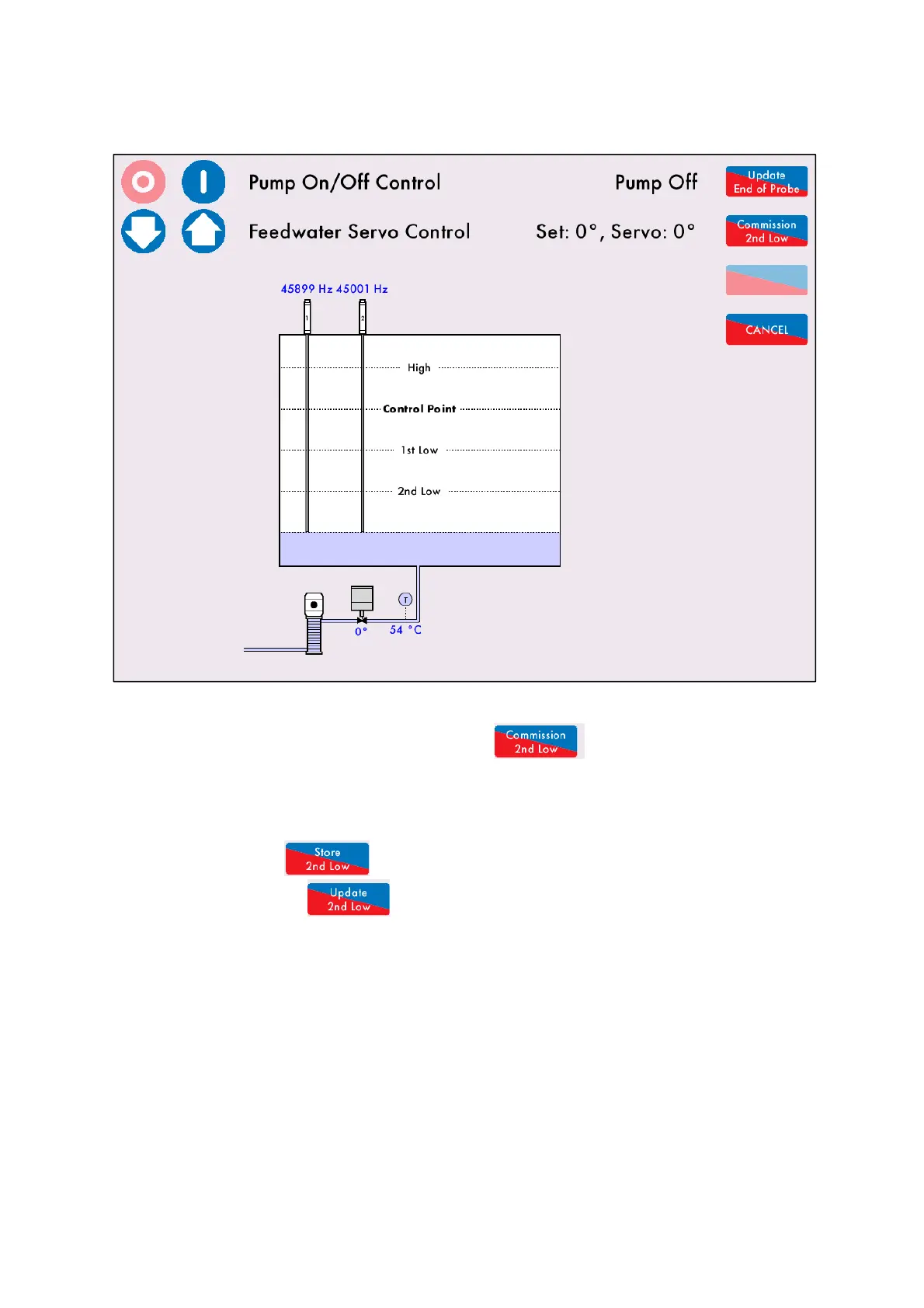

Figure 3.8.4.i Commission 2
nd
Low Level
After storing or updating the end of probe level, press to increase the water level to the
2
nd
low level. It is recommended that there is a 25mm (1”) gap between the commissioned levels, which
is approximately 500Hz.
Once the water has risen to the required 2
nd
low level, turn the pump off and close the valve. Let the
readings settle and press . If required, the 2
nd
low level can be updated by then adjusting
the water level and pressing once the position has been stored.
