3 Water Level Control
Page 56
Mk8 MM Expansion Features Installation and Set-Up Guide
04.09.2016

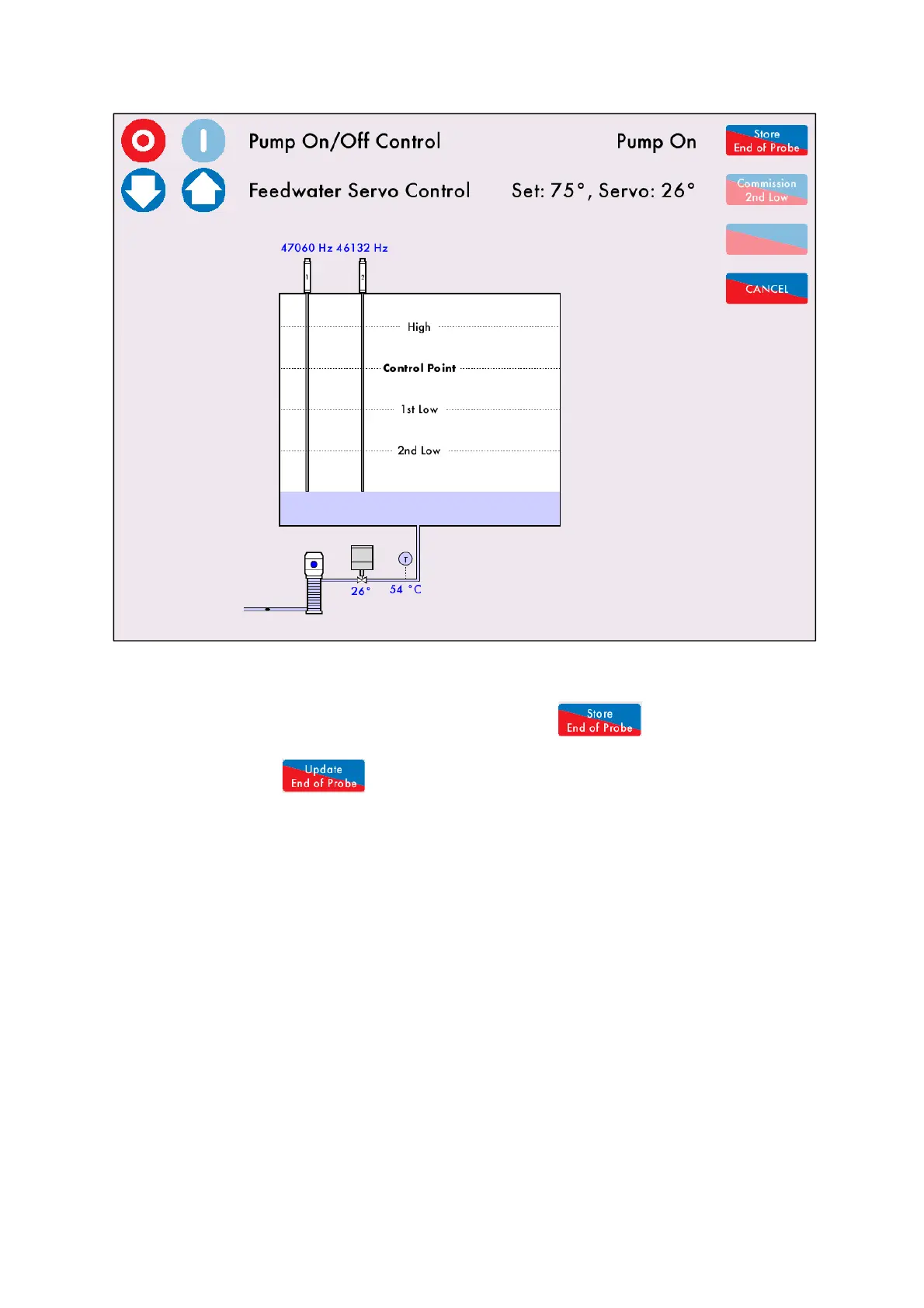

Figure 3.8.3.ii Store of End of Probe Level
Close the feedwater valve and turn the pump off on
ce the desired level is rea
ched for the end of
probe. Allow some time for
the readings to sett
le and then press
to store these readings.
Once the level has been entered, it is possible to
update the commissioned readings by adjusting the
water level and pressing
.
65
67
