AUTOFLAME Mk8 MM Installation And Commissioning Guide

6 Draught Control
Page 102 Mk8 MM Expansion Features Installation and Set-Up Guide 04.09.2016

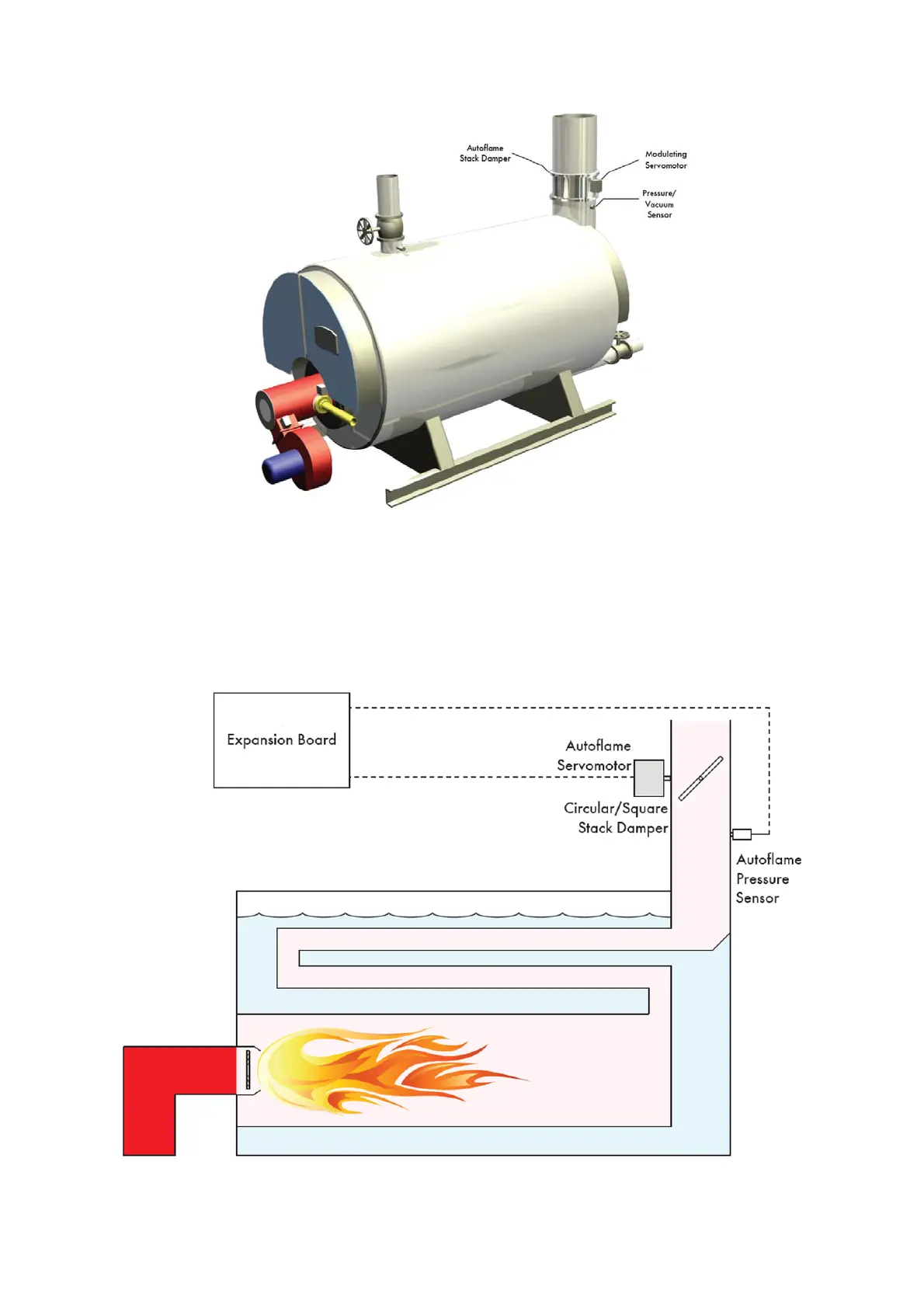

Figure 6.1.2.ii Autoflame Draught Control
After commissioning is completed, every fuel and air position will have a stack damper position
together with a stored draft pressure. The stack pressure is controlled by air pressure sensor, stack
damper and PI loop. When the system is in run mode the stack damper will be positioned according to
the stored commissioning pressure. If the stack pressure reading measured by the differential air
pressure sensor reads a different condition to the stored value, then the stack damper butterfly valve
will be adjusted to ensure that the stack pressure is brought back to its commissioned value.
Figure 6.1.2.iii Draught Control Schematic
