AUTOFLAME MK8 User Manual

2
Options & Parameters
Flame Safeguard (MM80001/FSG) Manual
Page | 39
Opt. #
Default
Range
Description
1
0
MM: Boiler Temperature/Pressure Sensor Type
0
Temperature
MM10006
1
Low pressure
MM10010
2
Medium pressure
MM10008
3
High pressure
MM10009
4
Extra high pressure
MM10017
5
External temperature (voltage input, range set by parameters 52 to 56)
6
External pressure (voltage input, range set by parameters 52 to 56)
Note: External load detector wiring low voltage to terminal 37 and high
voltage to terminal 38.
2
15
MM: Modulating Motor Travel Speed Limit
6 – 100
If the modulating speed of the motor is too fast, then decrease the value,
and vice versa. At times other than modulation, the motors move at full
speed or at the value set in option 75. Movement is limited by the
slowest channel i.e. the slowest moving motor.
0.6 – 10.0
3
0
MM: Return to Curve Mode
0
1
Controls how quickly the MM moves from off-curve positions (Golden Start,
FGR) to the firing curve.
Return to curve at purge speed.
Return to curve at modulating speed.
4
0
MM: Flame Safeguard Mode
0
1
Once Enabled the MK8 MM, operates as a simple Flame Safeguard.
Option/parameter 154 (T80) Start Position Interlock & option/parameter 155
(T81) Purge Position Interlock must be used.
Disabled
Enabled
5
1
MM: Purge Position
This purge position applies to channels 1-4 as selected in options 67-70,
however VSD channels will always purge at open position as default. This
setting applies for post-purge if set, see option/ parameter 118 and 135.
0
Channels 1 to 4 purge at HIGH position.
1
Channels 1 to 4 purge at OPEN position.
6
10

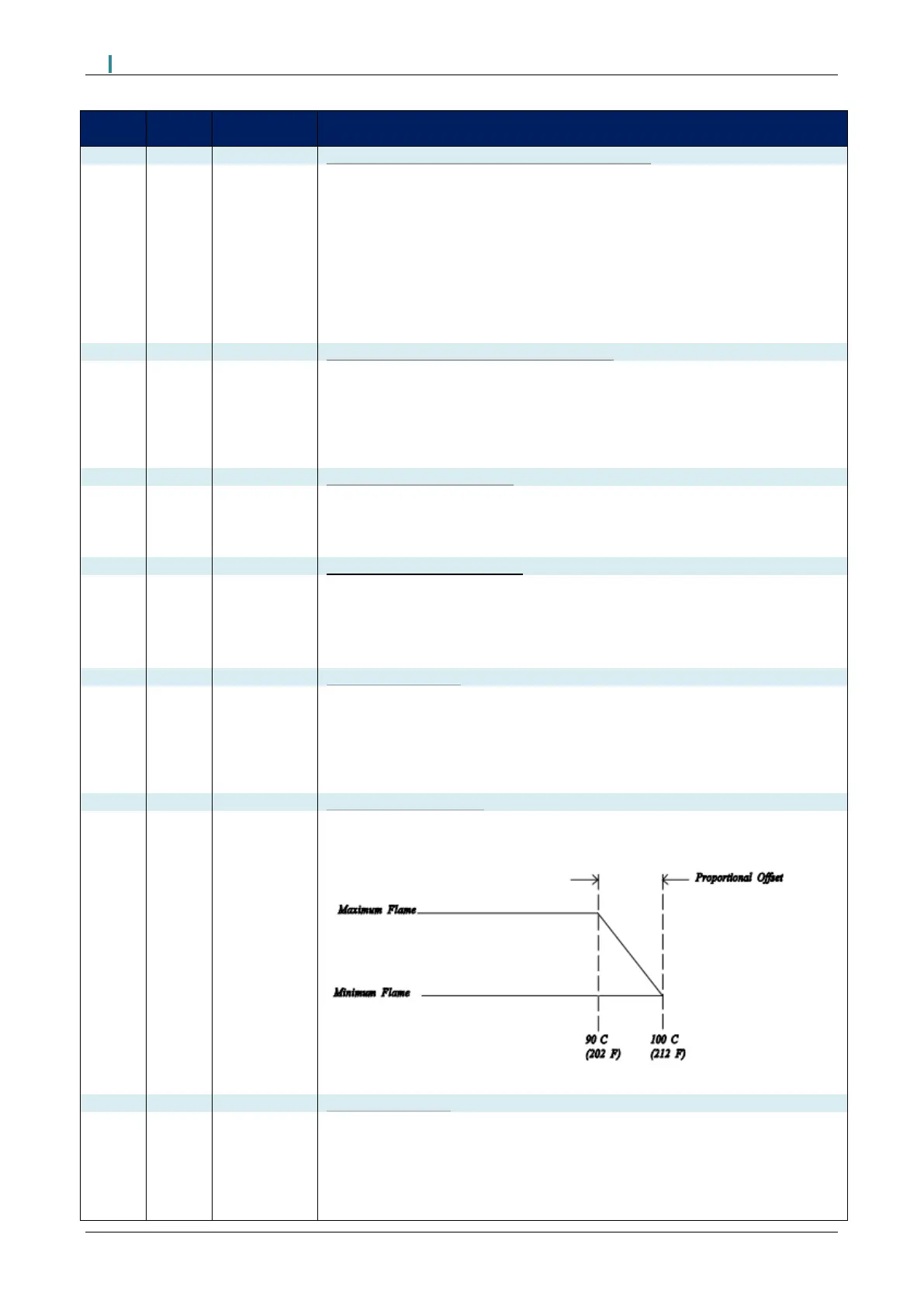

PID: Proportional Band
5 - 2000
The proportional band is an offset below the required setpoint; when the
actual temperature/ pressure reaches this band, the burner will begin to
modulate as it approaches the required setpoint.
O
C,
O
F, PSI or 0.1 bar or 0.01 bar for low pressure sensor (depends on
load detector set in option 1 and metric/imperial units set in parameter 40)
7
60
PID: Integral Time
Every ‘n’ seconds, 10% of the present offset from the required setpoint is
added or subtracted when below or above the setpoint, respectively, to the
present proportional value. The value of ‘n’ is the number of seconds set in
this option; if set to 0, there will be no integral control.
0
1 - 250
Disabled
Seconds
