AUTOFLAME FLAME SAFEGUARD OVERVIEW, SPECIFICATIONS AND
WIRING
1.1 Autoflame Flame Safeguard Overview

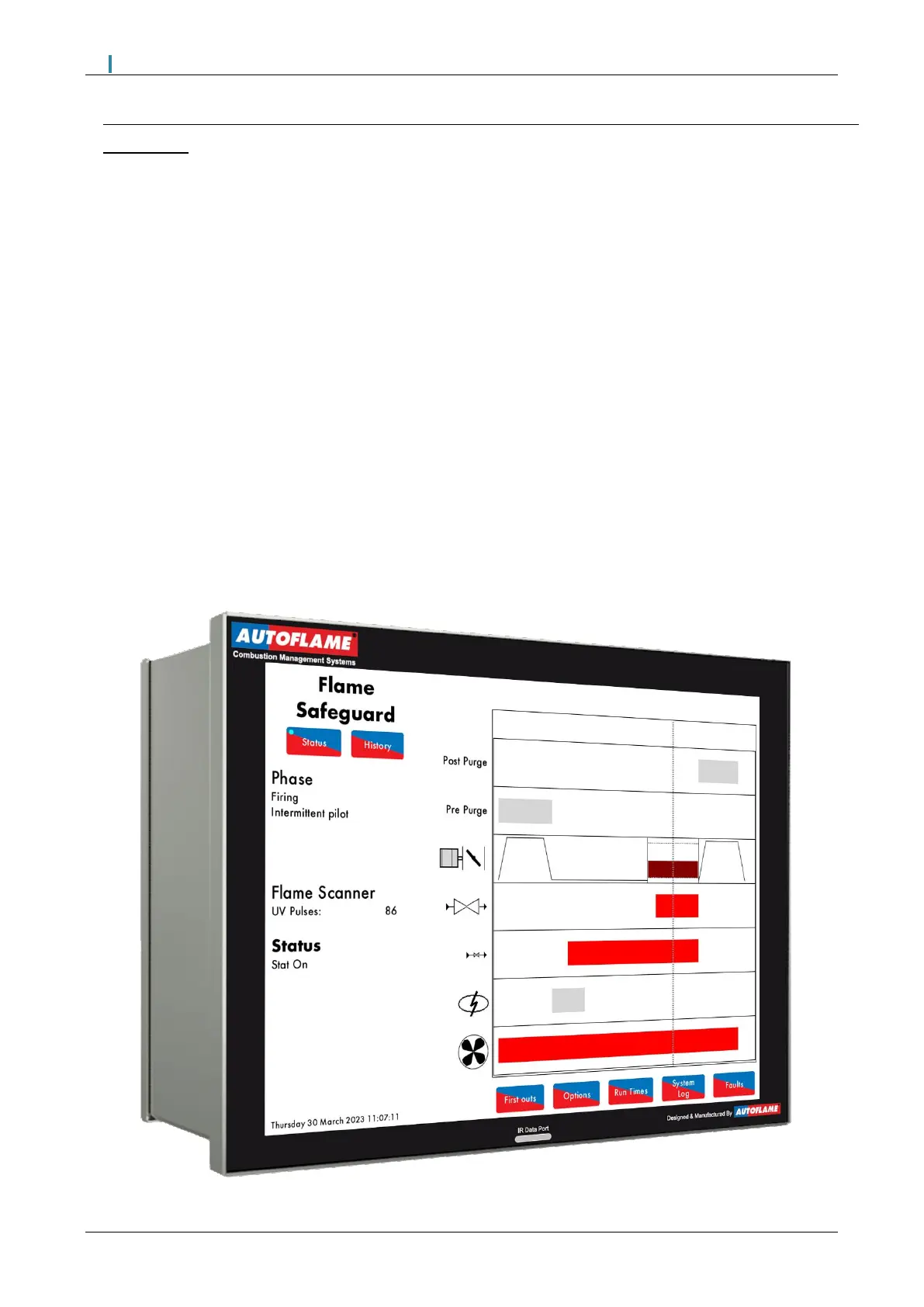

The Autoflame Flame Safeguard unit or MM80001/FSG is a version of the Micro-Modulating system that provides
an easily programmable and flexible means of providing the flame safeguard aspects of controlling a
boiler/burner.
This control module encompasses all the functions required for reliable flame safeguard management. Built into
this system is a fully automated flame safeguard, valve proving system and a 12.1” multi-touch screen interface.
MODBUS (MK8006) connectivity & First Outs (MK8007) requires unlock codes to use these features.
With the Mk8 MM, it is possible to control all boiler processes from a single 12.1” multi-touch screen interface
without any added module.
This system monitors the flame safeguard, as it checks on the flame of the burner from the use of a UV, Flame
Switch, or IR Scanner.
Additional expansion features include:
• Direct Modbus connectivity
• First out annunciation
